Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Dash & Center Console

Courtesy of NISSAN MOTOR CO., U.S.A.

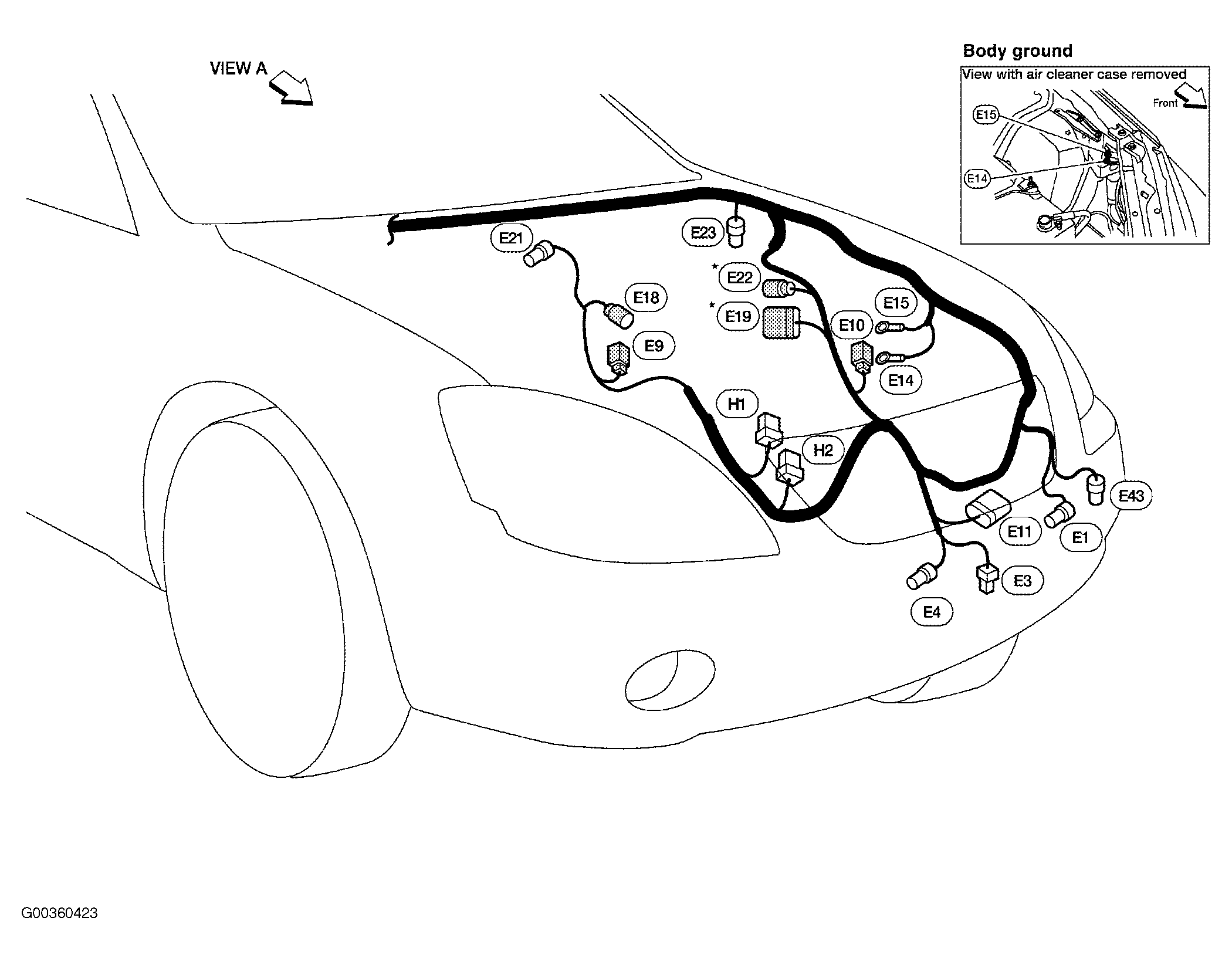

Fig 3: Left Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Left Side Of Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Right Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Engine & Right End Of Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

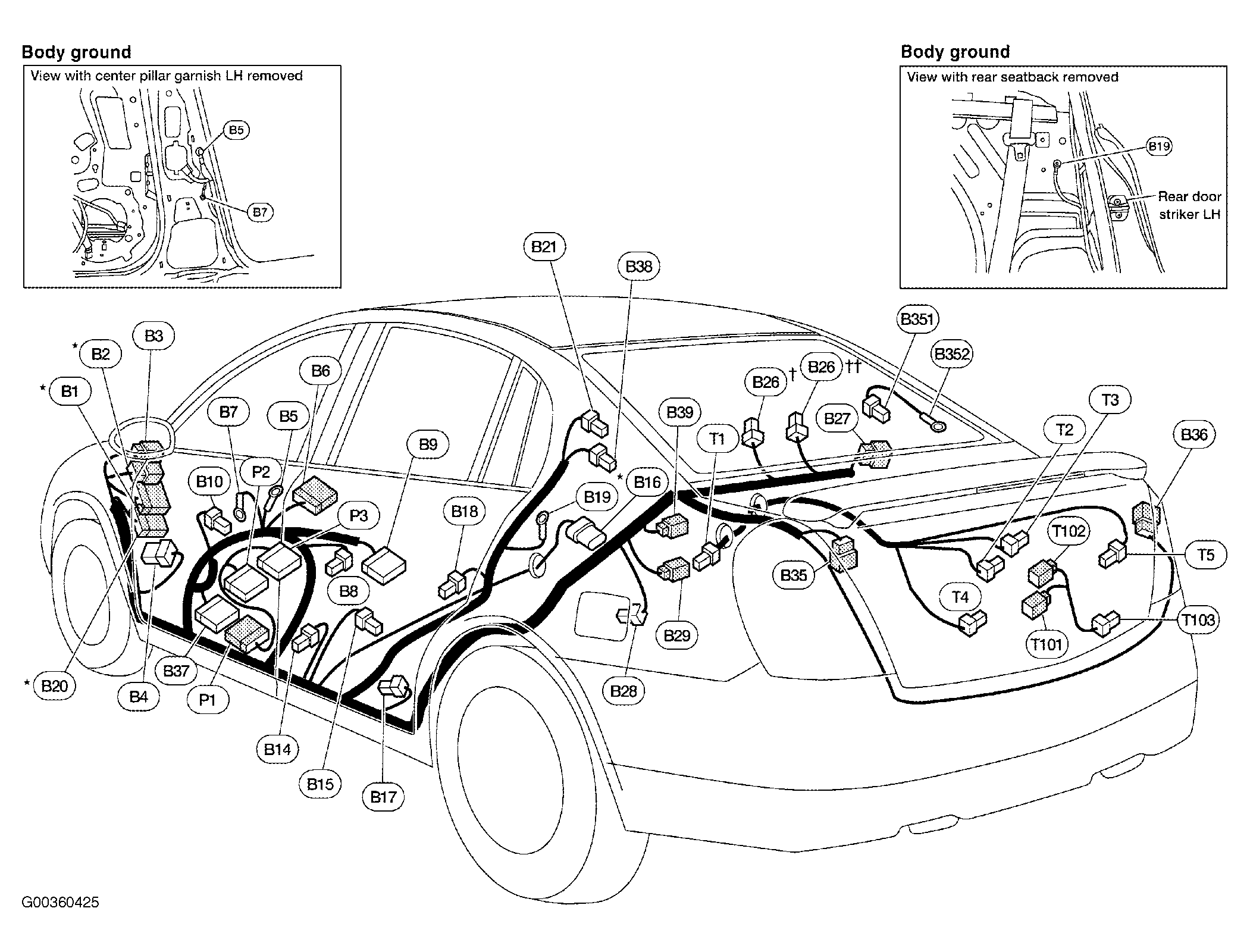

Fig 7: Left Side Of Body & Luggage Compartment Lid Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

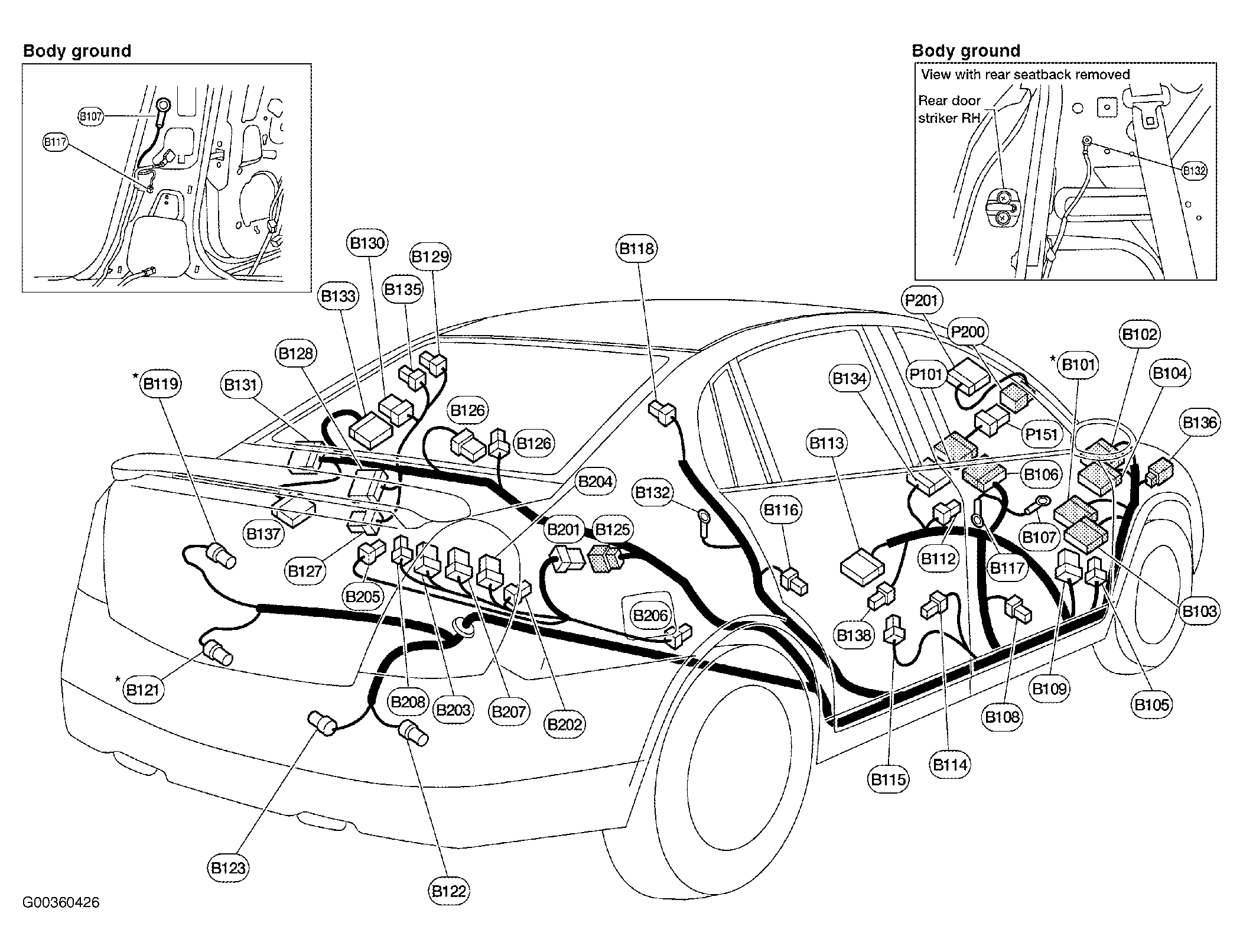

Fig 8: Right Side Of Body & Luggage Compartment Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Roof

Courtesy of NISSAN MOTOR CO., U.S.A.

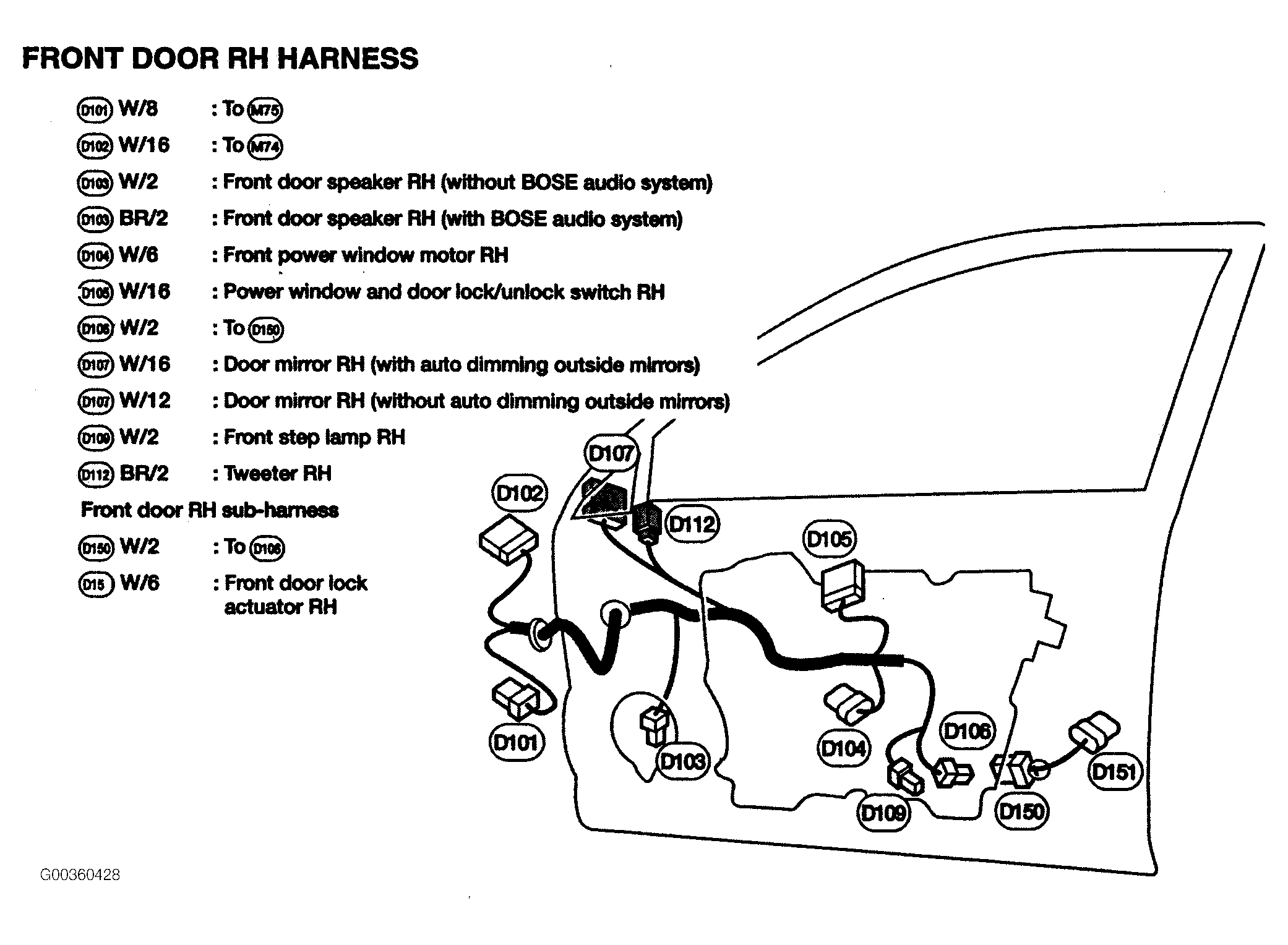

Fig 10: Right Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Right Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

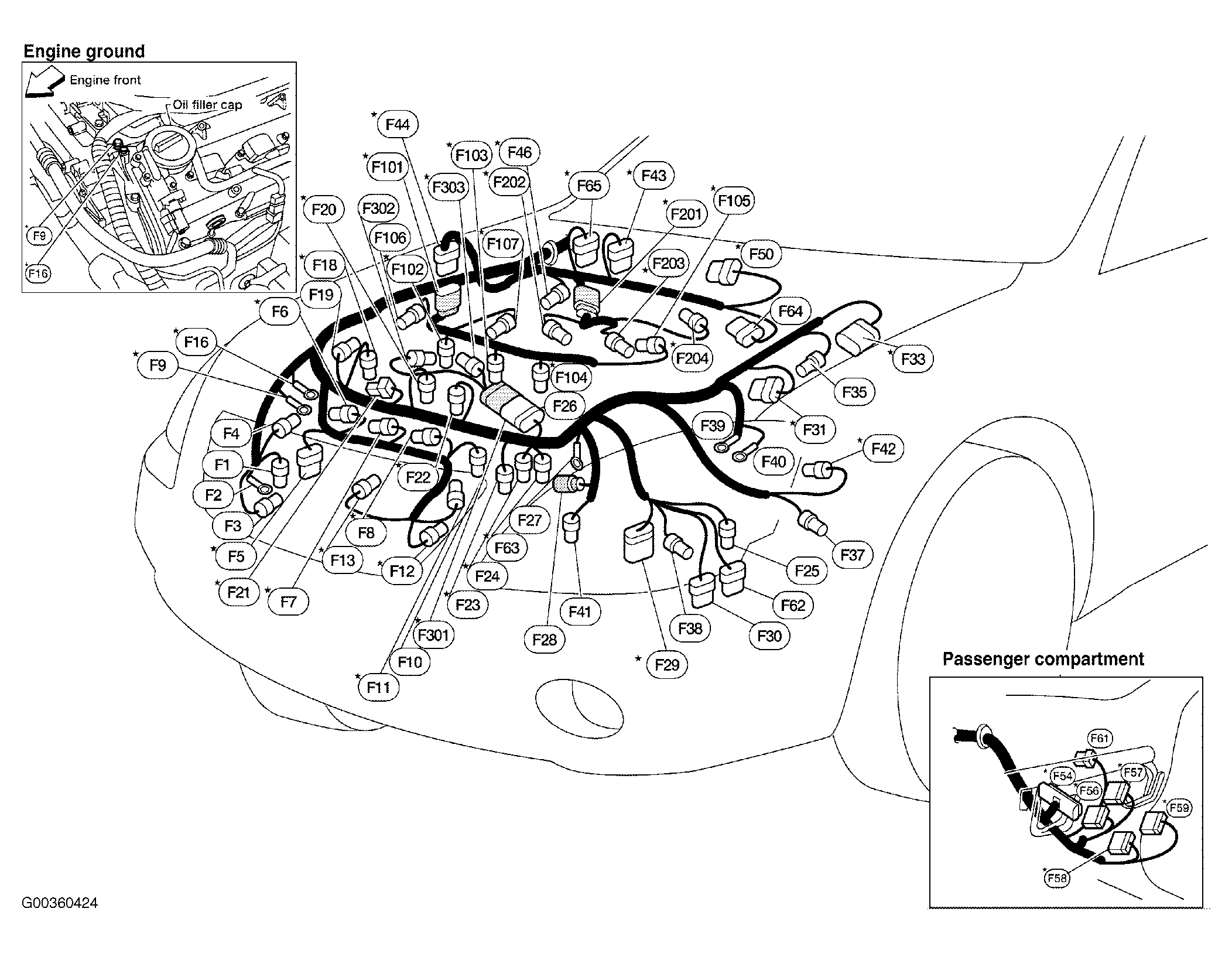

Fig 12: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Dash Views (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Dash Views (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

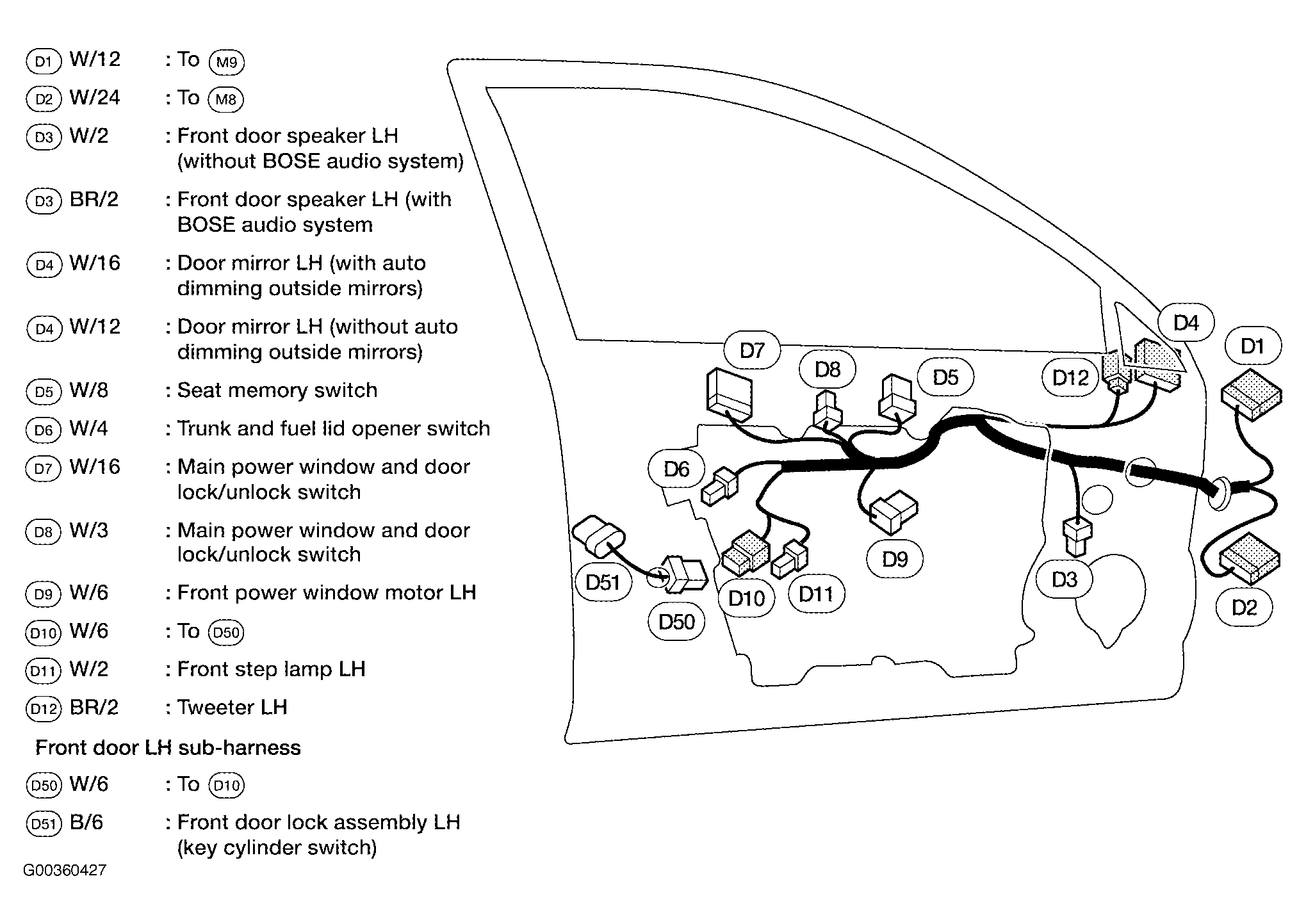

Fig 15: Left Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Left Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.
