CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

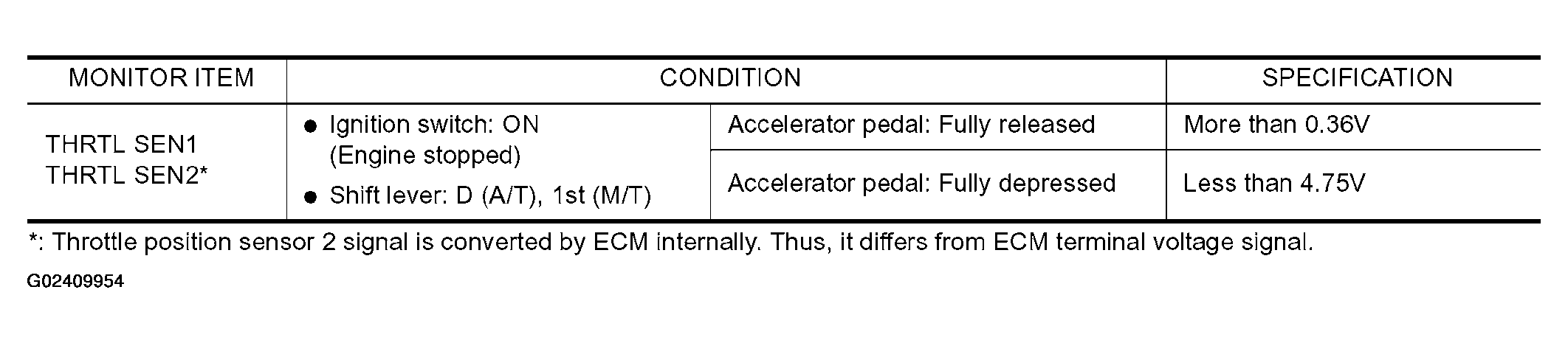

Fig 1: Data Monitor Mode CONSULT-II Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

^* : Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
