With CONSULT-II

Start engine and warm it up to the normal operating temperature.
Turn ignition switch OFF and wait at least 10 seconds.
Start engine and keep the engine speed between 3, 500 and 4, 000 RPM for at least 1 minute under no load.
Let engine idle for 1 minute.
Select "FUEL INJECTION" in, "ACTIVE TEST" mode, and select "HO2S2 (B1)/(B2)" as the monitor item with CONSULT-II.

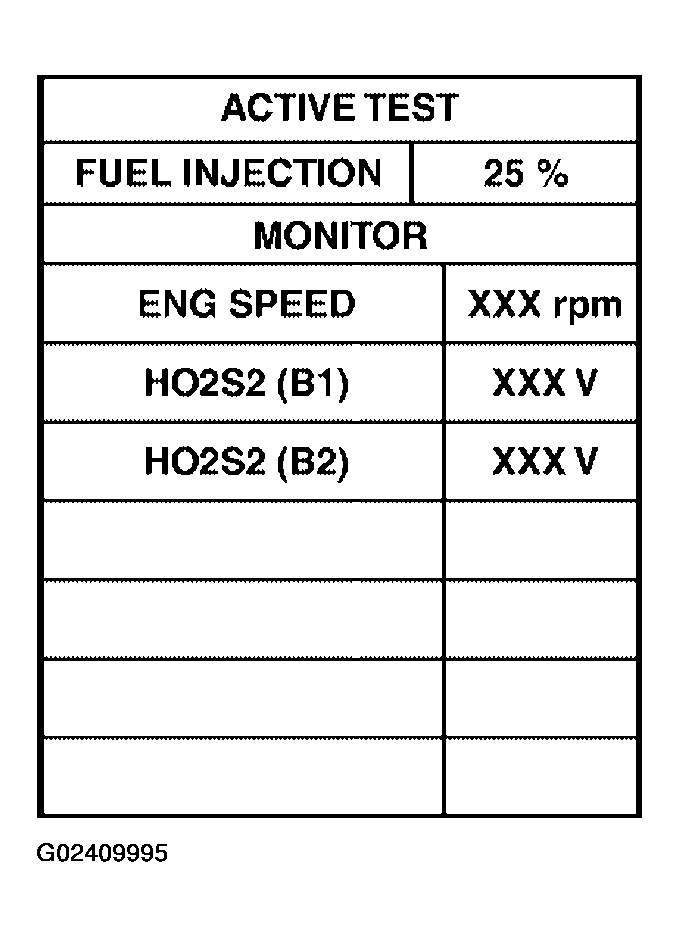

Fig 1: Active Test Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Check "HO2S2 (B1)/(B2)" at idle speed when adjusting "FUEL INJECTION" to +/- 25%.
"HO2S2 (B1)/(B2)" should be above 0.78 V at least once when the "FUEL INJECTION" is +25%.

"HO2S2 (B1)/(B2)" should be below 0.18 V at least once when the "FUEL INJECTION" is -25%.

Fig 2: Checking HO2S2 At Idle Speed When Adjusting Fuel Injection Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace heated oxygen sensor 2.
CAUTION:
- Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
