Stop Lamp Switch

Disconnect stop lamp switch harness connector.

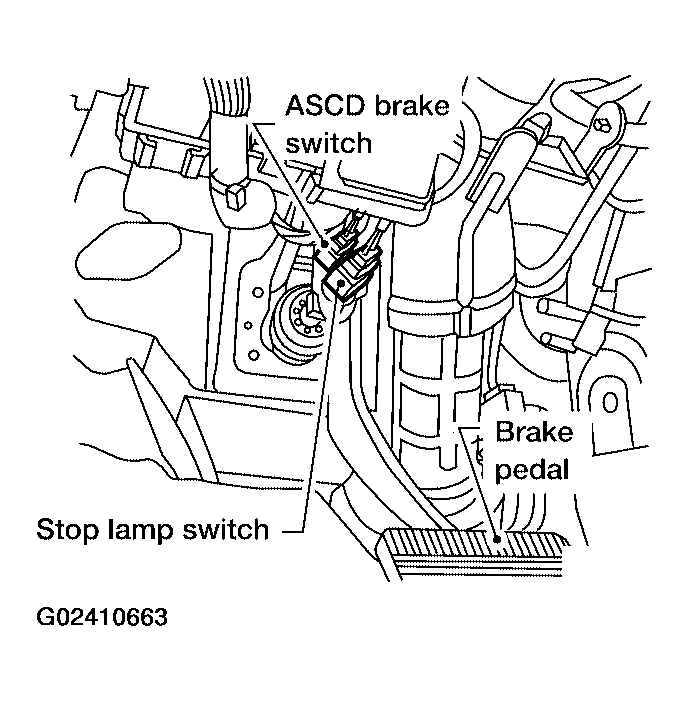

Fig 1: Disconnecting Stop Lamp Switch Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

STOP LAMP SWITCH CONTINUITY

Conditions	Continuity
Brake pedal: Fully released	Should not exist.
Brake pedal: Depressed	Should exist.

If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL and perform step 2 again.

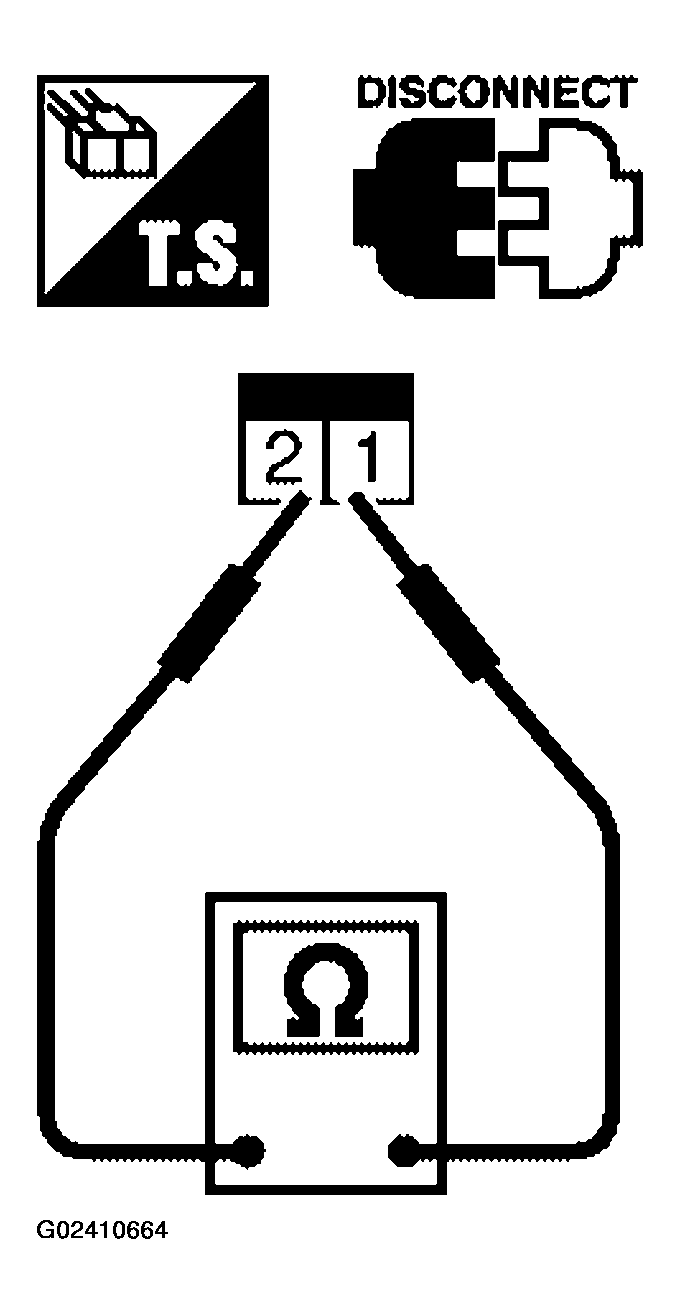

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 & 2
Courtesy of NISSAN MOTOR CO., U.S.A.
