Wiring Diagram - IGNSYS

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

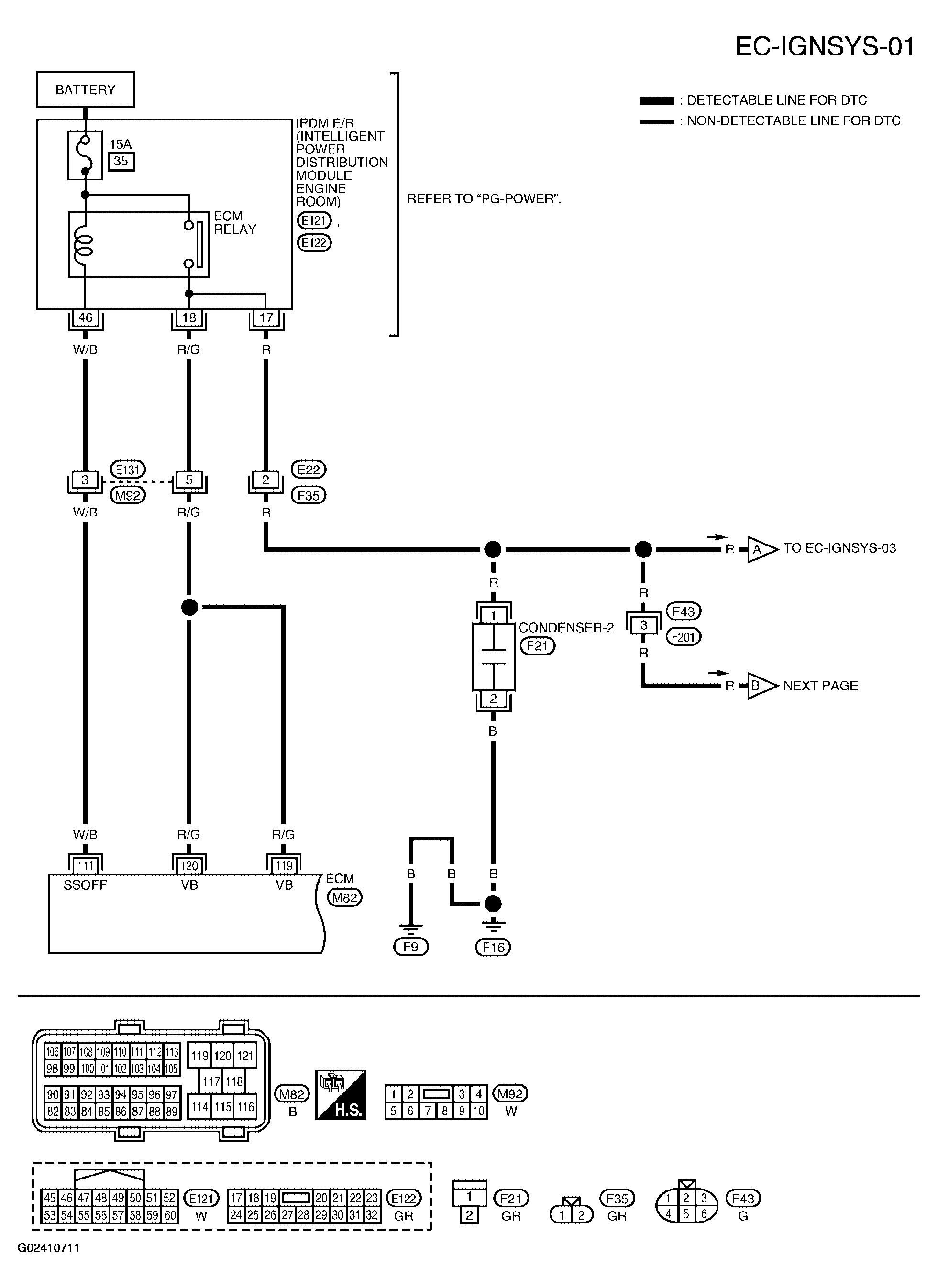

Fig 1: Wiring Diagram - (EC-IGNSYS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

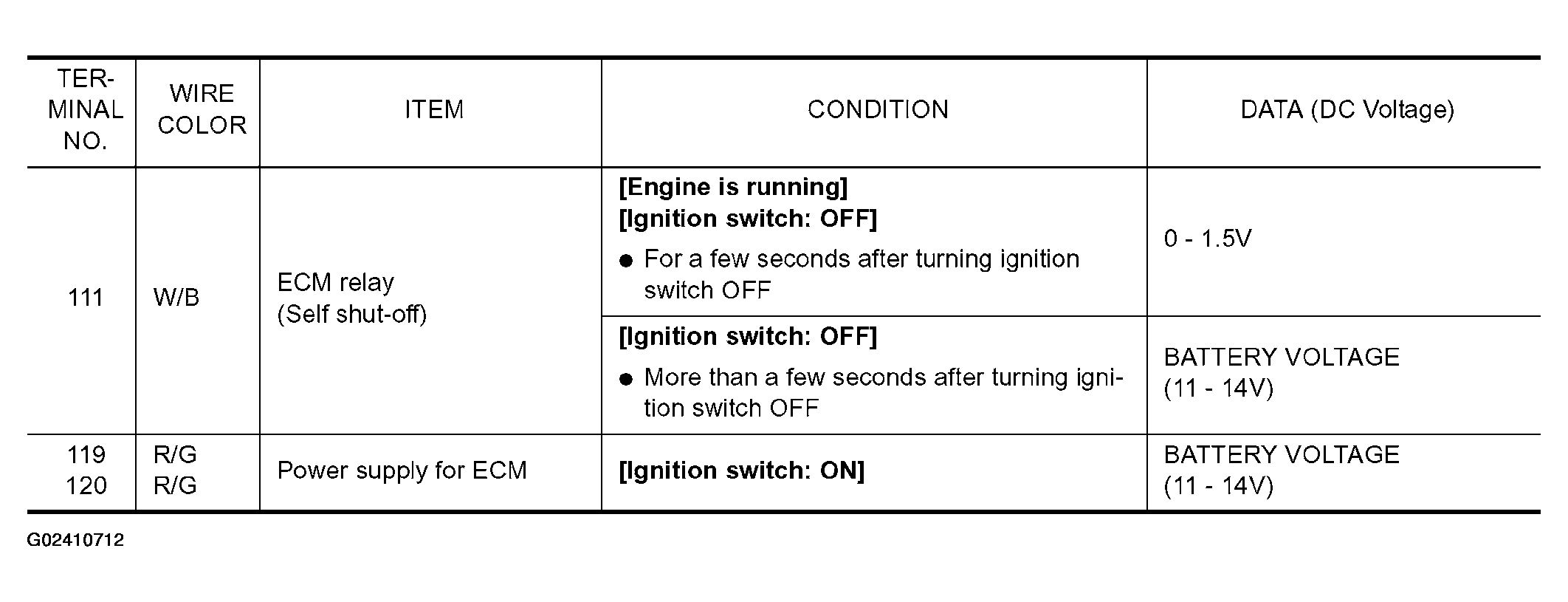

Fig 2: ECM Terminal & Ground Specification Data & Reference Value Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

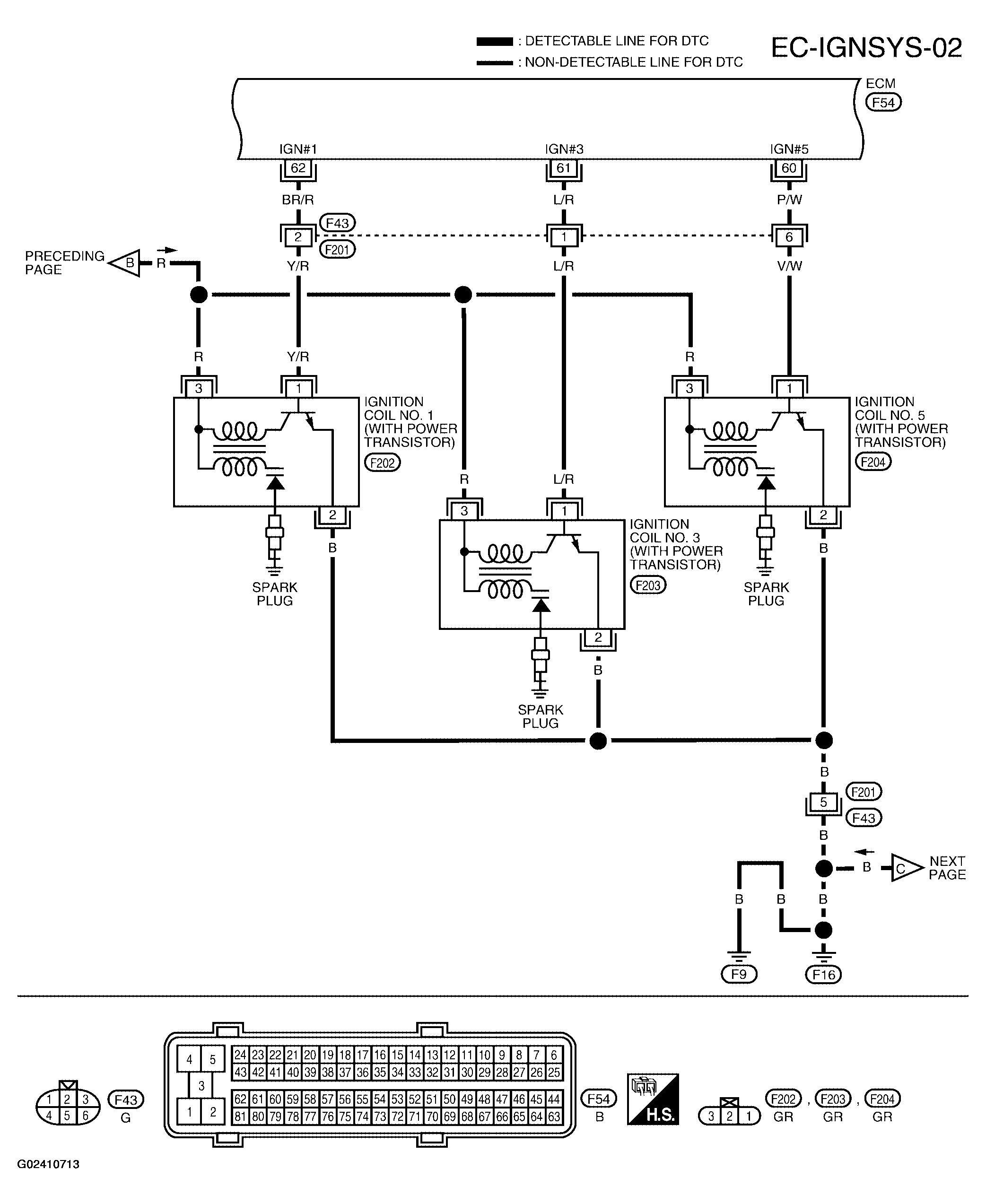

Fig 3: Wiring Diagram - (EC-IGNSYS-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

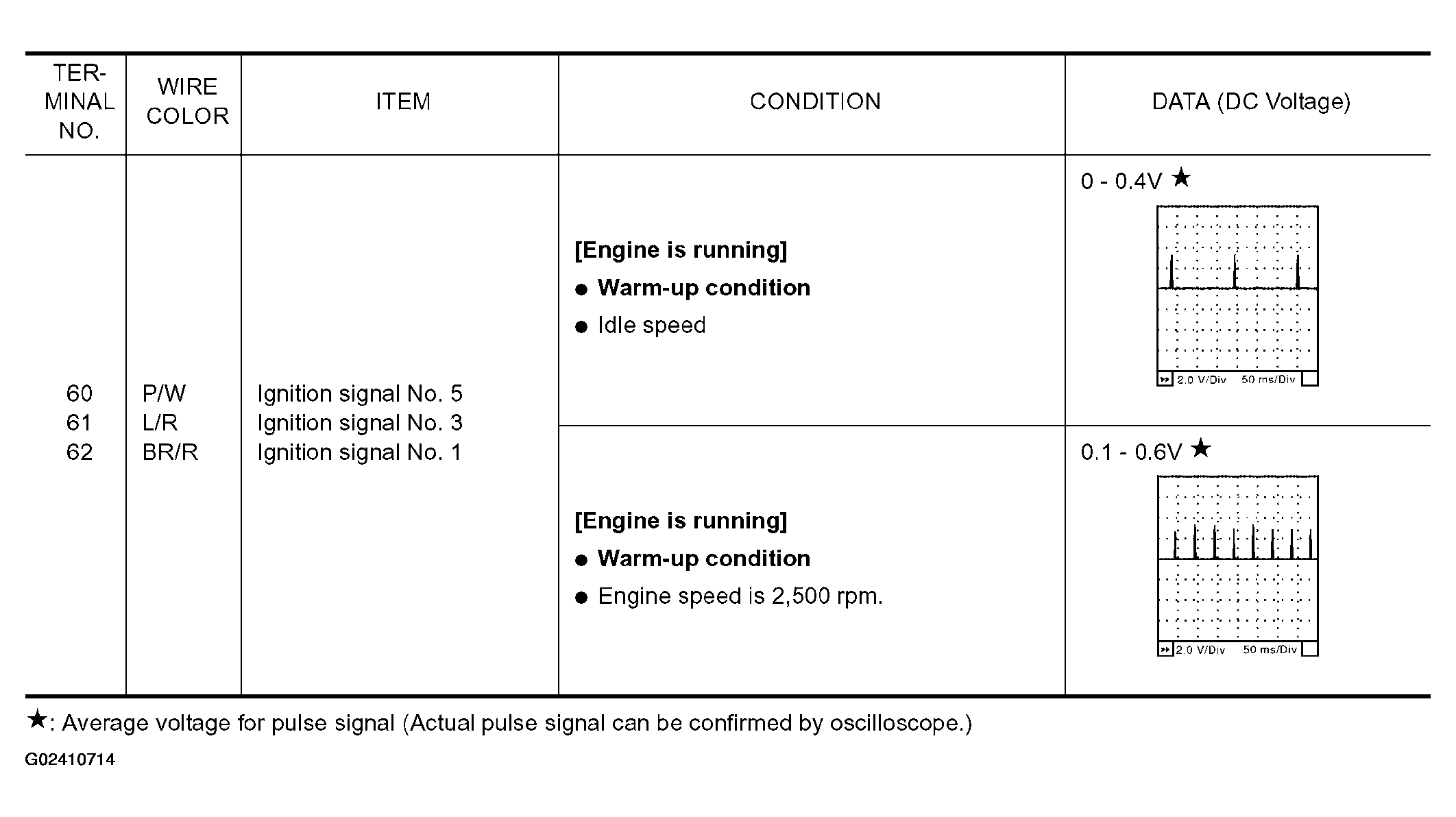

Fig 4: ECM Terminal & Ground Specification Data & Reference Value Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

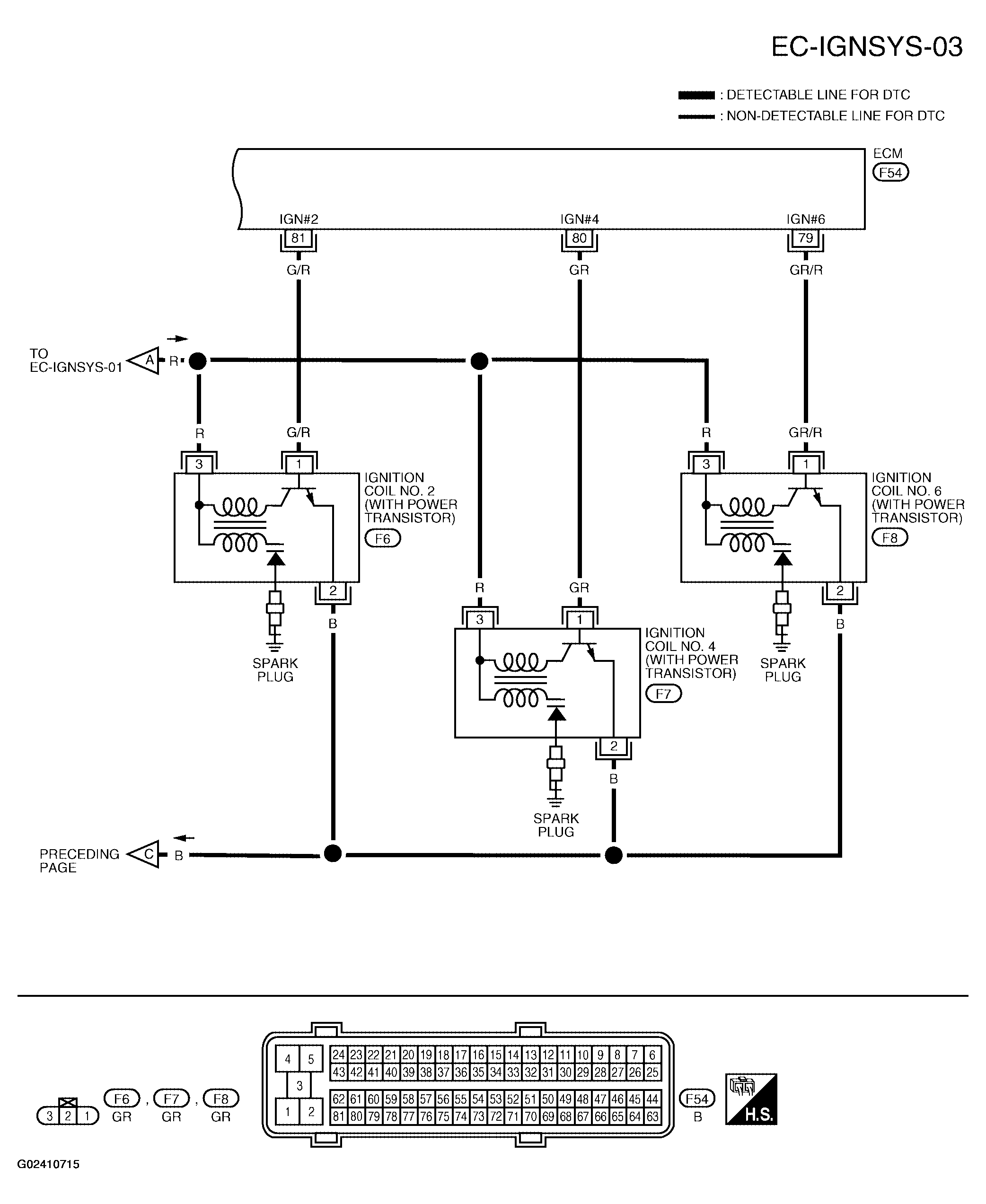

Fig 5: Wiring Diagram - (EC-IGNSYS-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Fig 6: ECM Terminal & Ground Specification Data & Reference Value Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
