DIAGNOSTIC TROUBLE CODES No. Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1001 CAN COMMUNICATION LINE .

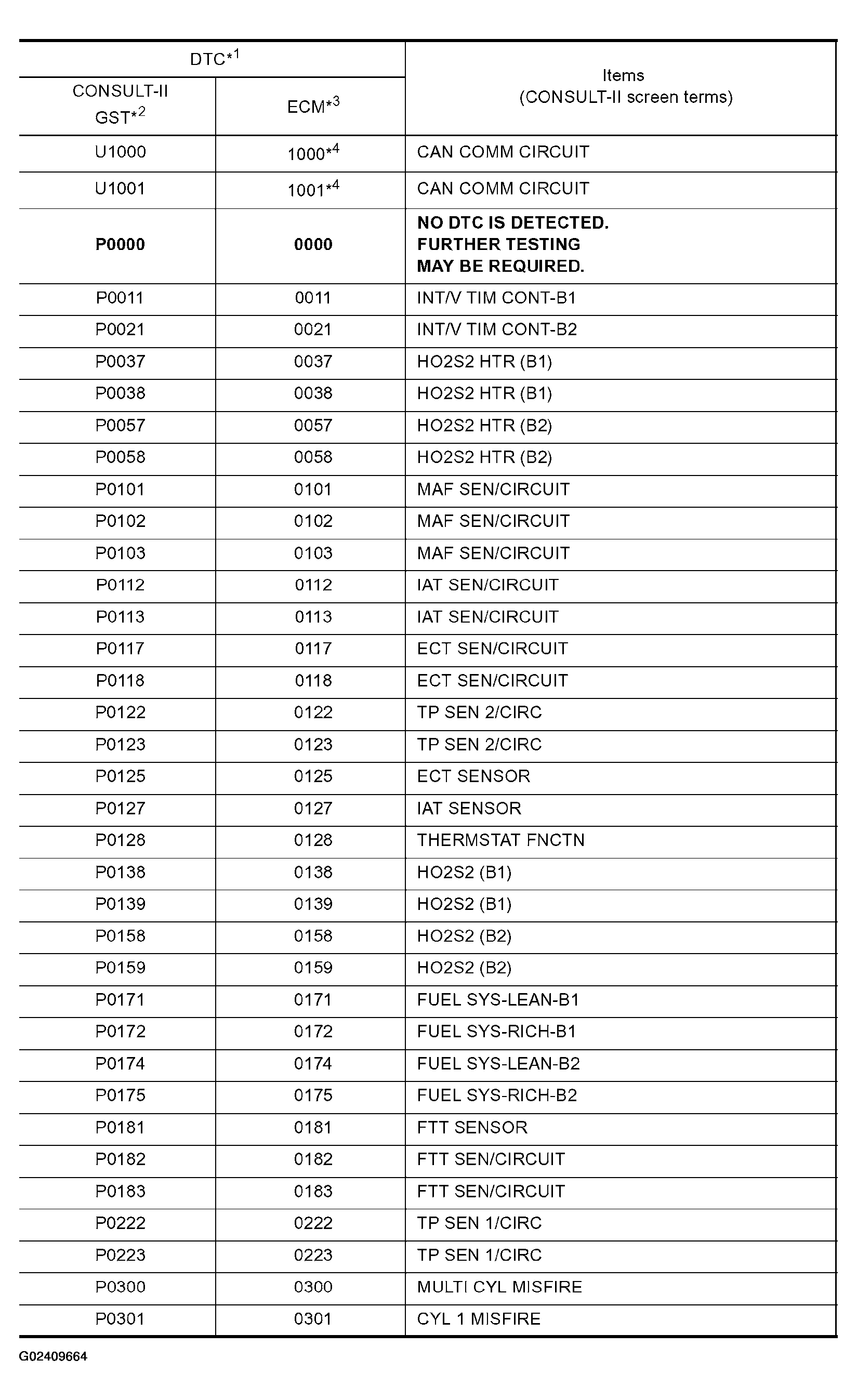

Fig 1: Troubleshooting Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

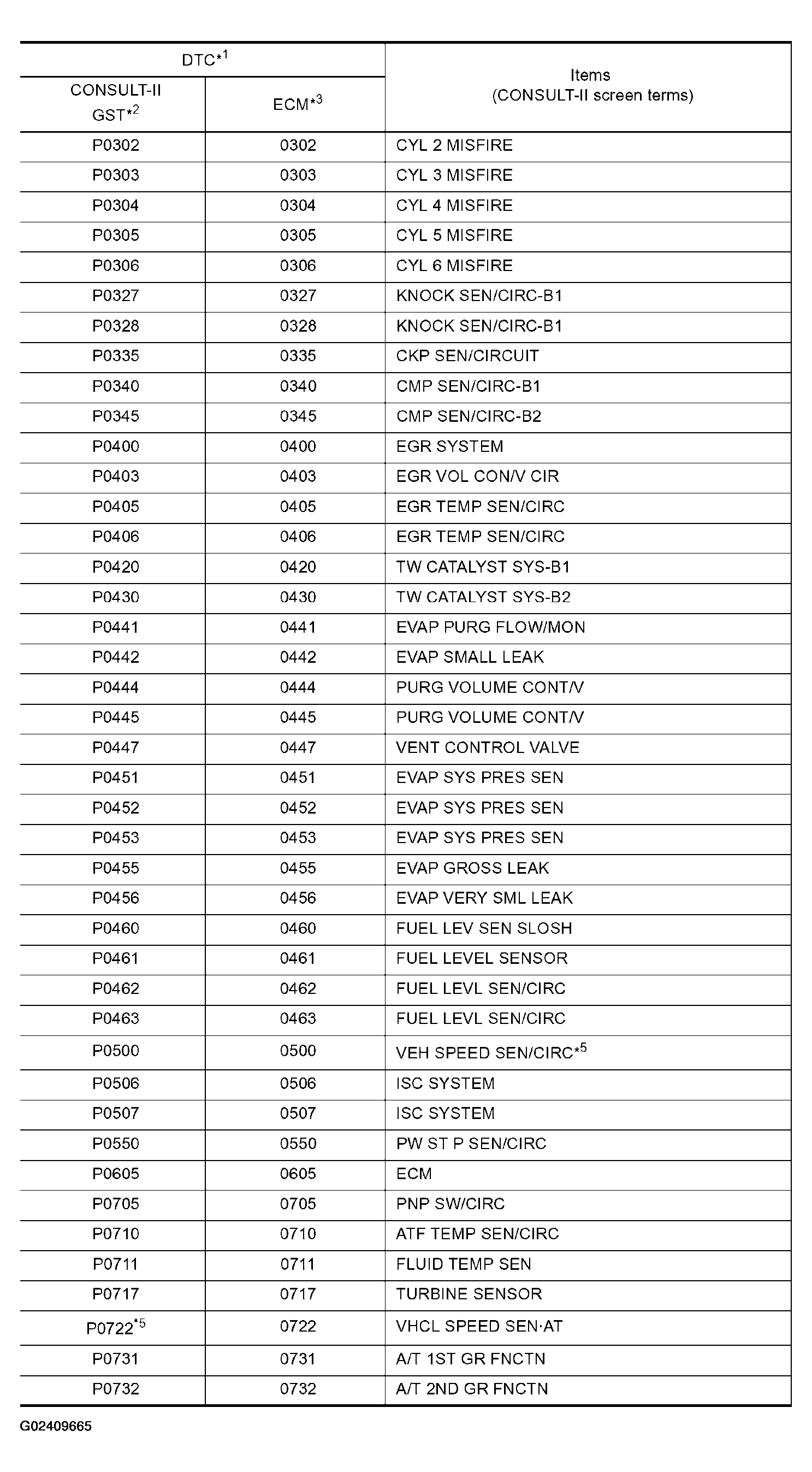

Fig 2: Troubleshooting Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

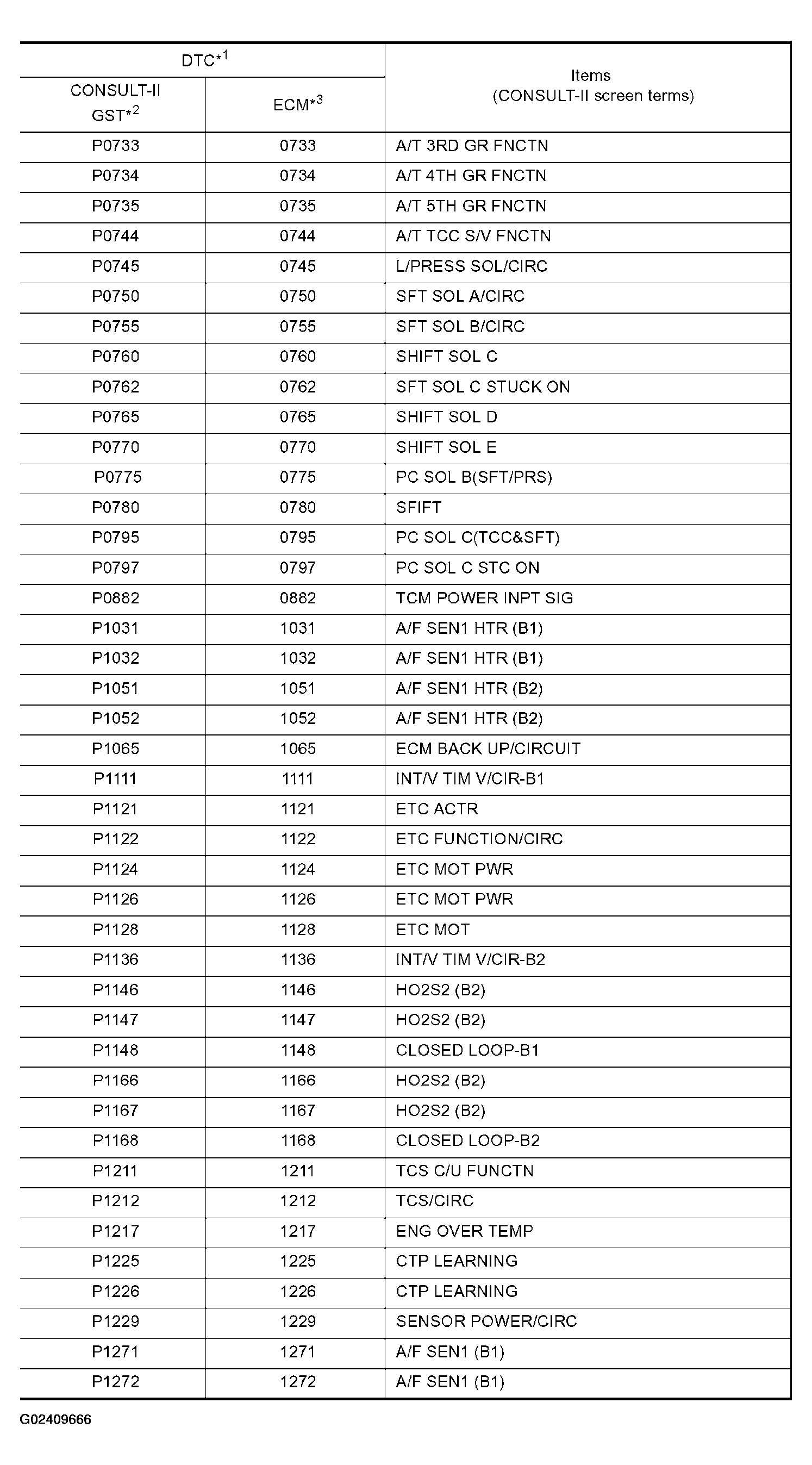

Fig 3: Troubleshooting Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

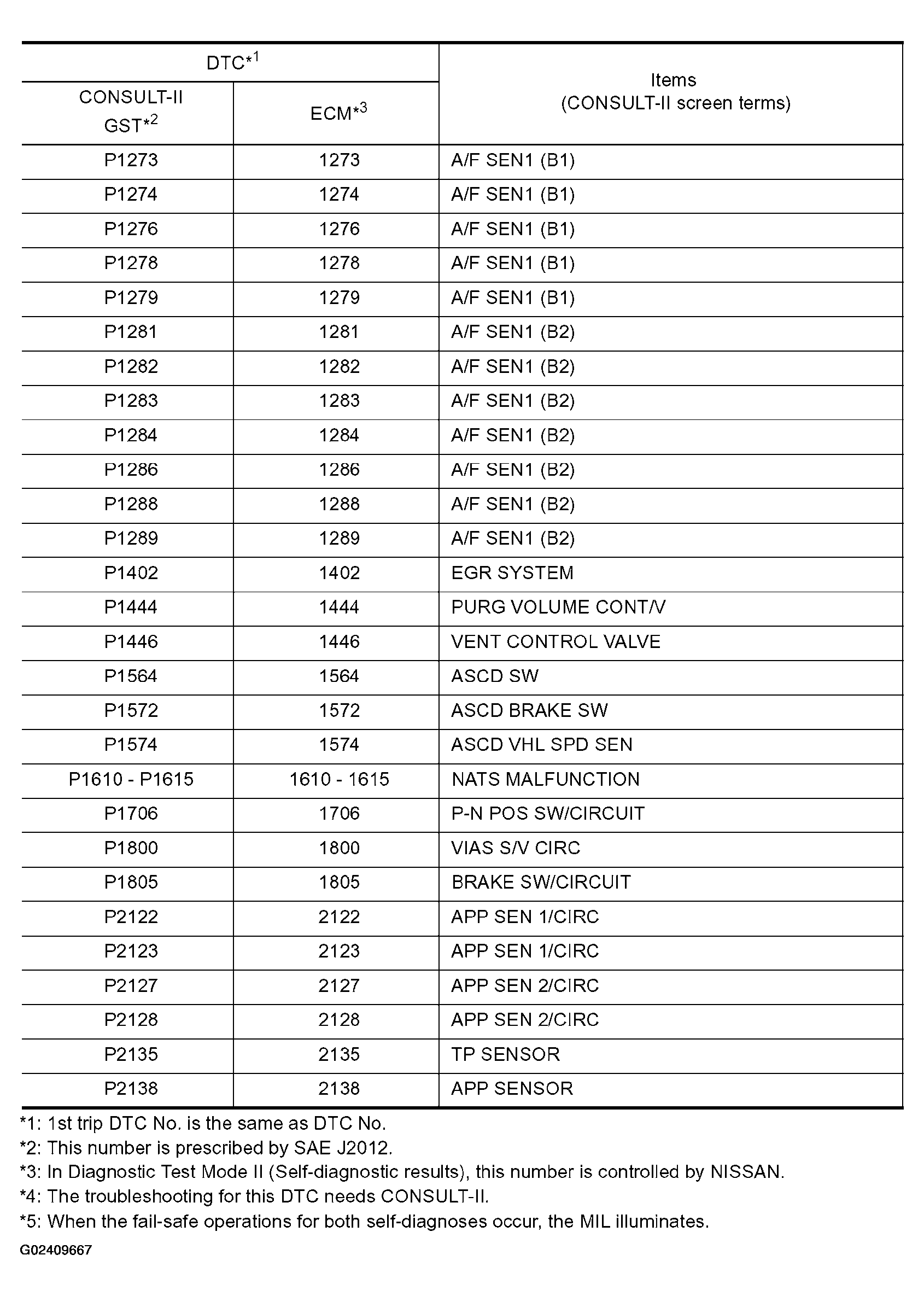

Fig 4: Troubleshooting Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
