Trouble Diagnosis Introduction
›
Diagnostic Worksheet
›
Worksheet Sample
Worksheet Sample

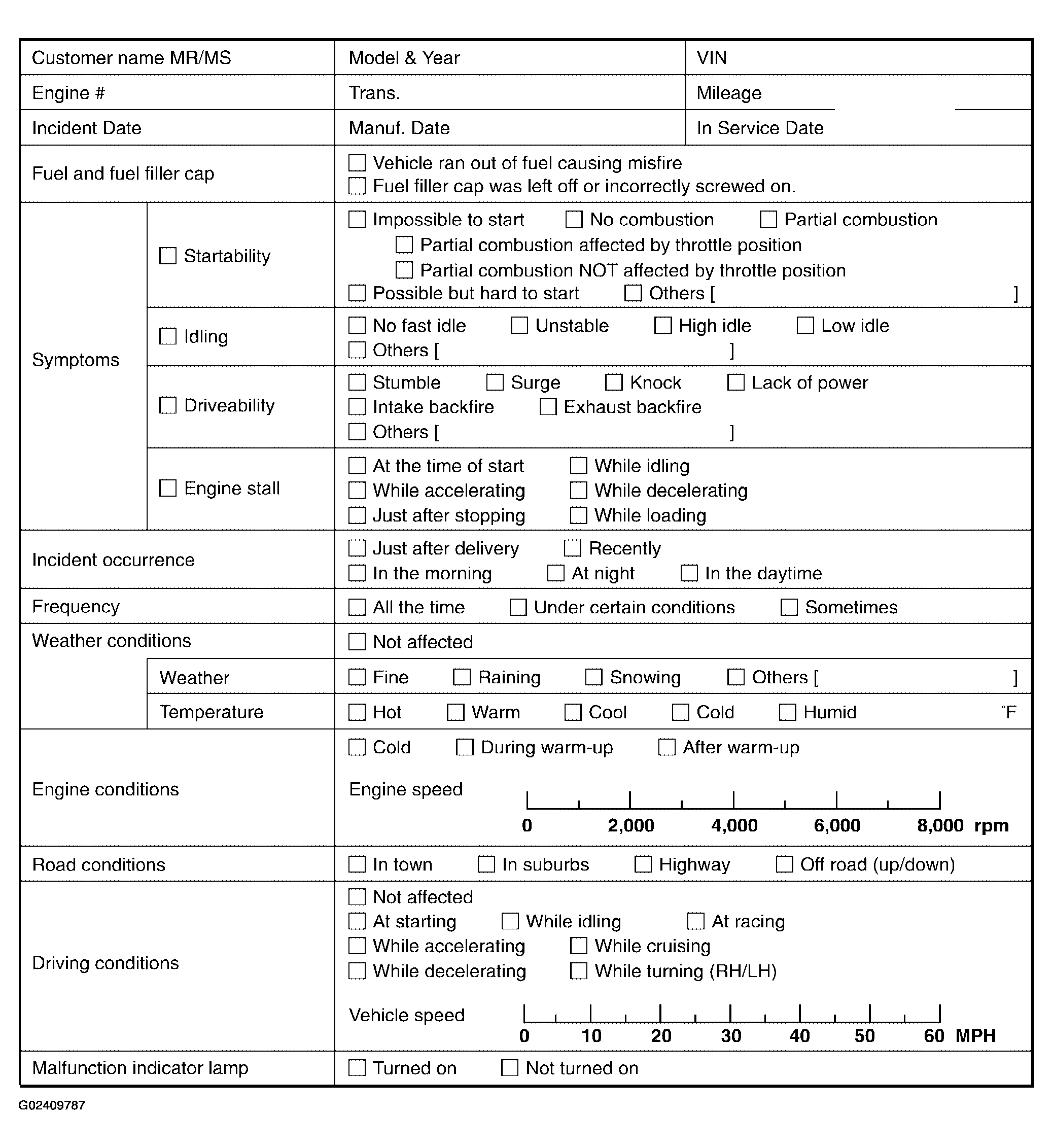

Fig 1: Troubleshooting Worksheet Sample
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
