Mirror Sensor RH Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DOOR MIRROR FUNCTION

    Check the following items.

    Operation malfunction in memory control

    NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

    OK or NG

    • OK: GO TO 2.
    • NG: Repair or replace the malfunctioning parts, and check the symptom again.
  2. CHECK MIRROR SENSOR INSPECTION

    With CONSULT-II

    Check that "ON" is displayed on "MIR/SEN RH R-L, MIR/SEN RH U-D" in the DATA MONITOR.

    MIRROR SENSOR RH OPERATION REFERENCE

    Monitor item [OPERATION or UNIT] Contents
    MIR/SEN RH R-L "V" Voltage output from door mirror RH sensor (LH/RH) is displayed.
    MIR/SEN RH U-D "V" Voltage output from door mirror RH sensor (UP/DOWN) is displayed.

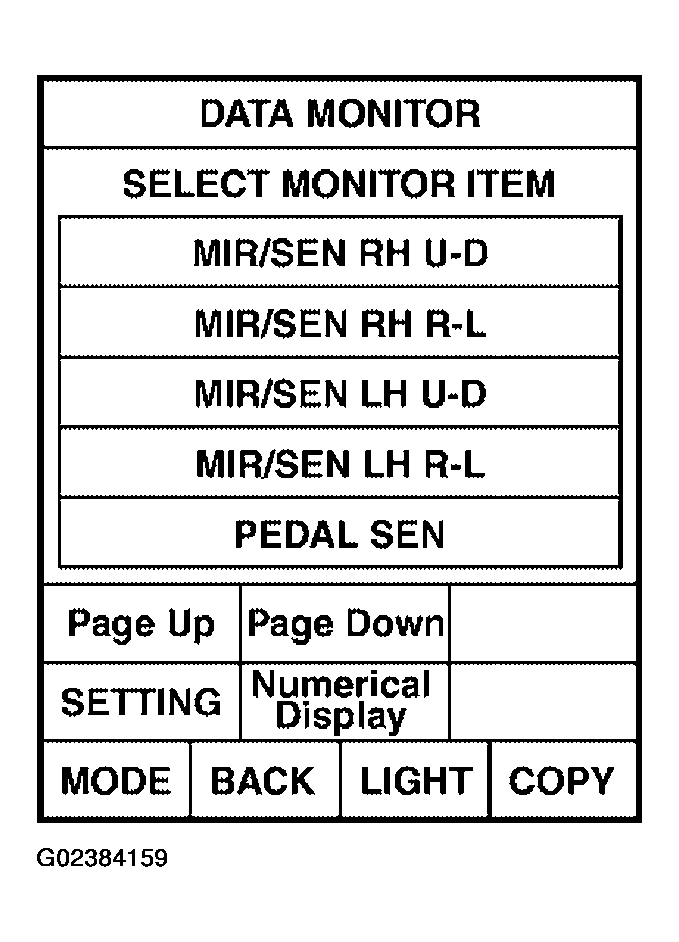

    Fig 1: CONSULT-II - Identifying "MIR/SEN RH R-L"And "MIR/SEN RH U-D" In DATA MONITOR
    G02384159Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch to ACC.
    2. Check voltage between door mirror RH connector and ground.
    Fig 2: Door Mirror RH Connector D107 Terminals 7 And 8 Voltage Specifications
    G02384160Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 3: Checking Voltage Between Door Mirror RH Connector And Ground
    G02384161Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Mirror sensor RH is OK.
    • NG: GO TO 3.
  3. CHECK HARNESS CONTINUITY 1
    1. Disconnect automatic drive positioner control unit and door mirror RH.
    2. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door mirror RH connector D107 terminals 5, 6.
      • 33 (W/L) - 5 (W/L): Continuity should exist.
      • 41 (W/G) - 6 (W/G): Continuity should exist.
    3. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and ground.
      • 33 (W/L) - Ground: Continuity should not exist.
      • 41 (W/G) - Ground: Continuity should not exist.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace harness.
    Fig 4: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M34 Terminals 33, 41 And Door Mirror RH Connector D107 Terminals 5 And 6
    G02384162Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK HARNESS CONTINUITY 2
    1. Disconnect automatic drive positioner control unit and door mirror RH.
    2. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and door mirror RH connector D107 terminals 7, 8.
      • 5 (R/B) - 7 (R/B): Continuity should exist.
      • 21 (L/W) - 8 (L/W): Continuity should exist.
    3. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and ground.
      • 5 (R/B) - Ground: Continuity should not exist.
      • 21 (L/W) - Ground: Continuity should not exist.

    OK or NG

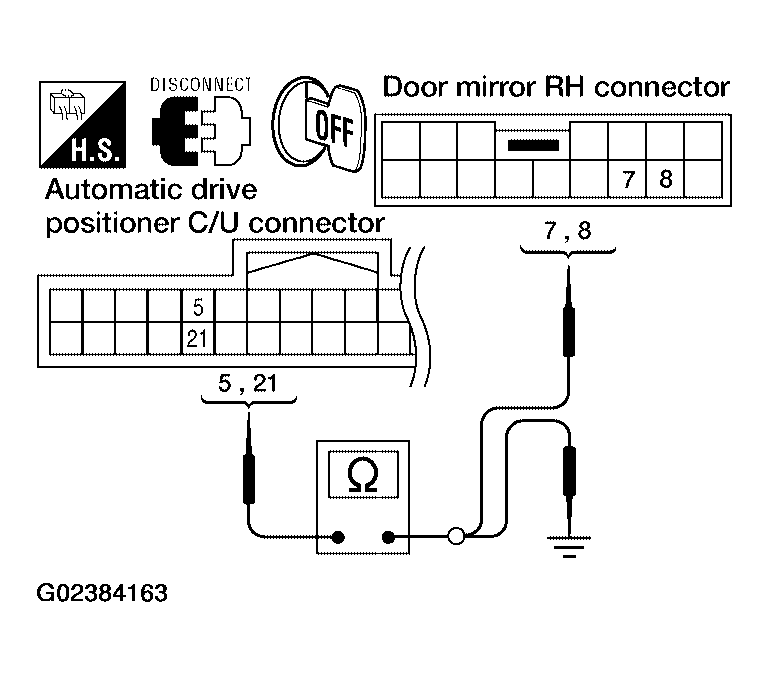

    Fig 5: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 5, 21 And Door Mirror RH Connector D107 Terminals 7 And 8
    G02384163Courtesy of NISSAN MOTOR CO., U.S.A.
