Setting Change Function

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

The settings of the automatic driving positioner system can be changed, using CONSULT-II and the display in the center of the instrument panel.

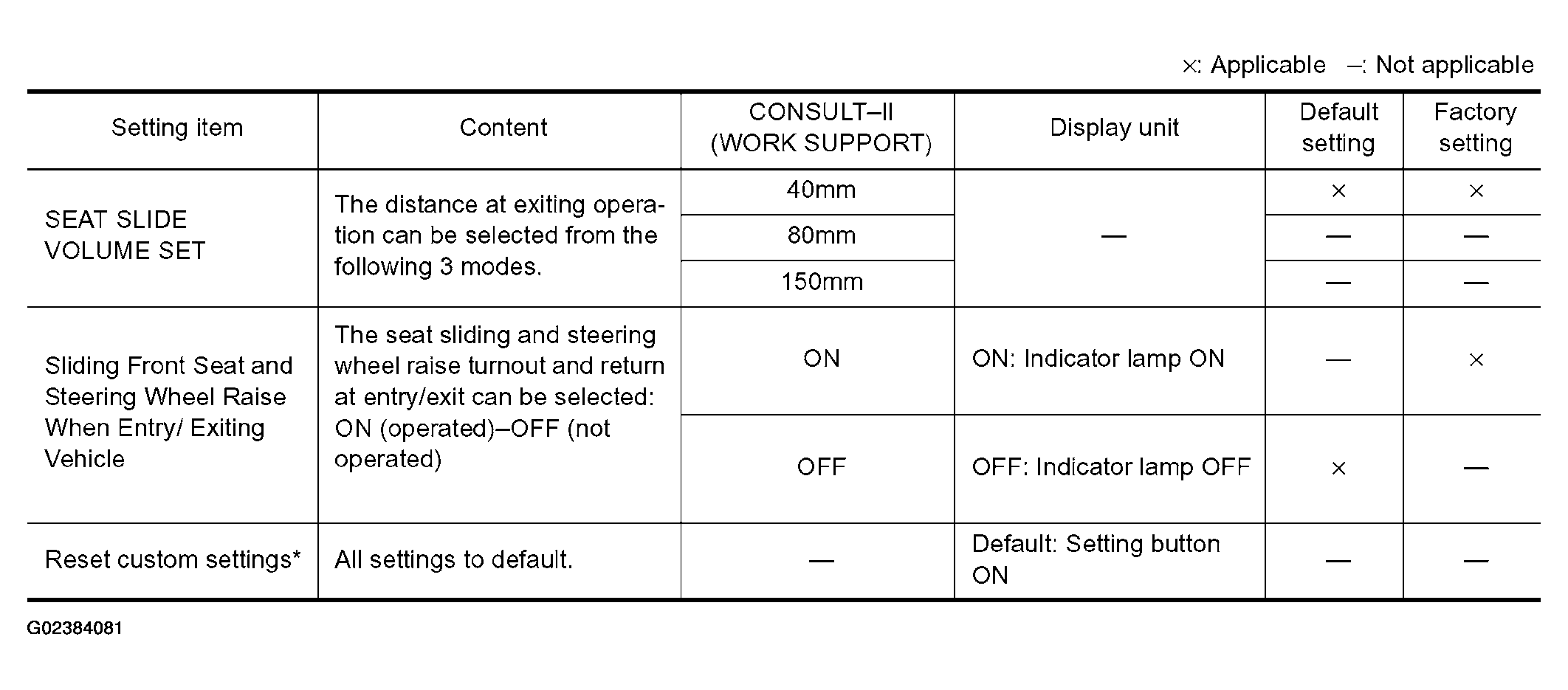

Fig 1: Setting Change Function - Driving Positioner System Reference

Courtesy of NISSAN MOTOR CO., U.S.A.

It is possible to set sliding front seat for entry/exit of vehicle by pressing set switch.

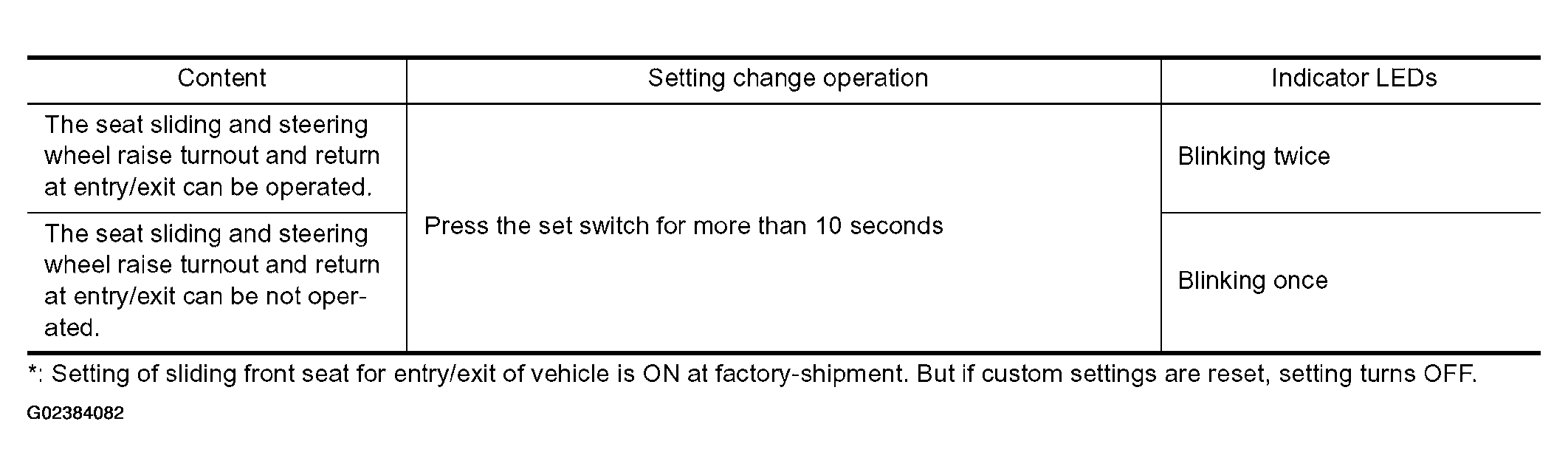

Fig 2: Setting Change Function - Sliding Front Seat Reference

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: After the setting is registered, the new setting is effective, even if the battery is disconnected.
