Sliding Sensor Circuit Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUNCTION

With CONSULT-II

Check operation with "SLIDE PULSE" on the DATA MONITOR to make sure the pulse changes.

SLIDING SENSOR OPERATION REFERENCE

Monitor item [OPERATION or UNIT]		Contents
SLIDE PULSE	-	The seat sliding position (pulse) judged from the sliding sensor signal is displayed

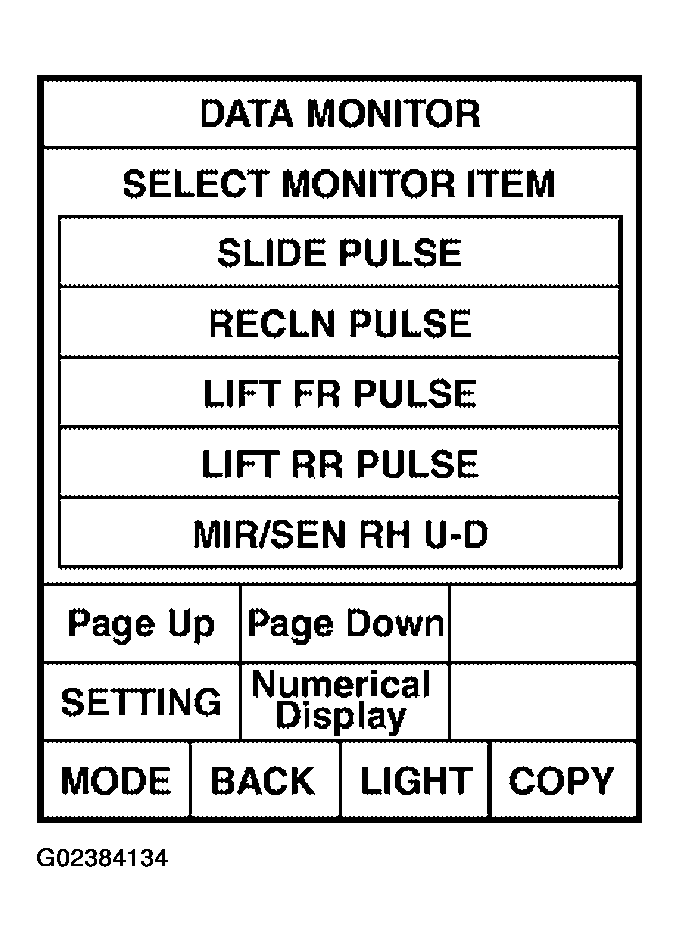

Fig 1: CONSULT-II - Identifying "SLIDE PULSE" On DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch OFF.
Check signal between driver seat control unit connector and ground, with oscilloscope.

Fig 2: Driver Seat Control Unit Connector P2 Terminal 24 Signal Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Checking Signal Between Driver Seat Control Unit Connector And Ground, With Oscilloscope

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Sliding sensor circuit is OK.
NG: GO TO 2.

CHECK SLIDING MOTOR SENSOR CIRCUIT HARNESS CONTINUITY
1. Disconnect driver seat control unit connector and sliding motor LH.
2. Check continuity between driver seat control unit connector P2 terminals 16, 24, 31 and sliding motor P4 terminals 1,2,3.
  - 16 (W) - 3 (W): Continuity should exist.
  - 24 (Y/G) - 2 (Y/G): Continuity should exist.
  - 31 (L/Y) - 1 (L/Y): Continuity should exist.
3. Check continuity between driver seat control unit P2 terminals 16, 24, 31 and ground.
  - 16 (W) - Ground: Continuity should not exist.
  - 24 (Y/G) - Ground: Continuity should not exist.
  - 31 (L/Y) - Ground: Continuity should not exist.
  Fig 4: Checking Continuity Between Driver Seat Control Unit Connector P2 Terminals 16, 24, 31 And Sliding Motor P4 Terminals 1, 2 And 3
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace sliding motor.
- NG: Repair or replace harness.
