KEYFOB Interlock Operation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

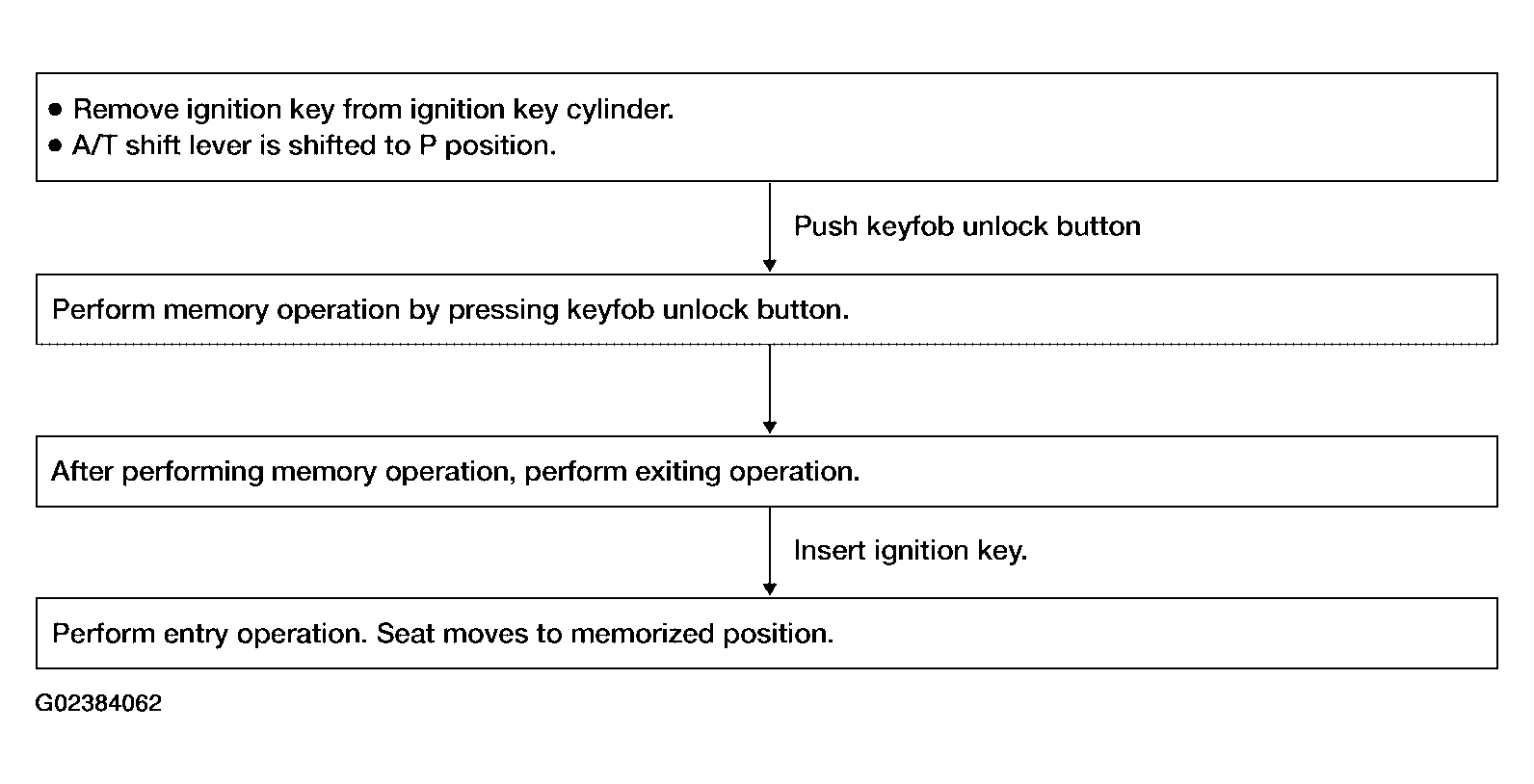

Fig 1: Keyfob Interlock Operation Flow Chart
G02384062Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • If Entry/Exiting operation is cancelled, the system performs memory operation only.
  • If ignition switch turns ON in the middle of memory operation, the system does not perform exiting operation after memory operation.
  • If ignition switch turns ON in the middle of exiting operation, entry operation starts at that time.
