Terminals and Reference Values for Automatic Drive Positioner Control Unit
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

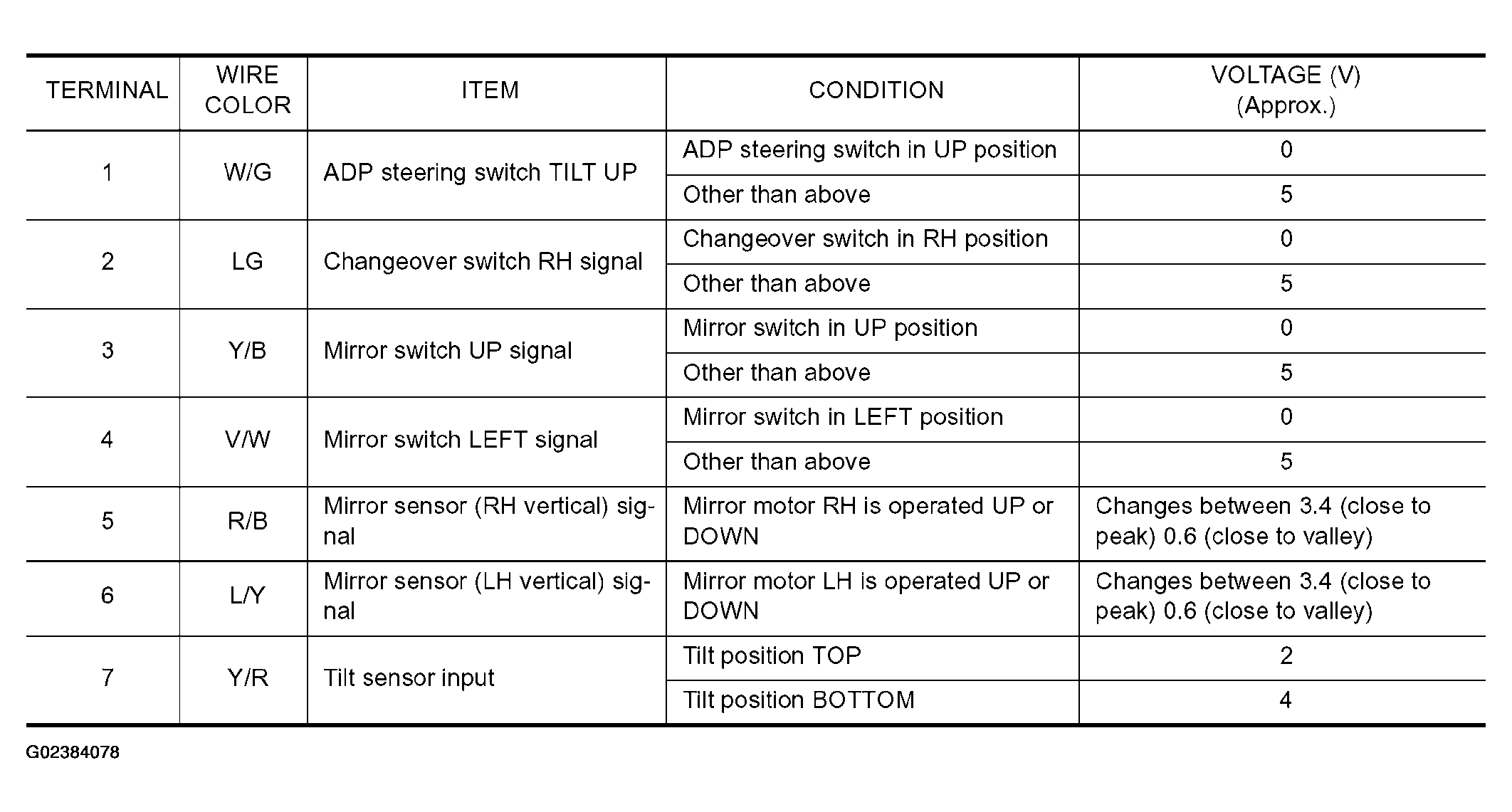

Fig 1: Automatic Drive Positioner Control Unit Terminals And Reference Values (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

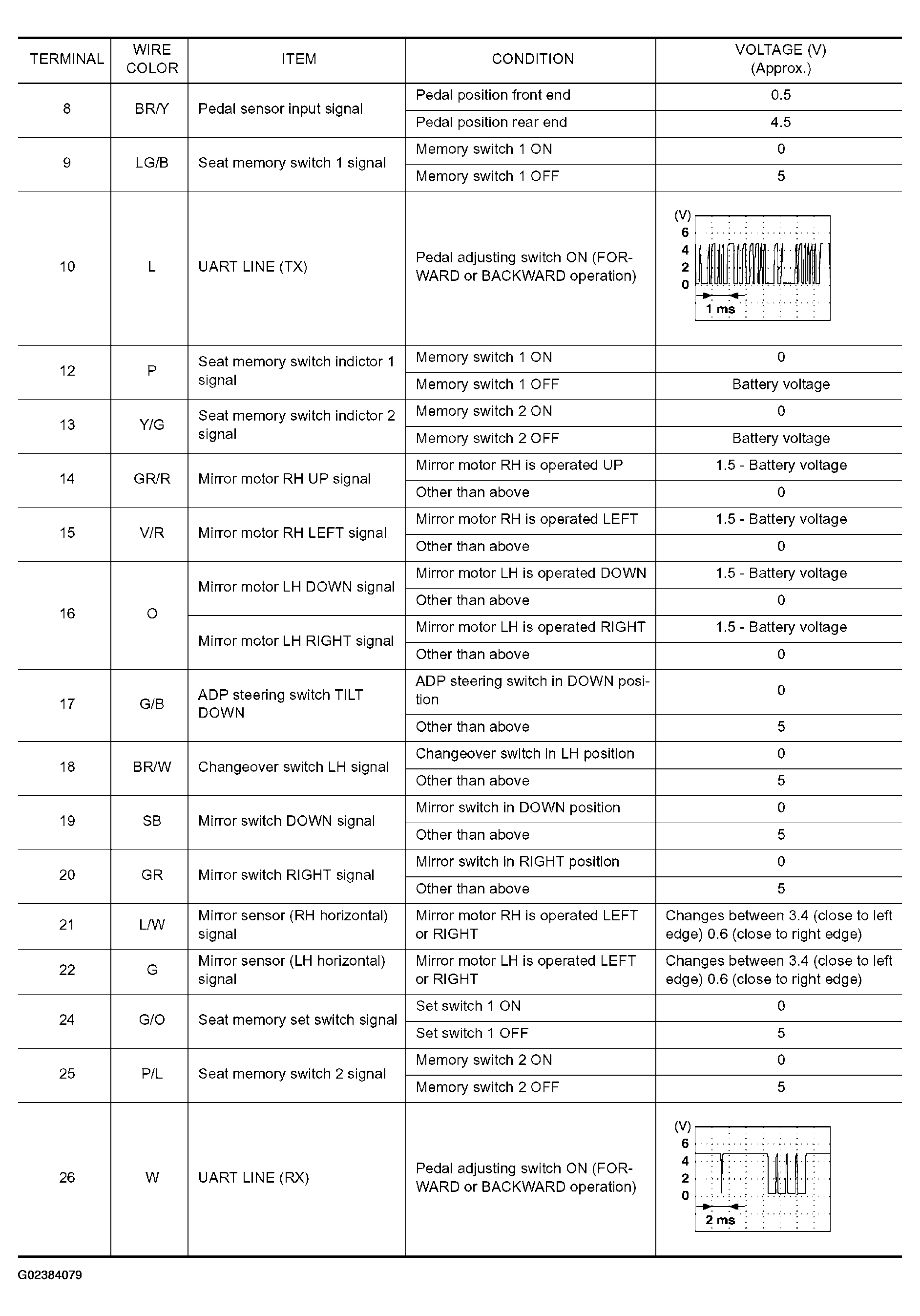

Fig 2: Automatic Drive Positioner Control Unit Terminals And Reference Values (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

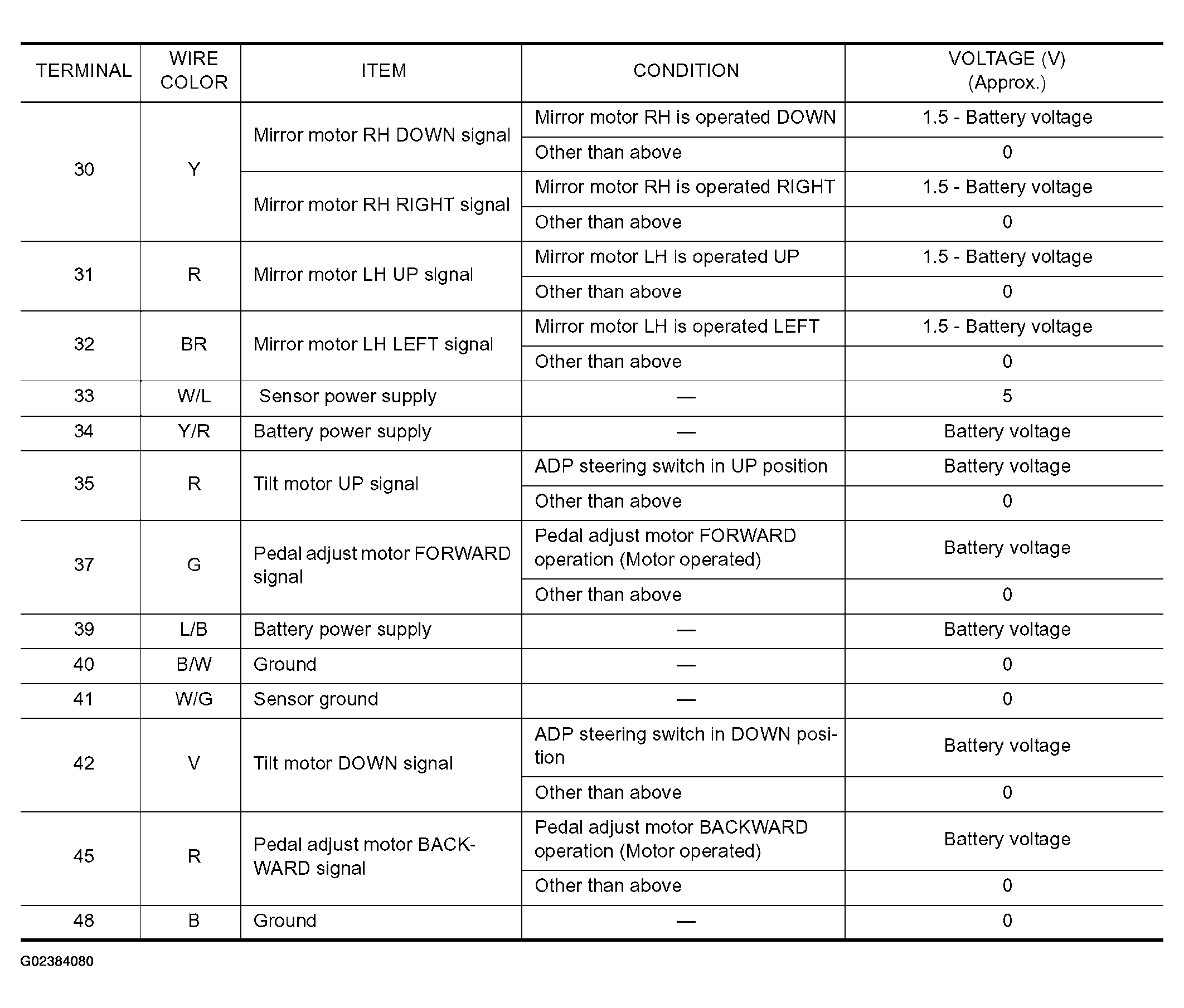

Fig 3: Automatic Drive Positioner Control Unit Terminals And Reference Values (3 Of 3)
