Input/Output Signal of TCM

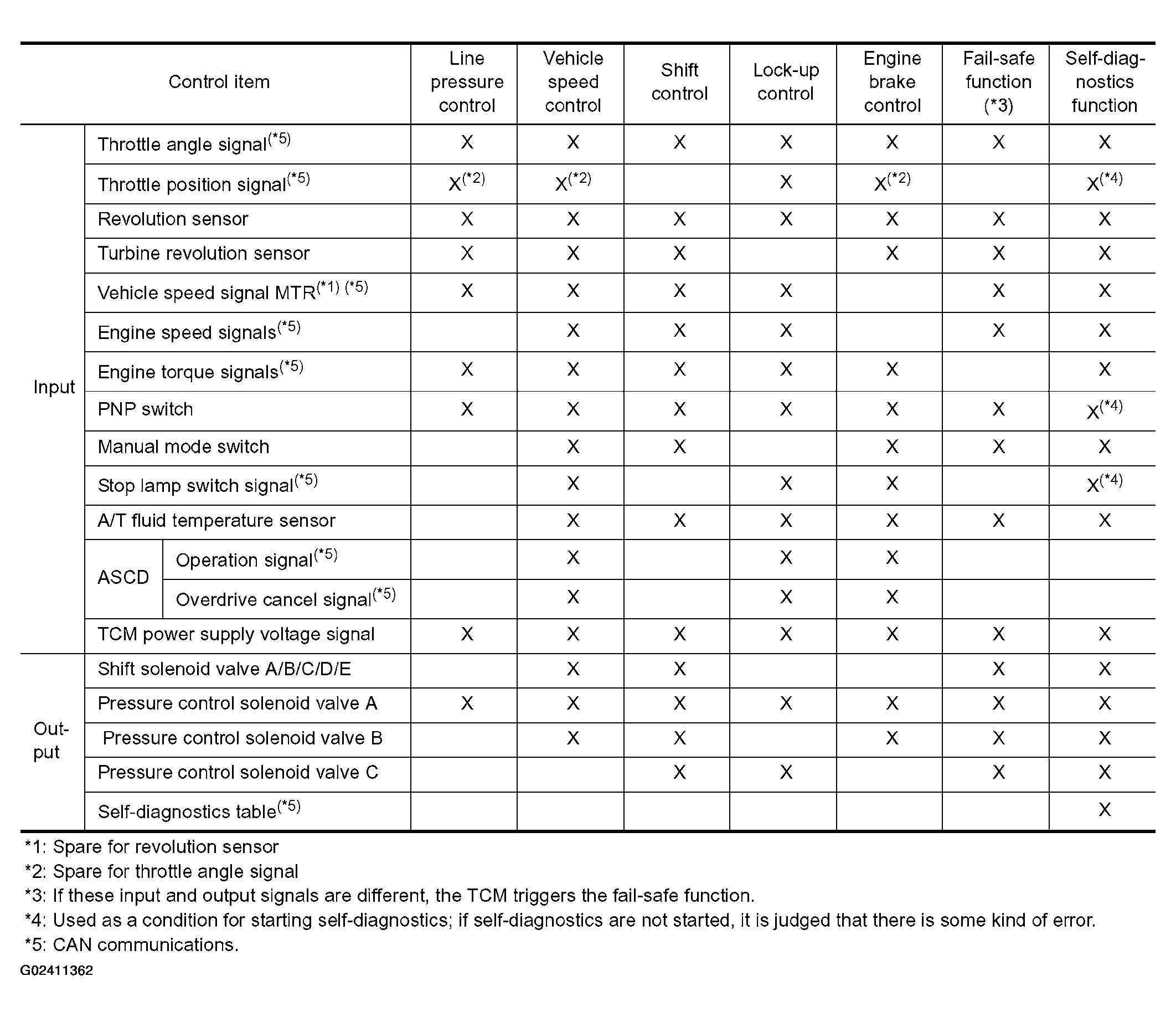

Fig 1: Input/Output Signal Chart Of TCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
