Shift Lock Control Unit Inspection Table

Data are reference values.

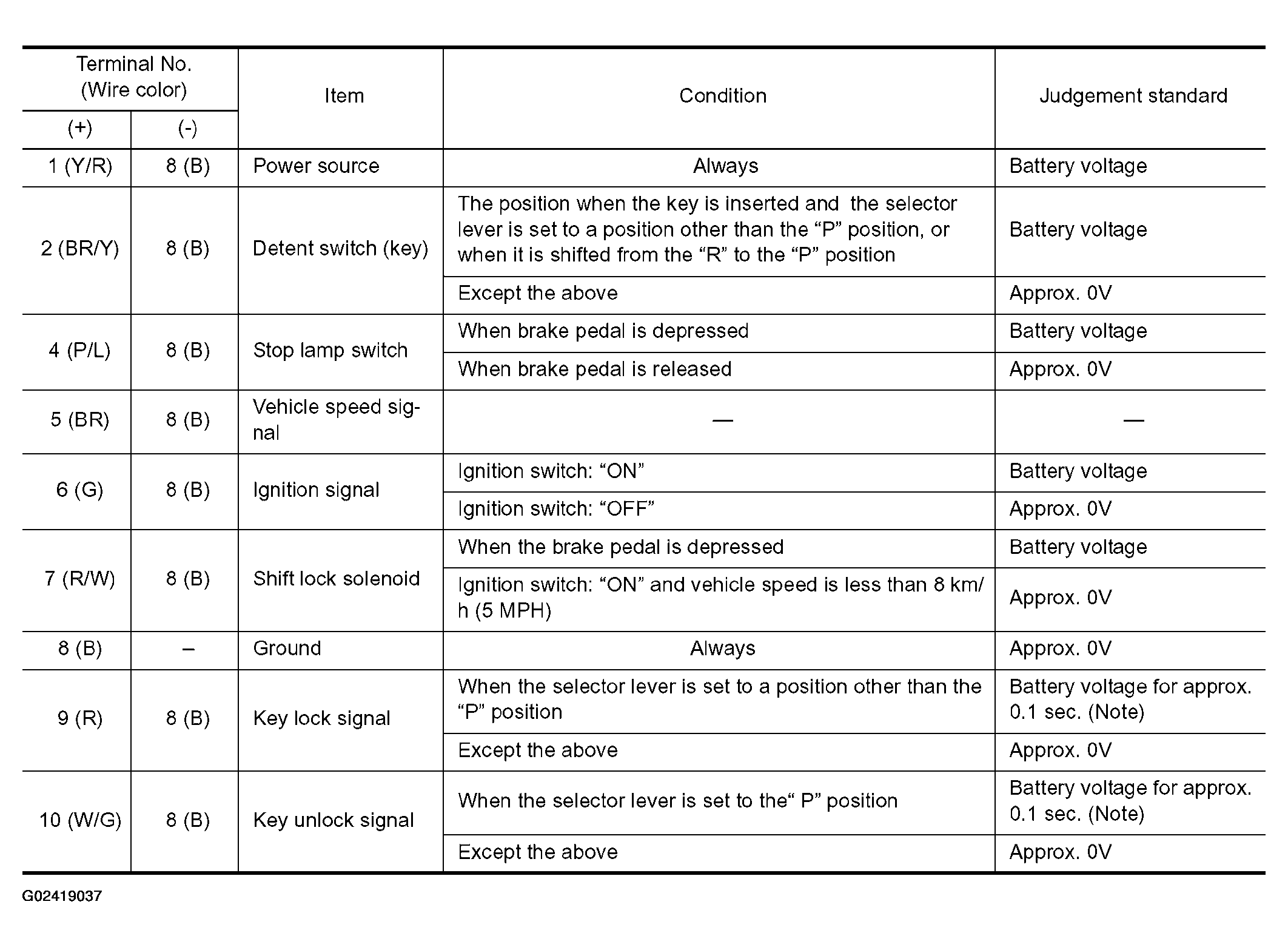

Fig 1: Item Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Make sure that the pointer swings only momentarily because the output time is so short. If the inspection is done with an oscilloscope, it should be observed that the power source voltage lasts for 3.5 to 10 ms.
