Control Valve Assembly: Installation

Installation is the reverse order of removal.

• Install bolts in sequence as shown. Refer to COMPONENTS  for specified torque.
  BOLT SPECIFICATION



  Bolt	Symbol Length mm (in)	Number of bolts
  A	55 (2.17)	2
  B	50 (1.97)	2
  C	16 (0.63)	2

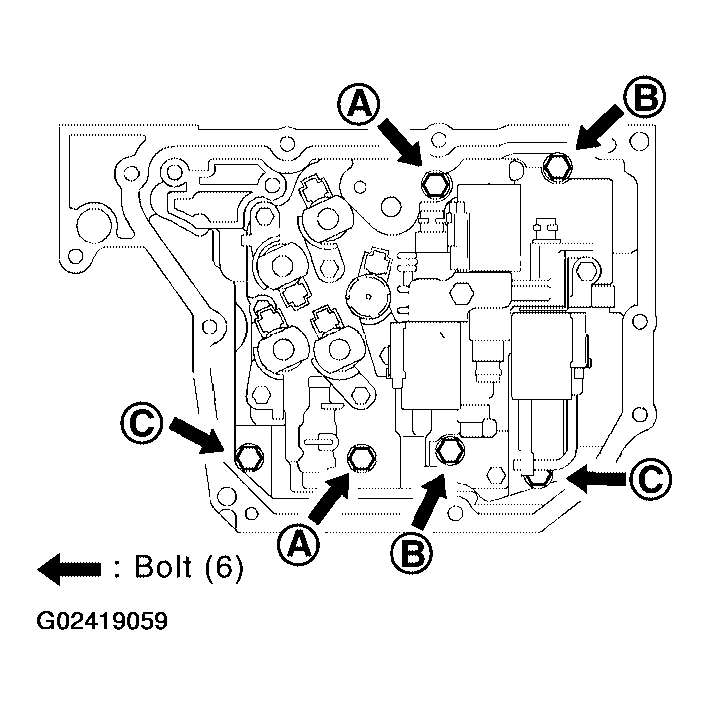

  Fig 1: Identifying Control Valve Assembly Bolts In Sequence

  Courtesy of NISSAN MOTOR CO., U.S.A.
