Control Valve Assembly: Removal

  1. Remove side cover. Refer to SIDE COVER .
  2. Disconnect solenoid valve connectors.
  3. Disconnect control valve assembly bolts and remove control valve assembly.

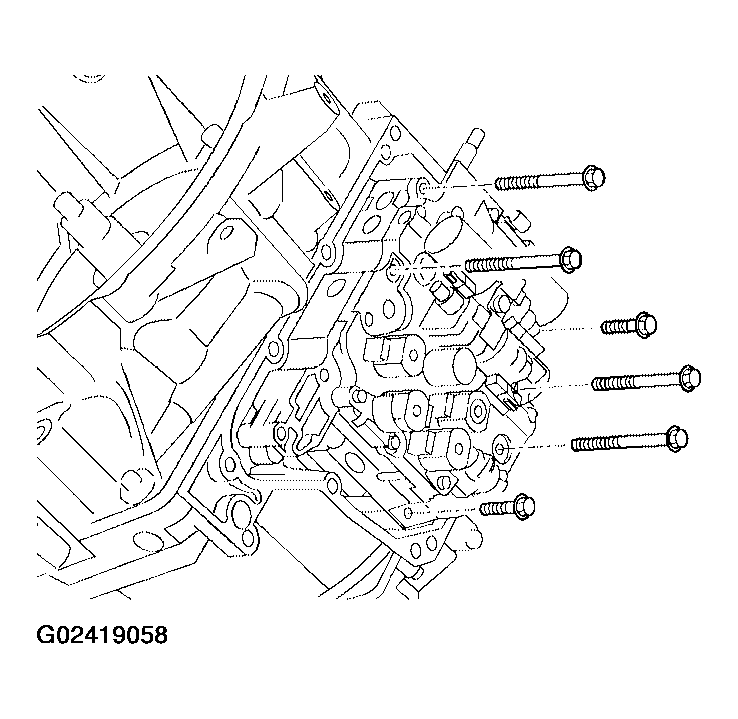

    Fig 1: Removing Control Valve Assembly Bolts
    G02419058Courtesy of NISSAN MOTOR CO., U.S.A.
