System Description - Abs
›
System Diagram
System Diagram

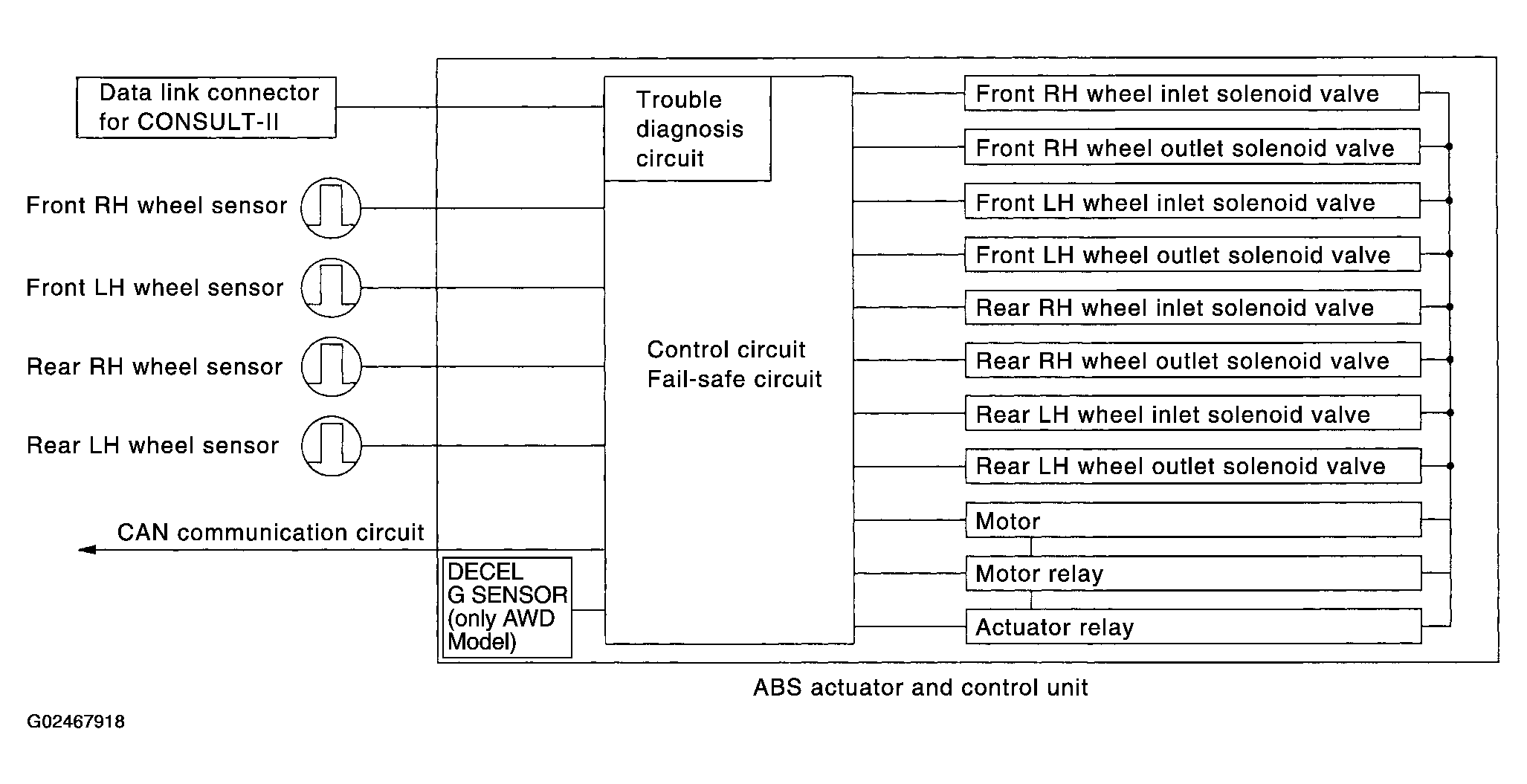

Fig 1: Brake Control System Block Diagram - ABS
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
