Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    CONTINUITY REFERENCE

    CONDITION Continuity
    When brake pedal is fully released. Should not exist.
    When brake pedal is depressed. Should exist.

    If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.

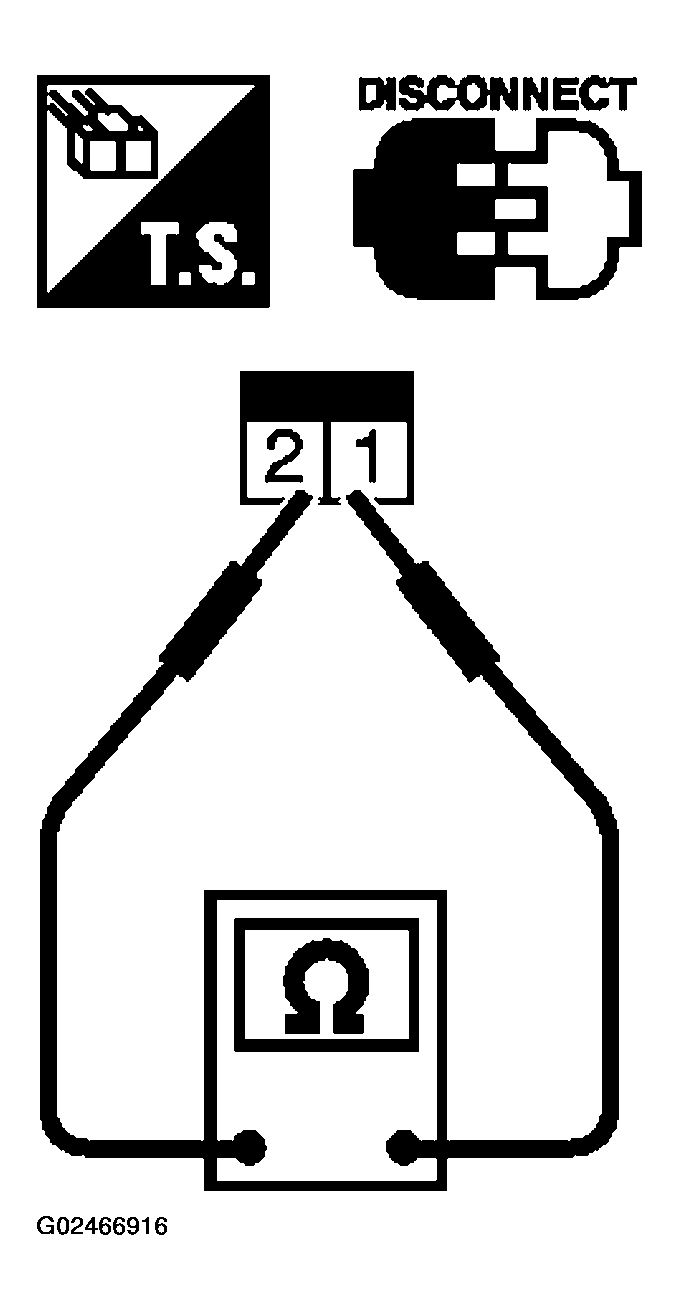

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G02466916Courtesy of NISSAN MOTOR CO., U.S.A.
