DTC P0112, P0113: IAT Sensor: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

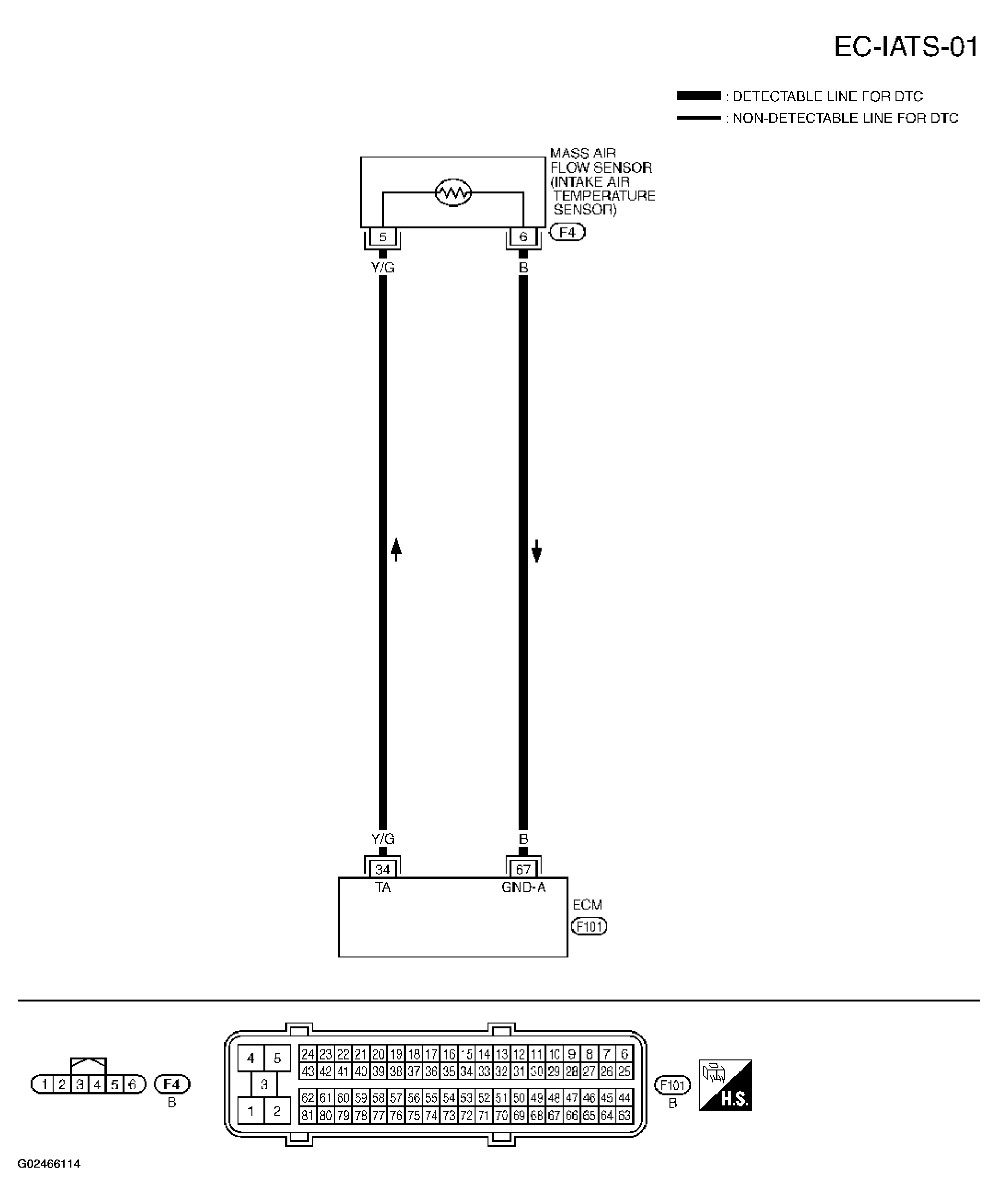

Fig 1: Wiring Diagram - Intake Air Temperature Sensor (EC-IATS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.
