Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten two ground screws on the body. Refer to GROUND INSPECTION .

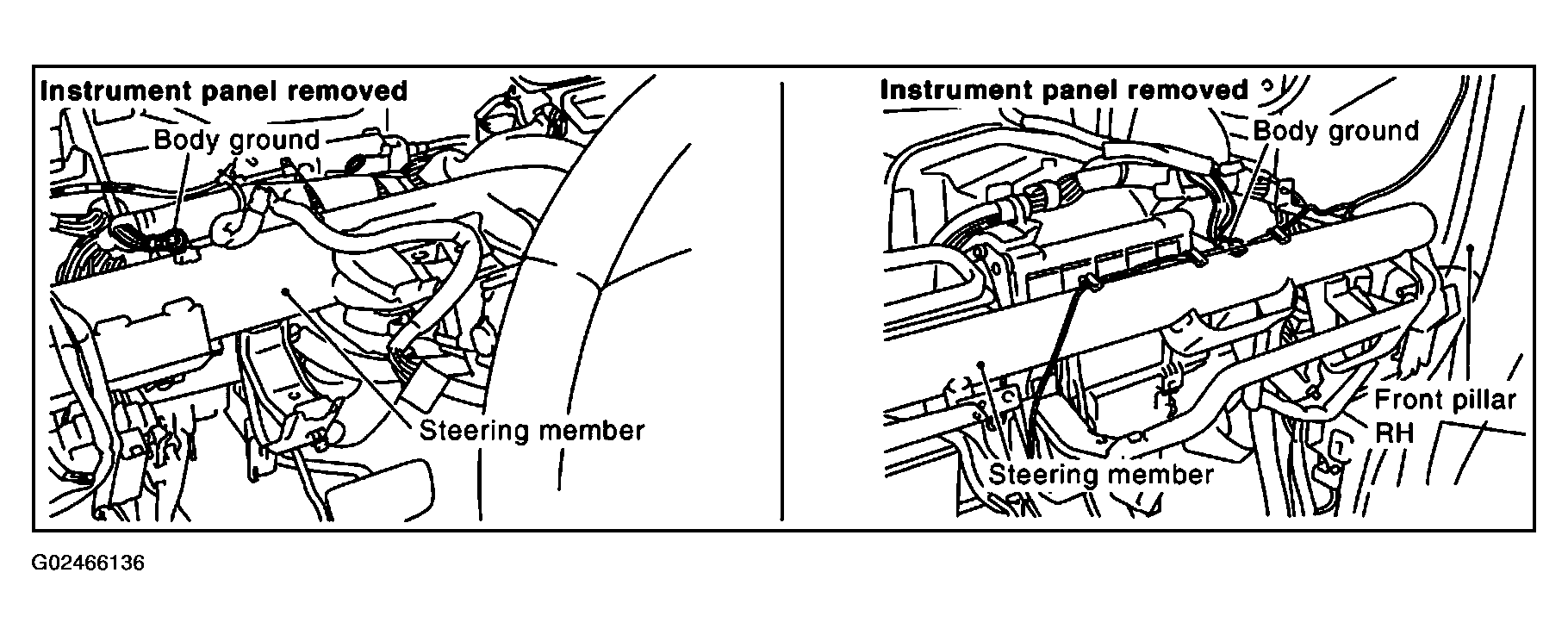

    Fig 1: Checking ECM Ground Connections
    G02466136Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  2.
    • NG: Repair or replace ground connections.
  2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
    1. Disconnect electric throttle control actuator harness connector.
    2. Turn ignition switch ON.

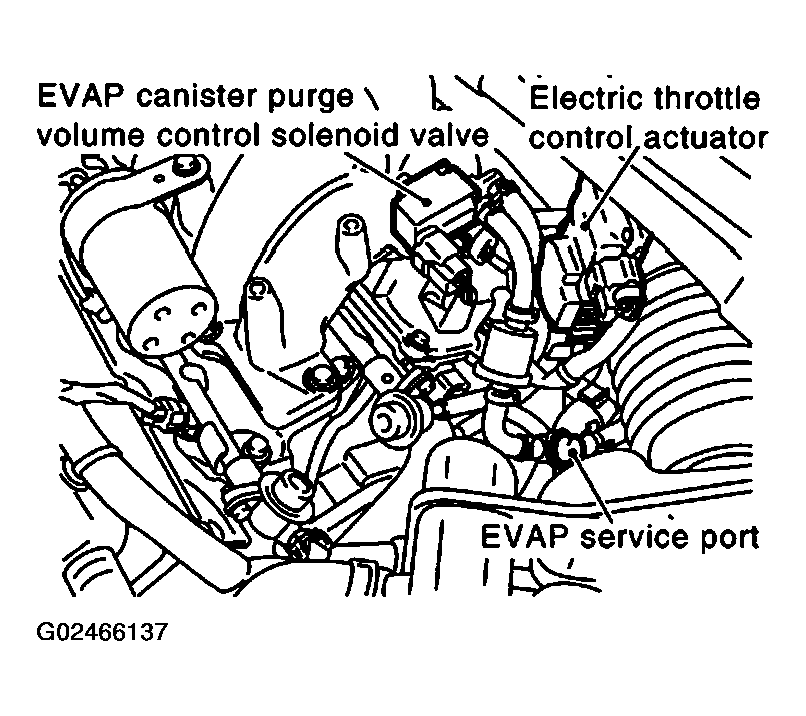

      Fig 2: Locating Electric Throttle Control Actuator Harness Connector
      G02466137Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.
      • Voltage: Approximately 5V
    Fig 3: Checking Voltage Between Electric Throttle Control Actuator Terminal 1 & Ground
    G02466138Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  7.
    • NG: GO TO  3.
  3. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between electric throttle control actuator terminal 1 and ECM terminal 47. Refer to WIRING DIAGRAM .
      • Continuity should exist.

    OK or NG

    • OK: GO TO  4.
    • NG: Repair open circuit.
  4. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III

    Check harness for short to power and short to ground, between the following terminals.

    TERMINALS REFERENCE

    ECM terminal Sensor terminal Reference
    47 Electric throttle control actuator terminal 1 WIRING DIAGRAM
    91 APP sensor terminal 2 WIRING DIAGRAM

    OK or NG

    • OK: GO TO  5.
    • NG: Repair short to ground or short to power in harness or connectors.
  5. CHECK APP SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO  11.
    • NG: GO TO  6.
  6. REPLACE ACCELERATOR PEDAL ASSEMBLY
    1. Replace accelerator pedal assembly.
    2. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
    3. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
    4. Perform IDLE AIR VOLUME LEARNING .
    • INSPECTION END
  7. CHECK THROTTLE POSITION SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  8.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK THROTTLE POSITION SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 69 and electric throttle control actuator terminal 2. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    2. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  9.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK THROTTLE POSITION SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO  11.
    • NG: GO TO  10.
  10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
    1. Replace the electric throttle control actuator.
    2. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
    3. Perform IDLE AIR VOLUME LEARNING .
    • INSPECTION END
  11. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    • INSPECTION END
