Fuel Pump

  1. Disconnect fuel level sensor unit and fuel pump harness connector.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.
    • Resistance: Approximately 0.2 - 0.5Ω[at 25°C (77°F)]

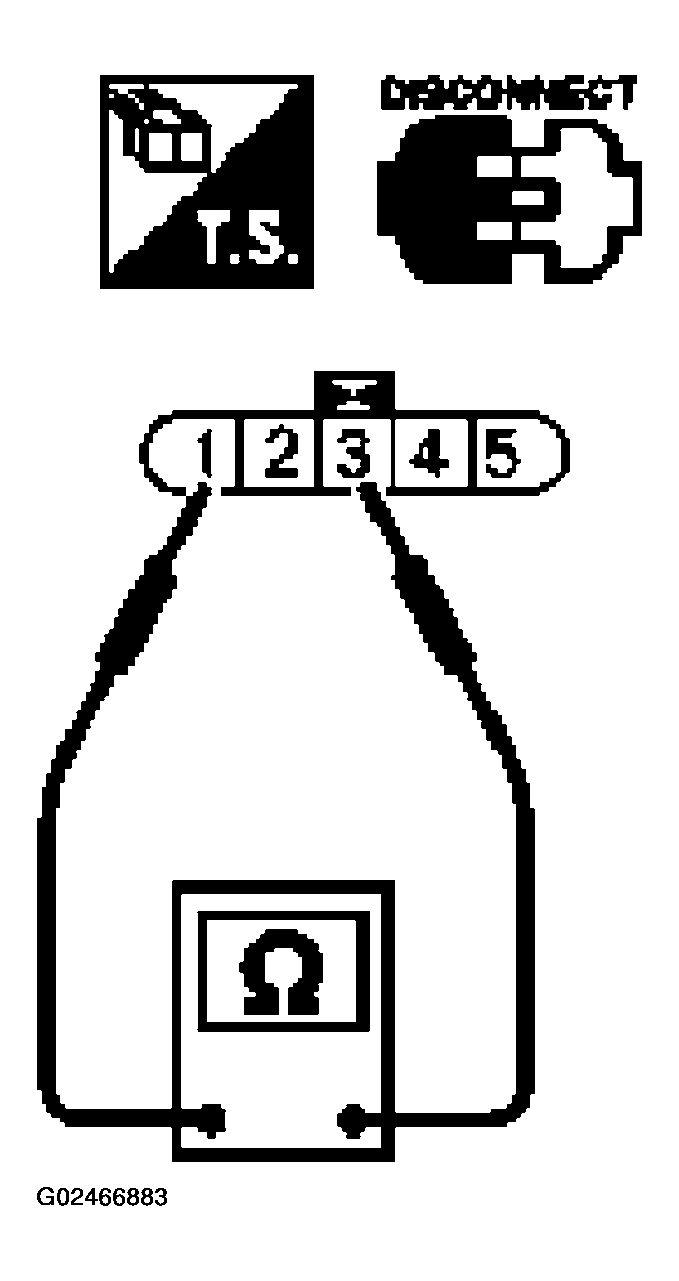

Fig 1: Checking Resistance Between Fuel Level Sensor Unit And Fuel Pump Terminals 1 And 3
G02466883Courtesy of NISSAN MOTOR CO., U.S.A.
