CONSULT-II Function (ENGINE): Function

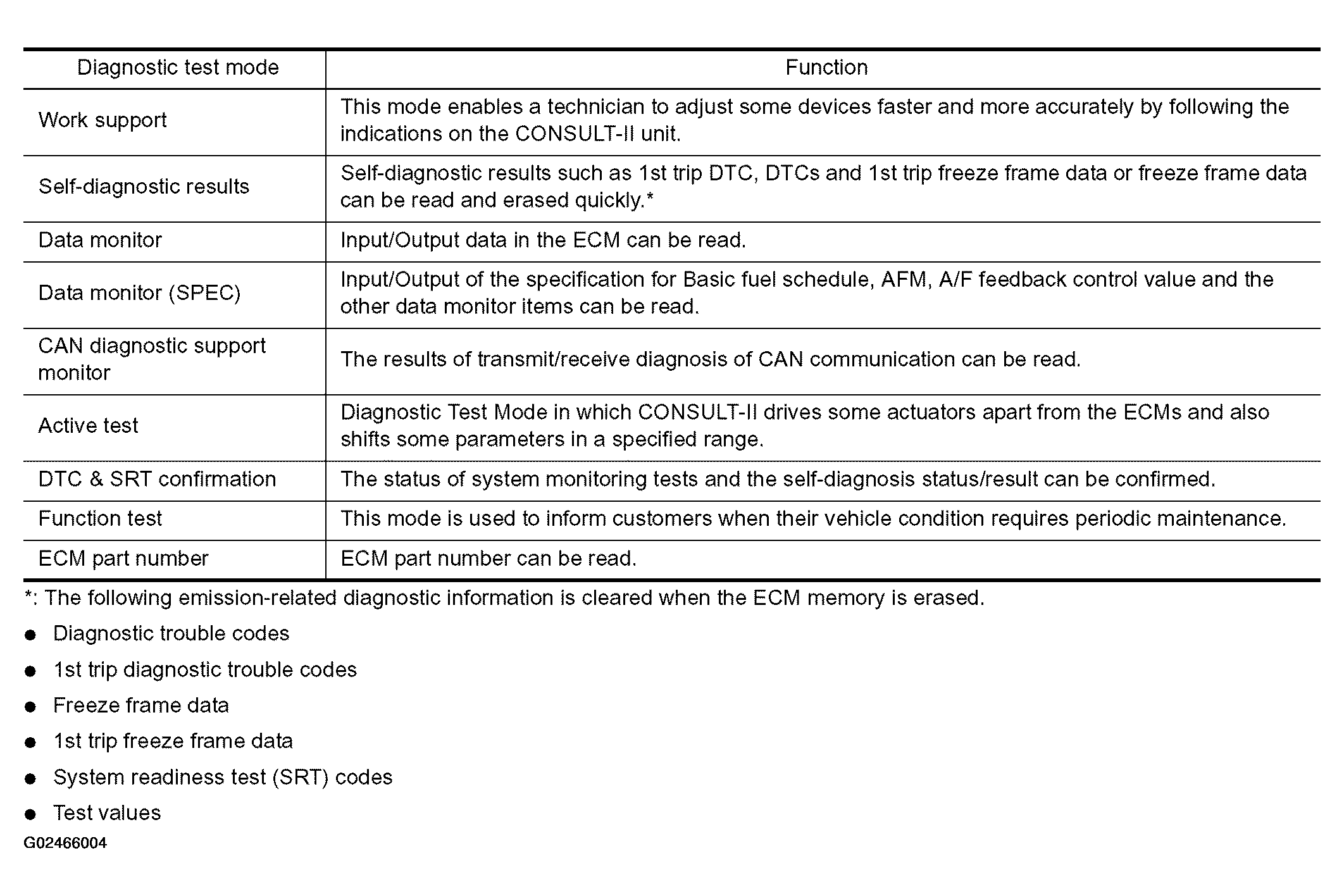

Fig 1: CONSULT-II Function Chart (Engine)

Courtesy of NISSAN MOTOR CO., U.S.A.

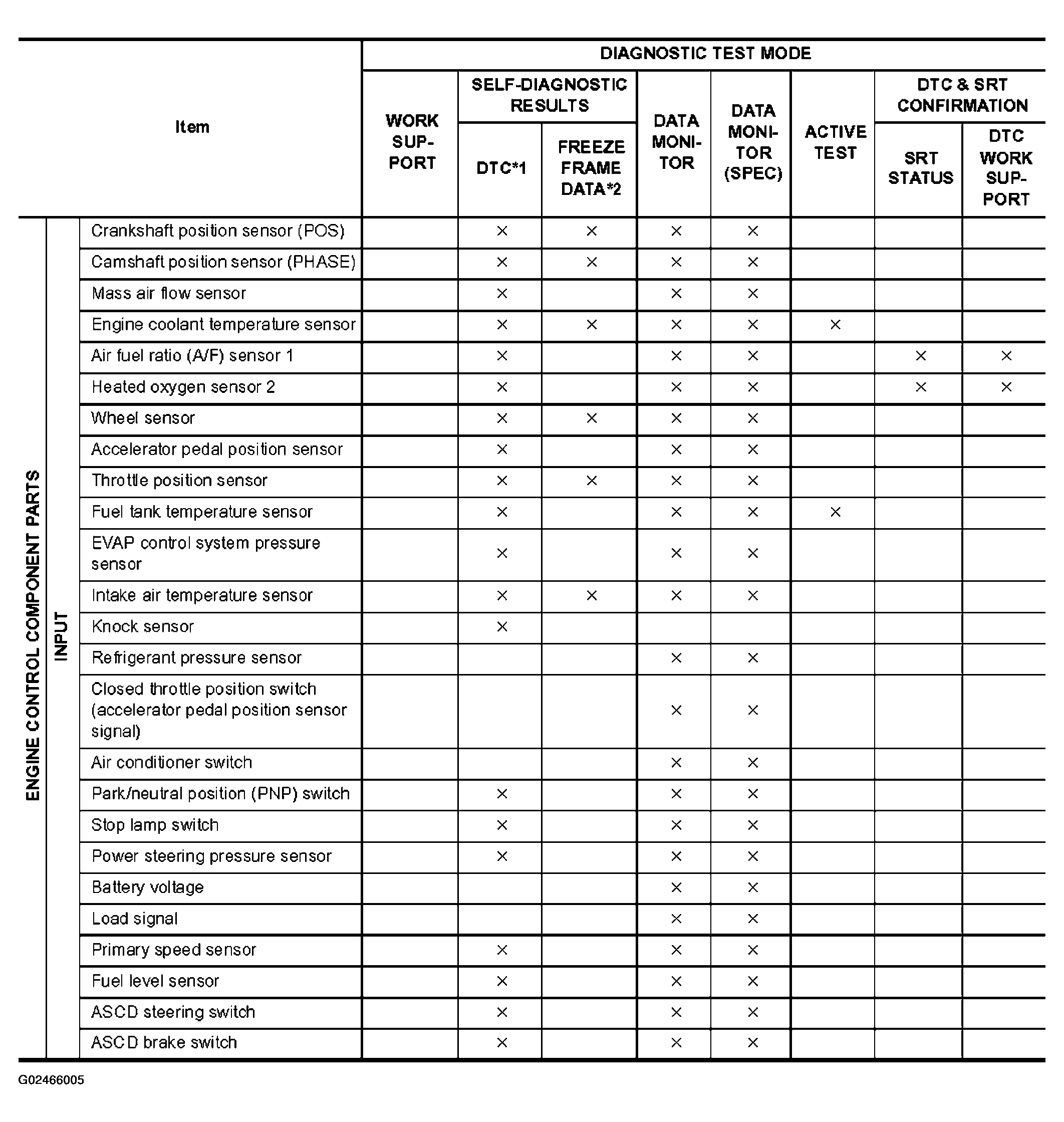

Fig 2: Engine Control Component Parts/Control Systems Application Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

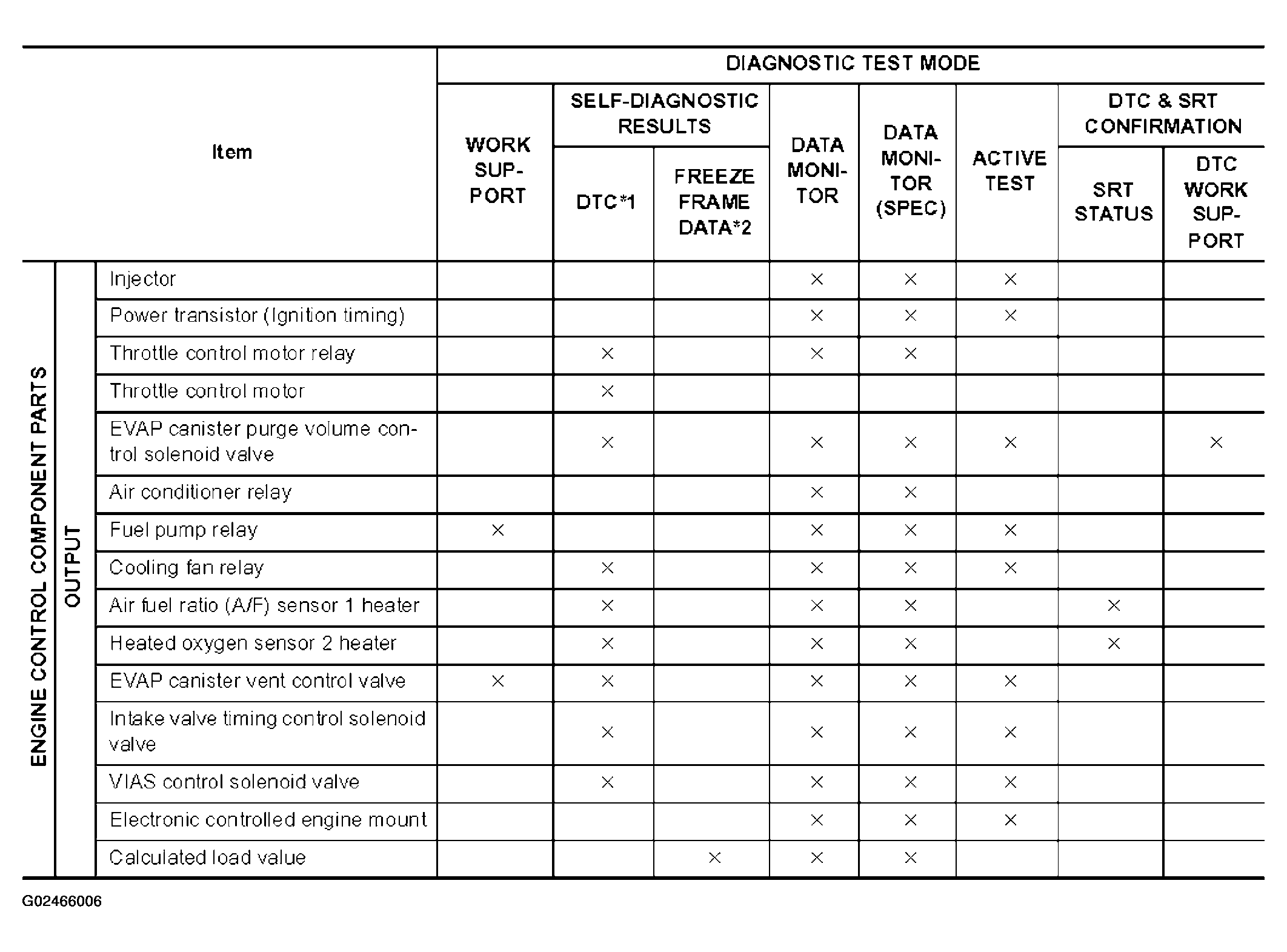

Fig 3: Engine Control Component Parts/Control Systems Application Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
