Pathfinder LE, 4WD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
DTC P0171, P0174: Fuel Injection System Function
›
Wiring Diagram
›
Bank 1
Bank 1

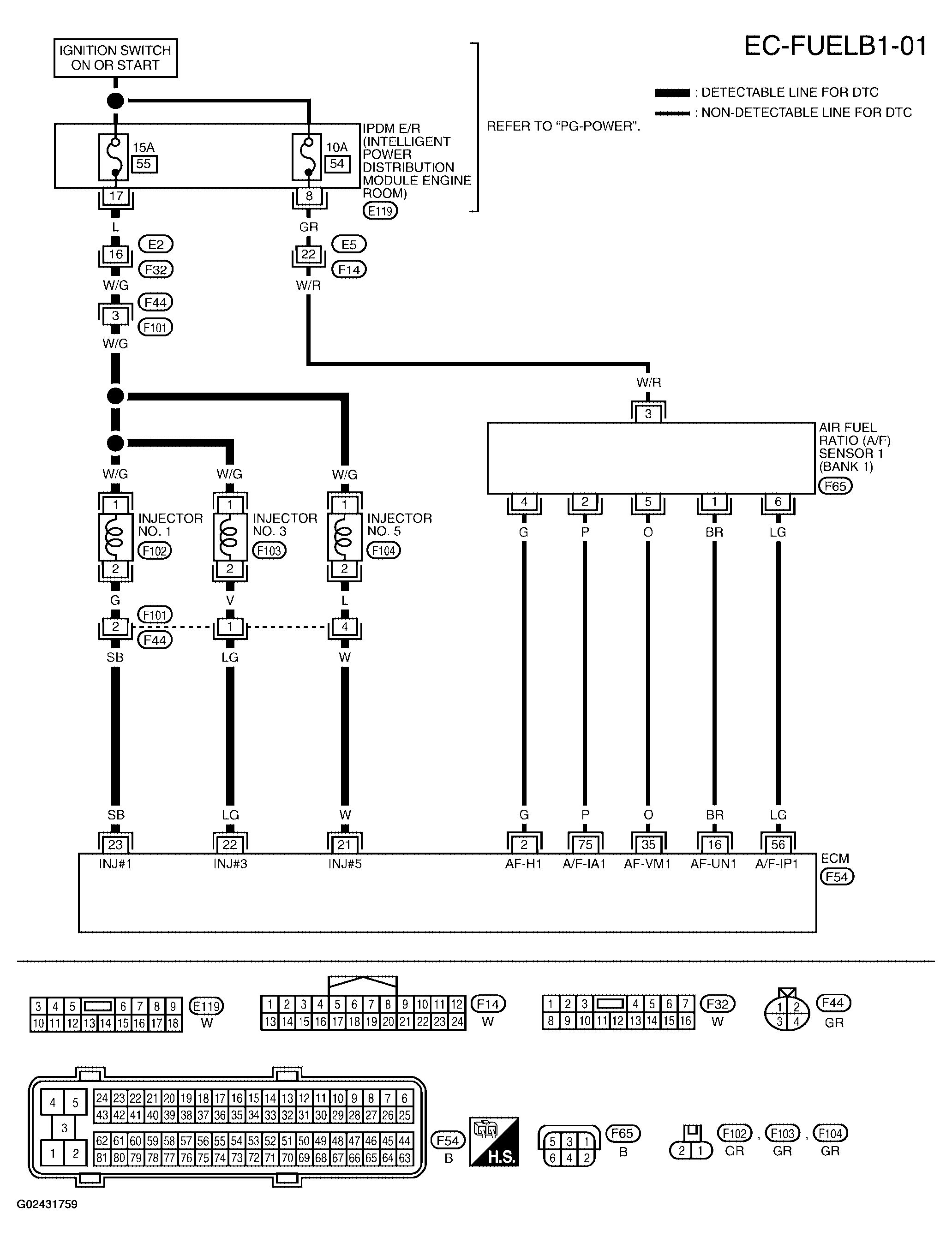

Fig 1: Wiring Diagram - Fuel Injection System, Bank 1 (EC-FUELB1-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
