Bank 2

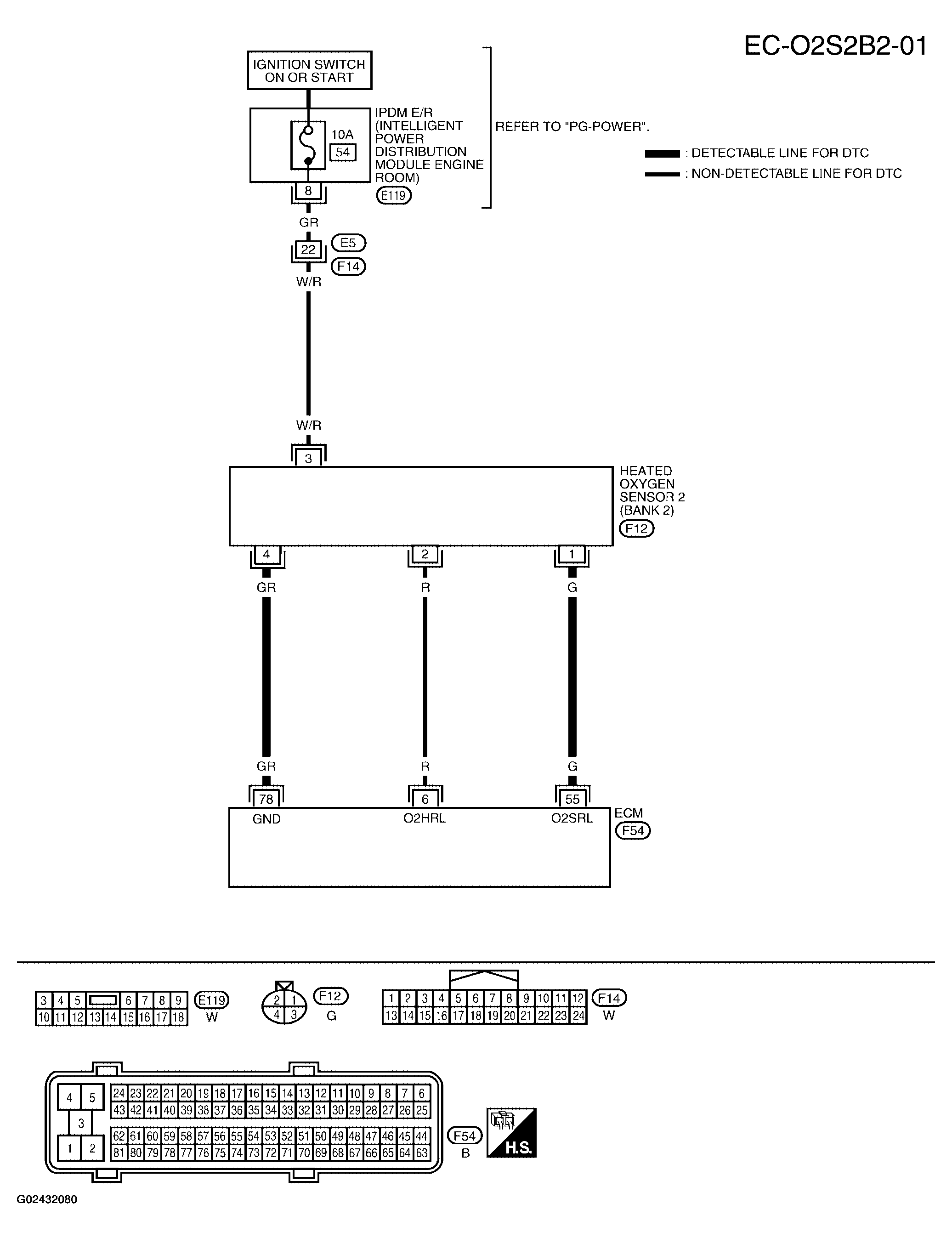

Fig 1: Wiring Diagram - Heated Oxygen Sensor 2 (Bank 2) (EC-O2S2B2-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

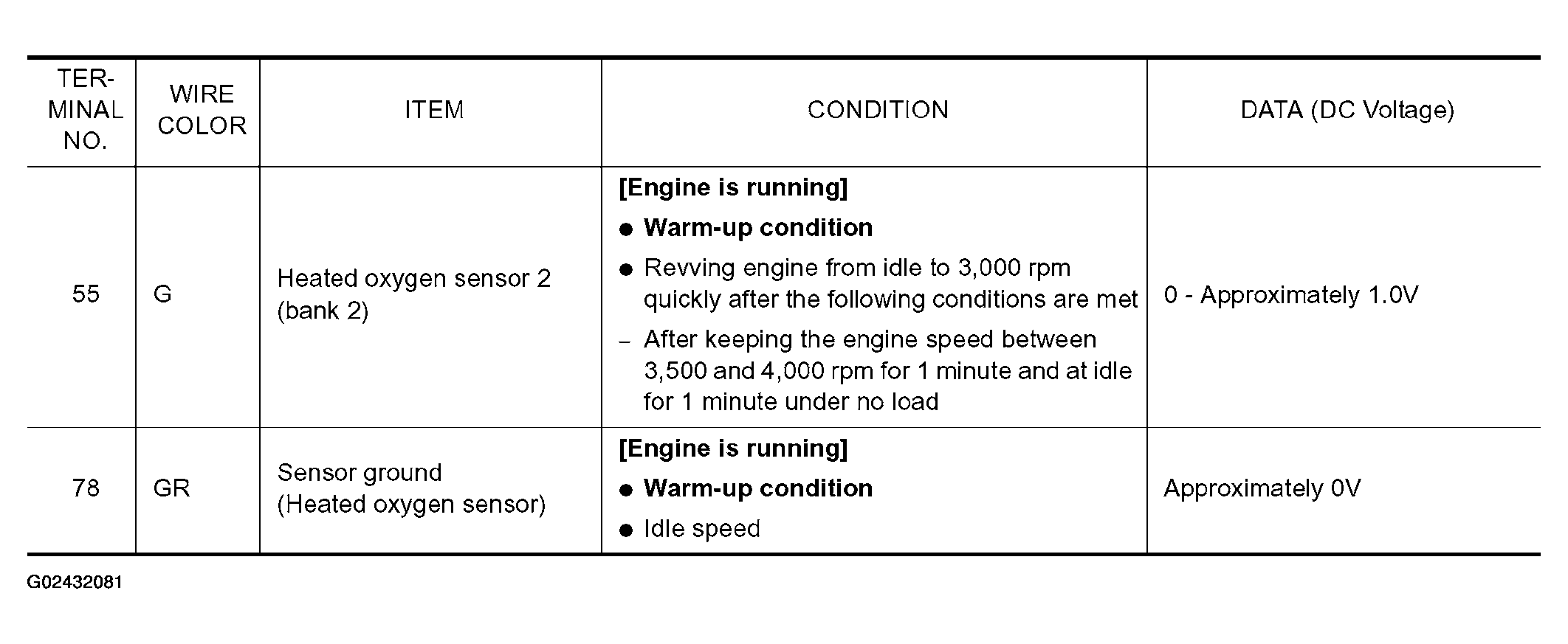

Fig 2: ECM Terminal Voltage Reference Chart - HO2S, Bank 2

Courtesy of NISSAN MOTOR CO., U.S.A.
