System Description
›
System Components
System Components

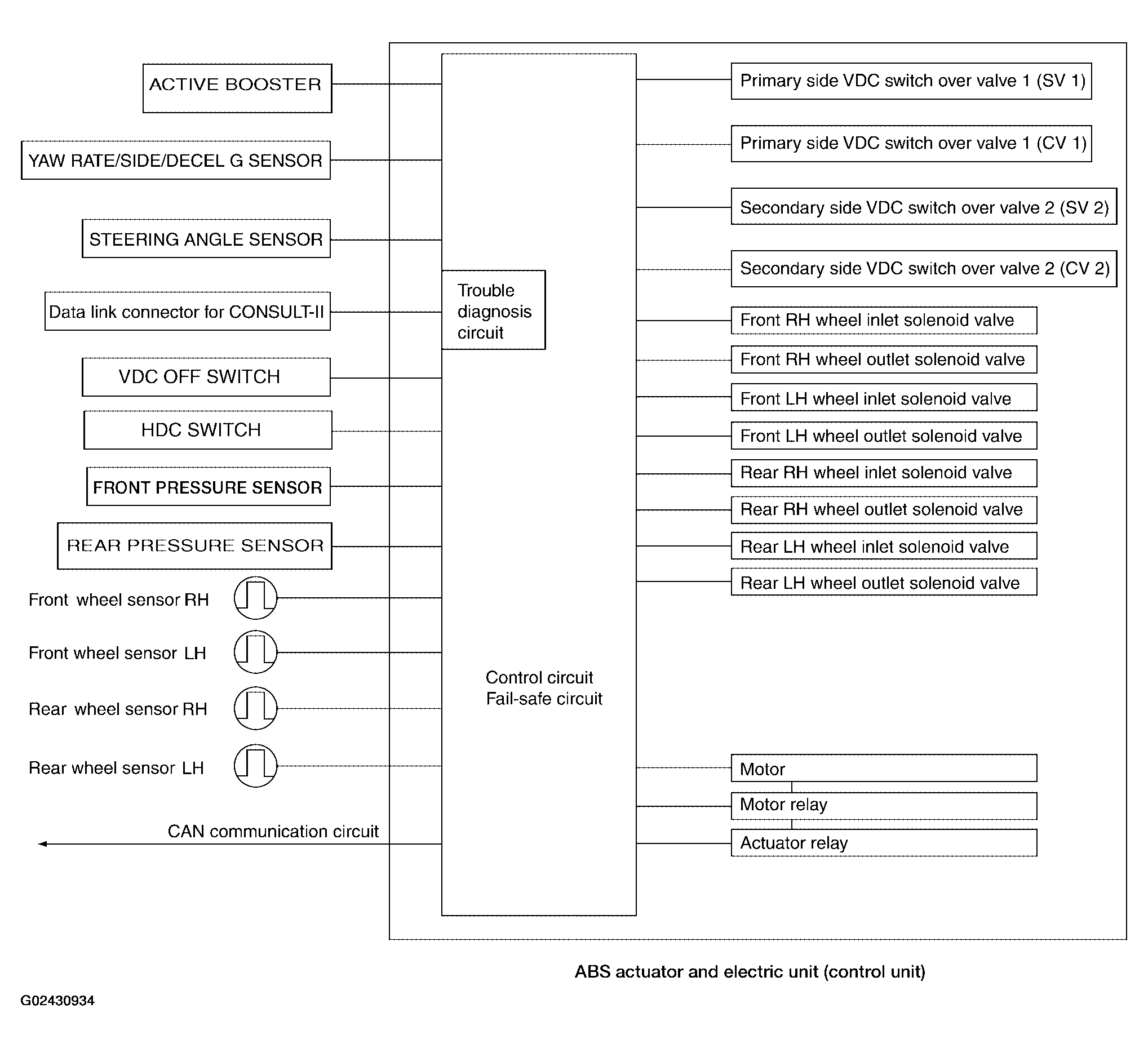

Fig 1: System Description Block Diagram - HDC/HSA/VDC/TCS/ABS
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
