DTC P0117, P0118: ECT Sensor: Wiring Diagram

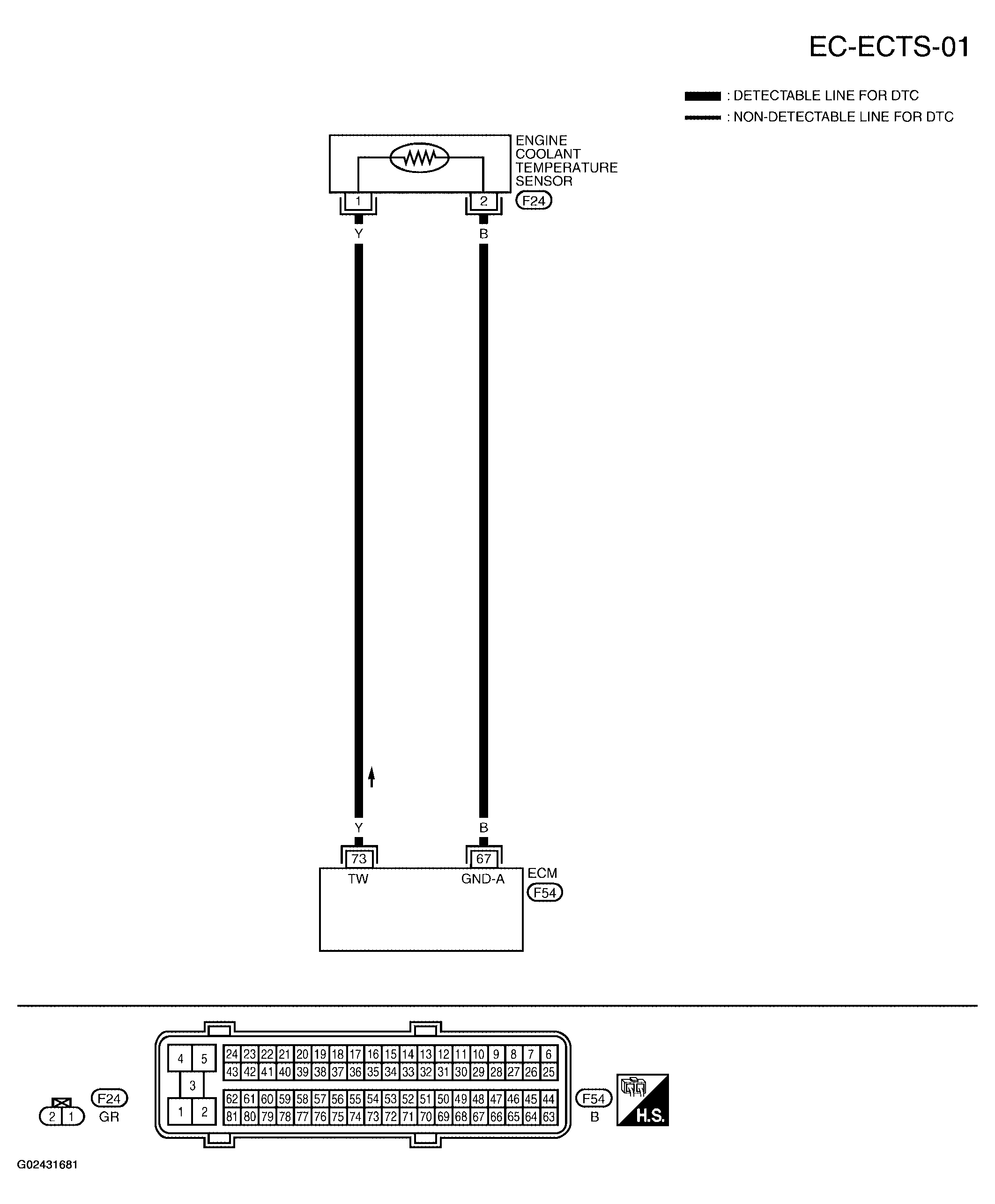

Fig 1: Wiring Diagram - Engine Coolant Temperature Sensor (EC-ECTS-01)
G02431681Courtesy of NISSAN MOTOR CO., U.S.A.
