Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to GROUND INSPECTION .

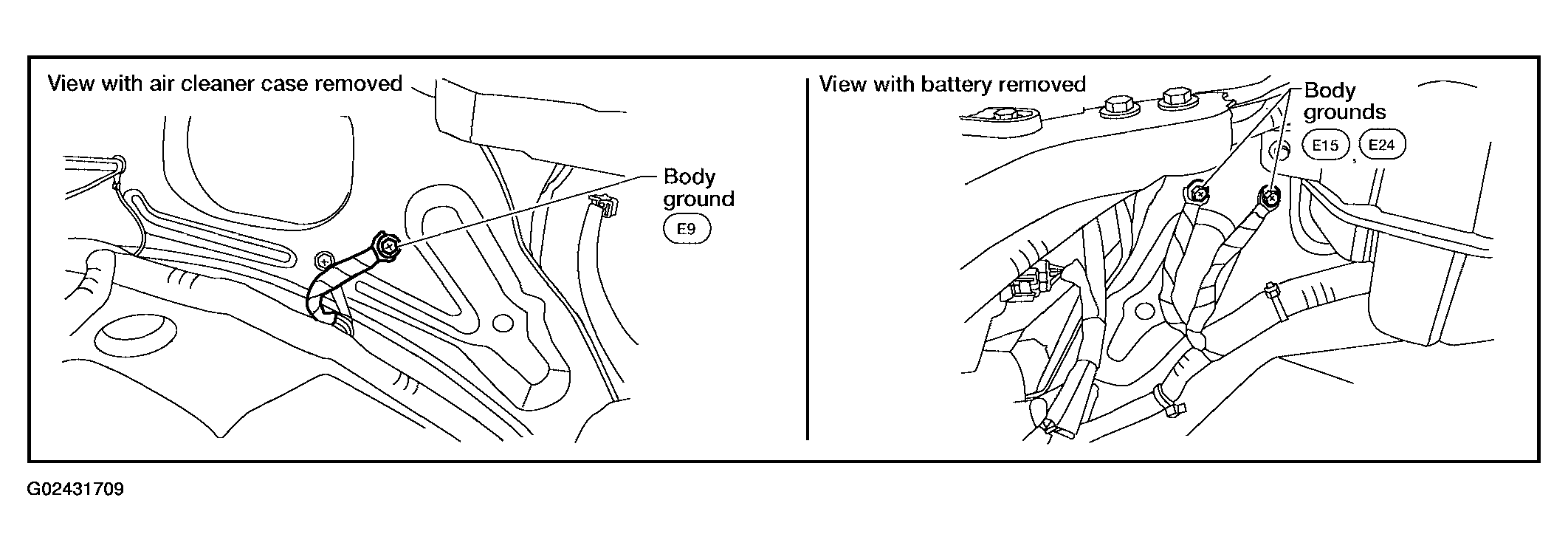

   Fig 1: Tightening Ground Screws On Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 2.
• NG: Repair or replace ground connections.

Refer to COMPONENT INSPECTION .

OK or NG

• OK: GO TO 3.
• NG: Replace mass air flow sensor (with intake air temperature sensor).

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

Refer to WIRING DIAGRAM .

• : INSPECTION END
