On Board Diagnosis Logic

NOTE: If DTC P0462 or P0463 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

This diagnosis indicates the former, to detect open or short circuit malfunction.

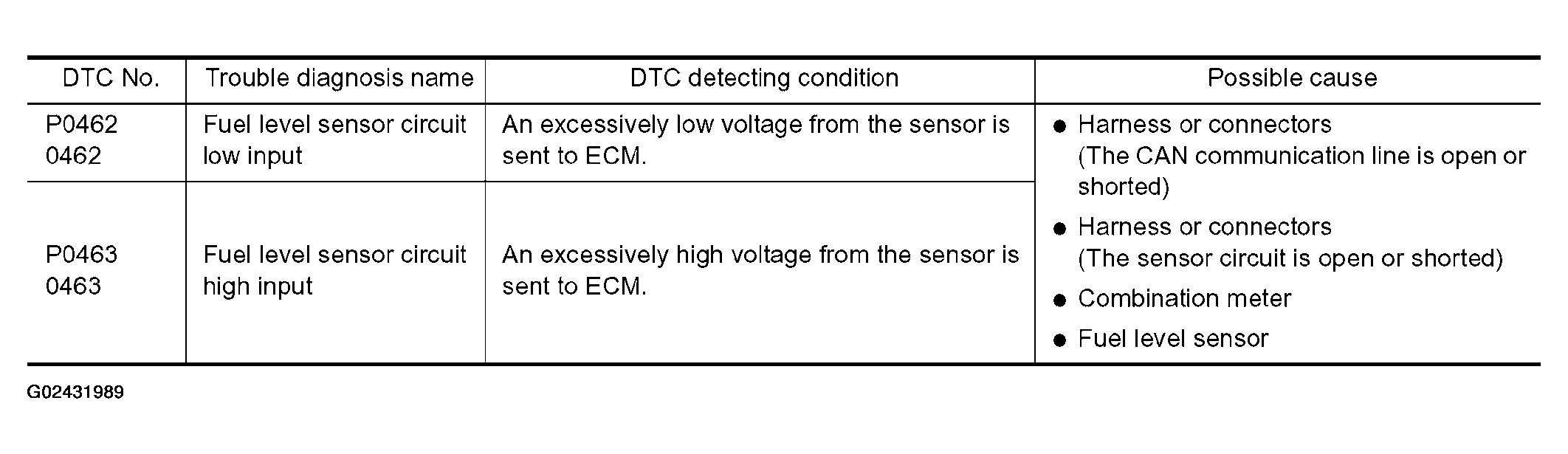

Fig 1: DTC P0462 And P0463 Condition/Possible Cause Diagnostic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
