DTC P1217: Engine Over Temperature
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

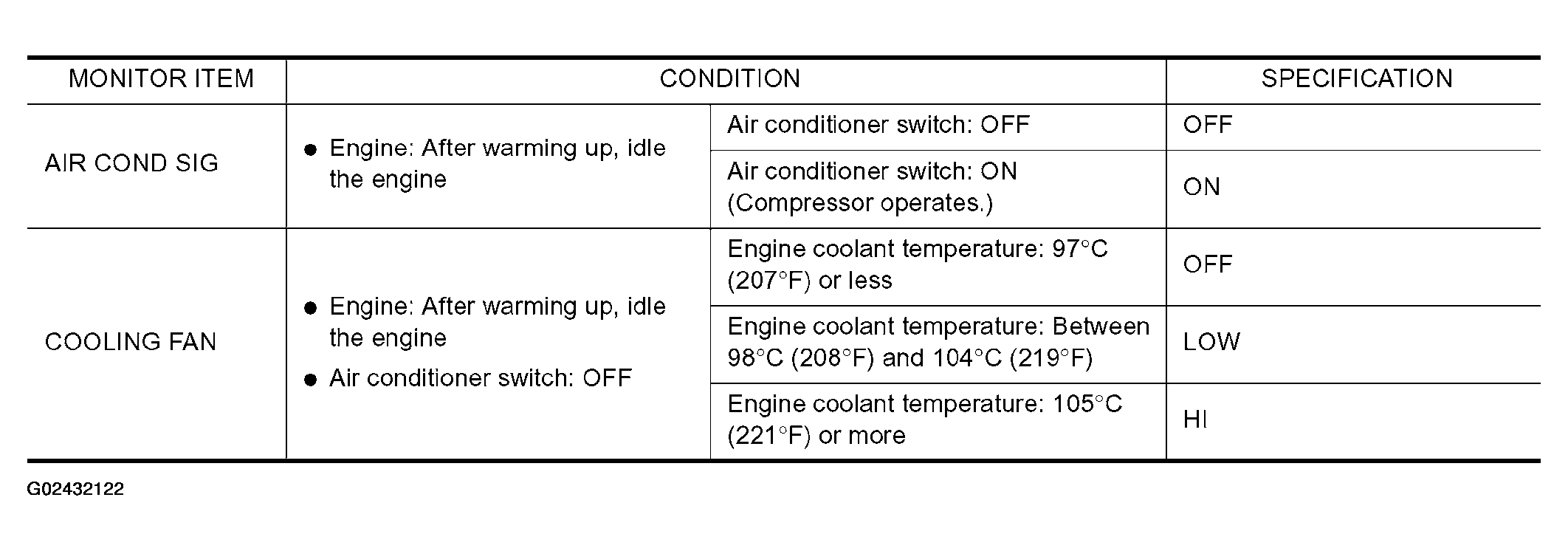

Fig 1: CONSULT-II Reference Value Chart - Cooling Fans
Courtesy of NISSAN MOTOR CO., U.S.A.
