ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 17 and 18 with pushing each switch.

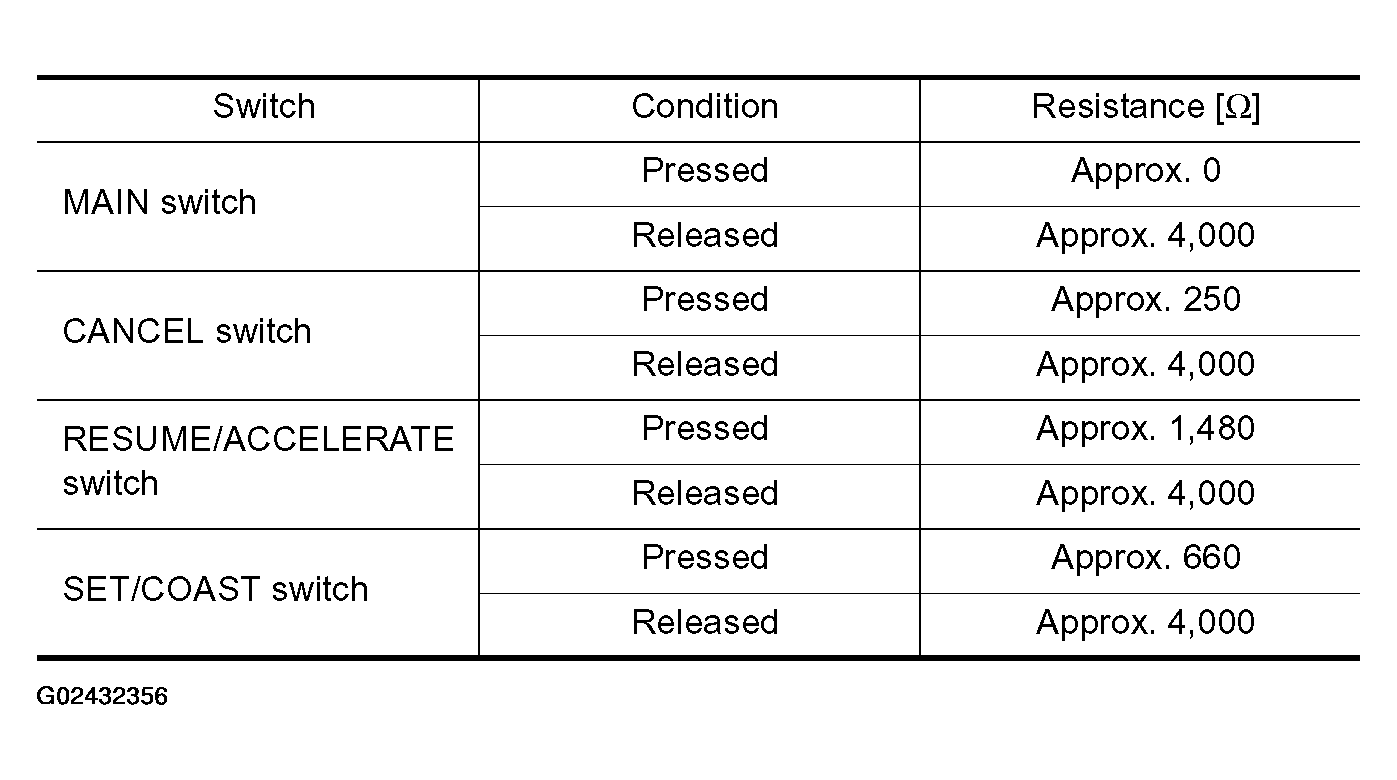

    Fig 1: Combination Switch Terminals 17 & 18 Resistance Specification Chart
    G02432356Courtesy of NISSAN MOTOR CO., U.S.A.

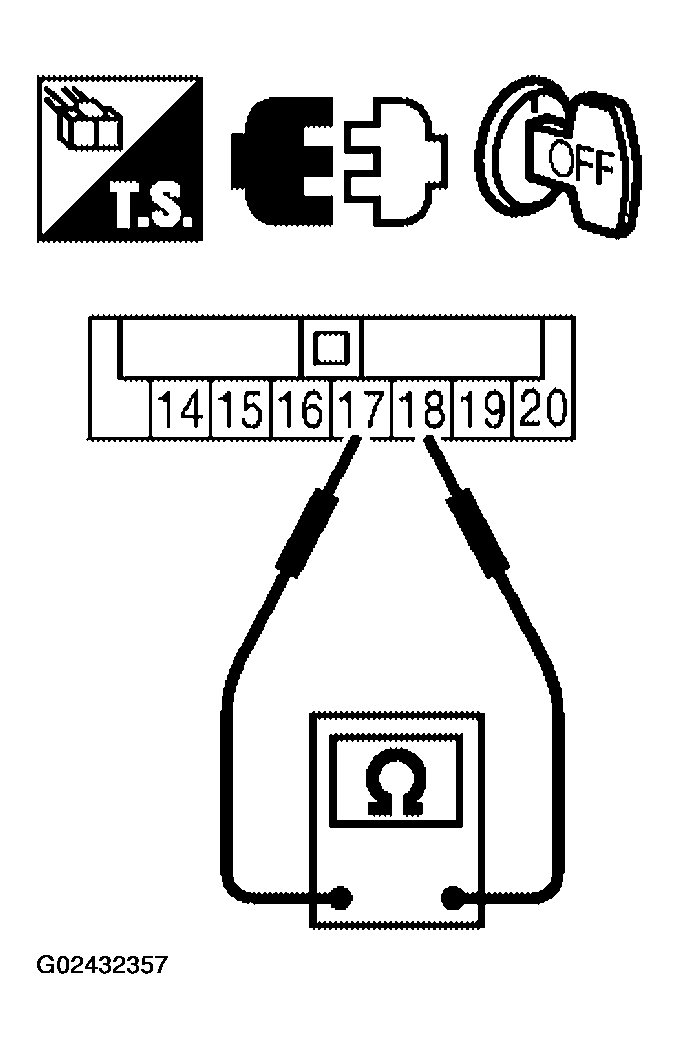

    Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 17 And 18
    G02432357Courtesy of NISSAN MOTOR CO., U.S.A.
