Pathfinder SE, RWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
Engine Control System
›
Fuel Cut Control (at No Load and High Engine Speed)
›
Input/Output Signal Chart
Input/Output Signal Chart

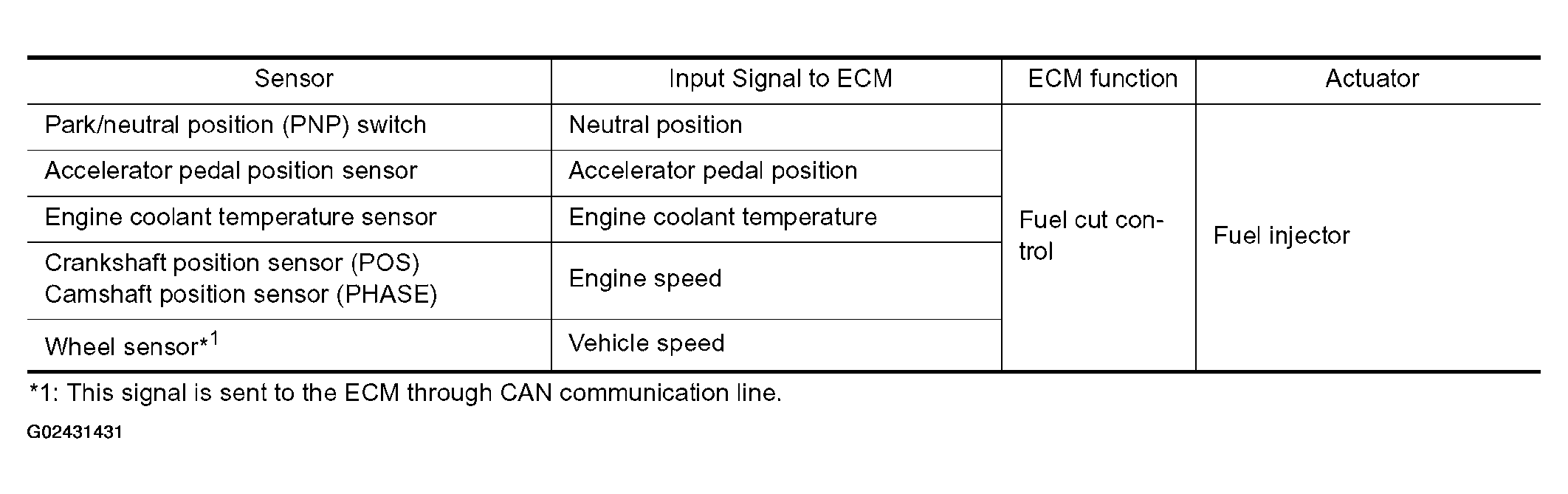

Fig 1: Input/Output Signal Chart - Fuel Cut Control (At No Load And High Engine Speed)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
