Removal and Installation: Notes

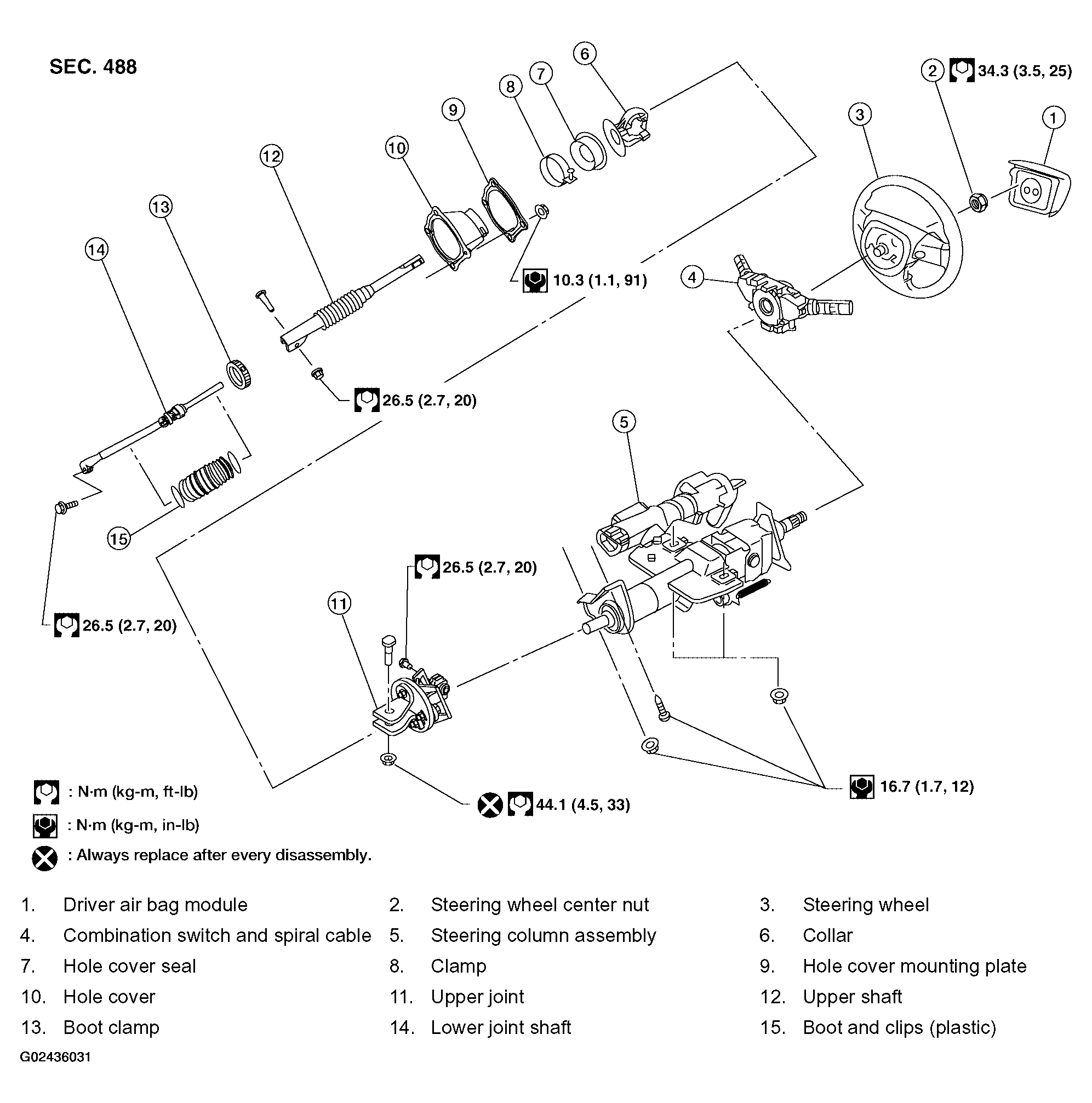

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

• Do not exert any axial load or impact to the steering column.
• Do not move the steering gear while the steering column assembly is removed.
