DTC P0117, P0118: ECT Sensor: Wiring Diagram

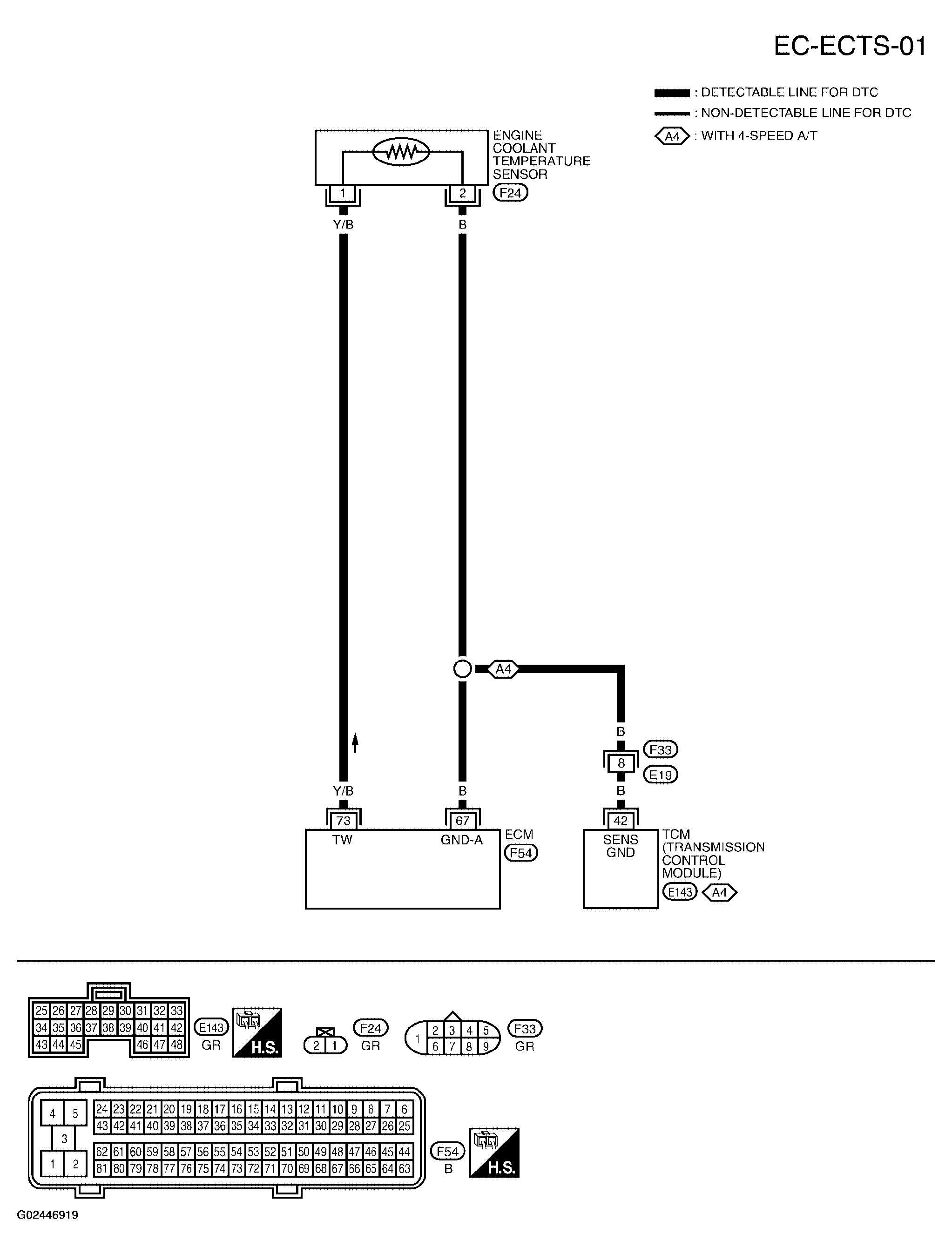

Fig 1: Wiring Diagram - ECT Sensor - EC-ECTS-01
G02446919Courtesy of NISSAN MOTOR CO., U.S.A.
