With Consult-II

  1. Start engine (TCS switch or VDC switch OFF).
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.

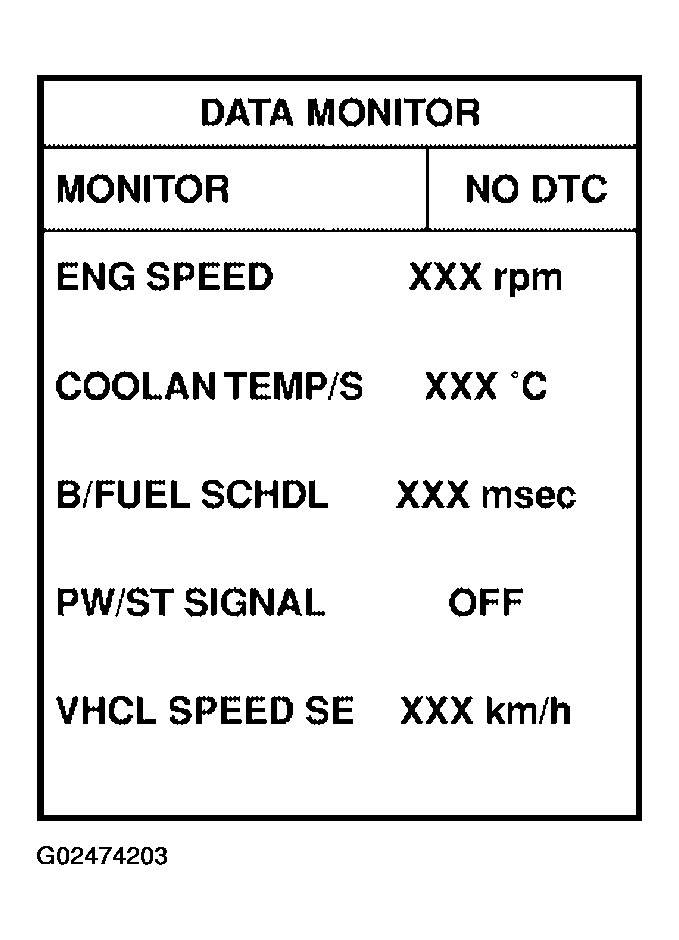

    Fig 1: CONSULT-II Data Monitor
    G02474203Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Warm engine up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.
    ENGINE SPEED CONDITION TABLE

    Item Specification
    ENG SPEED 1, 600 - 6, 000 RPM
    COOLAN TEMP/S More than 70°C (158°F)
    B/FUEL SCHDL 5.5 - 31.8 msec
    Selector lever Except P or N position
    PW/ST SIGNAL OFF
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
