Diagnostic Trouble Codes No Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, CAN COMMUNICATION LINE ".

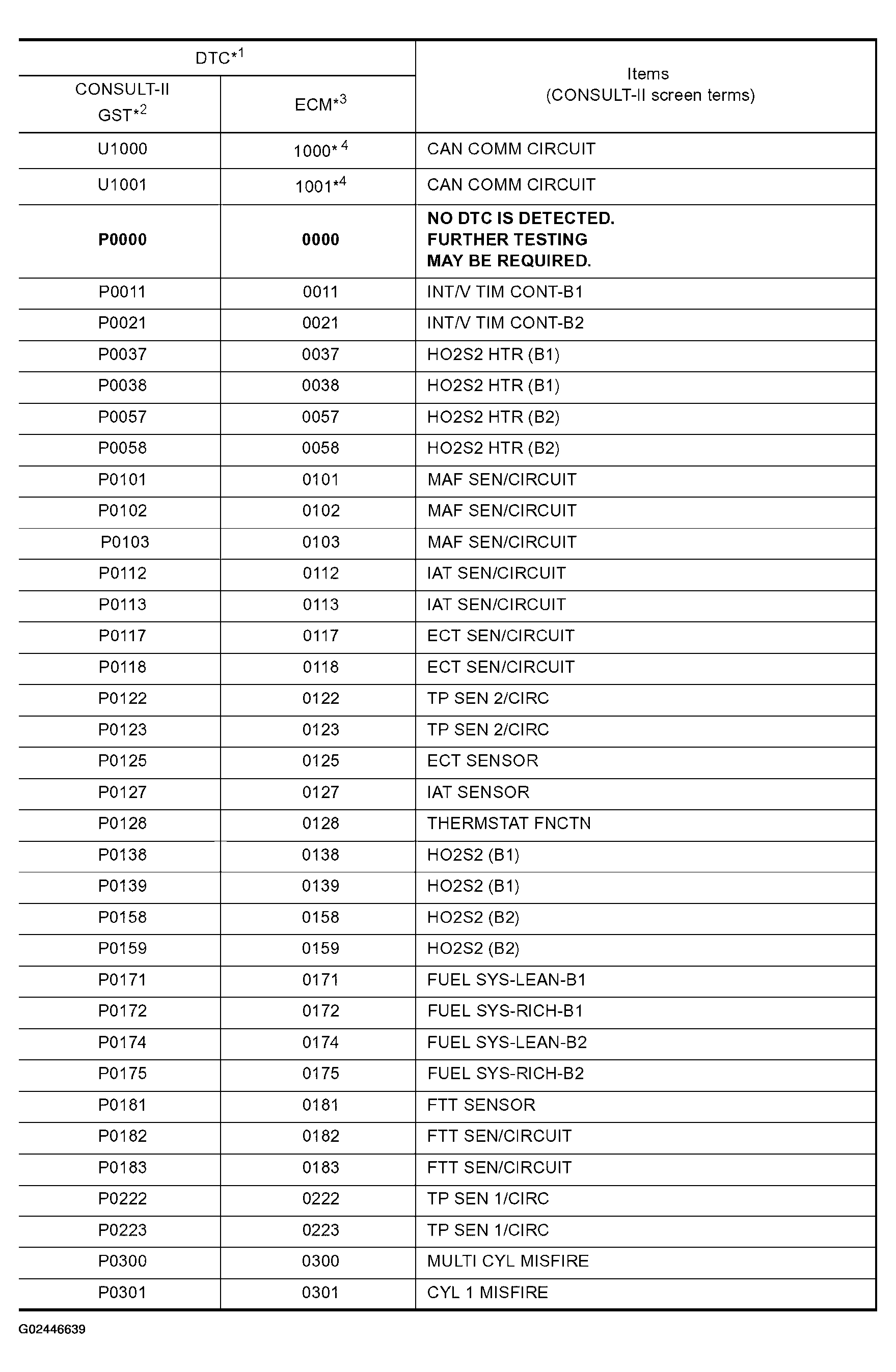

Fig 1: DTC Index (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

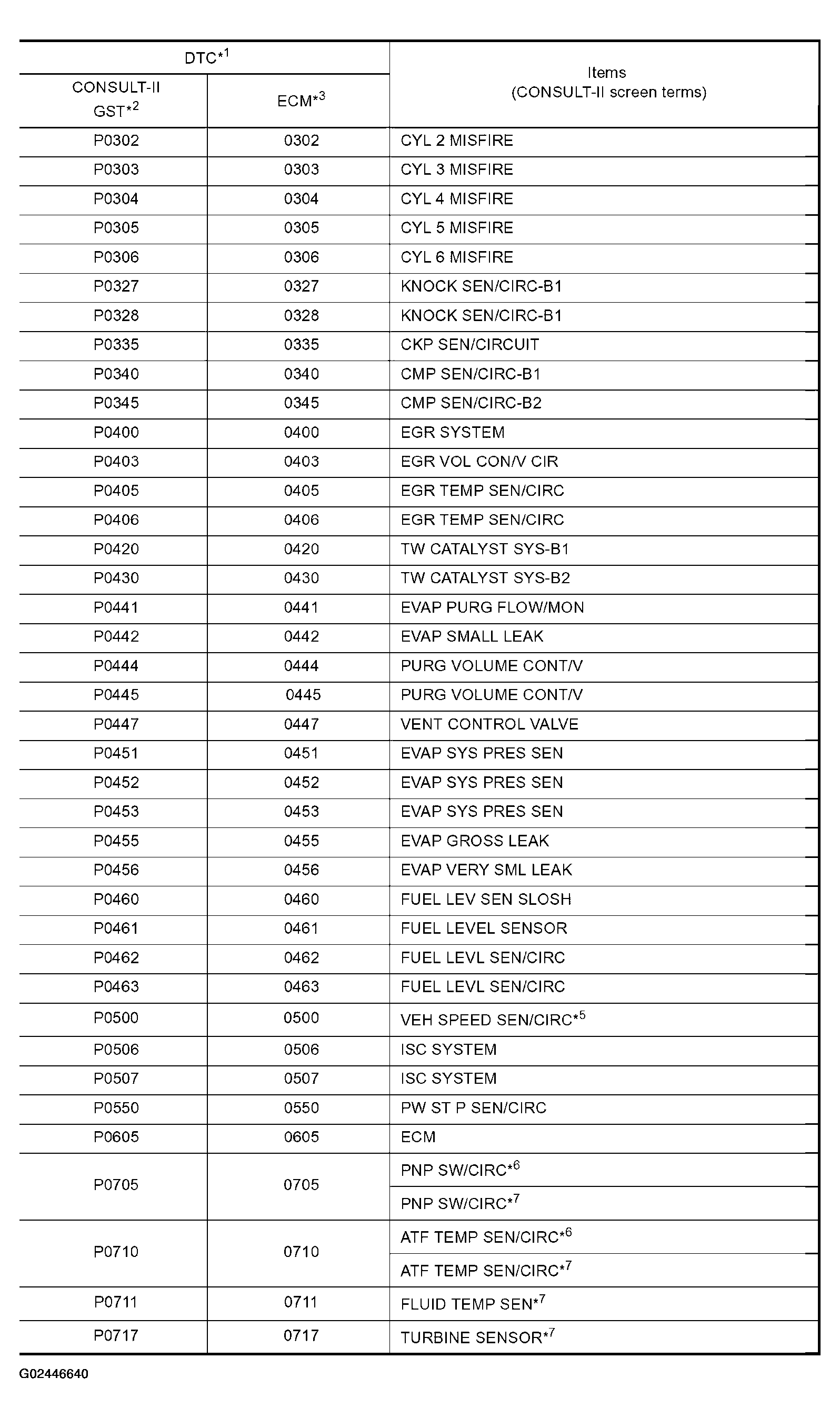

Fig 2: DTC Index (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: DTC Index (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: DTC Index (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

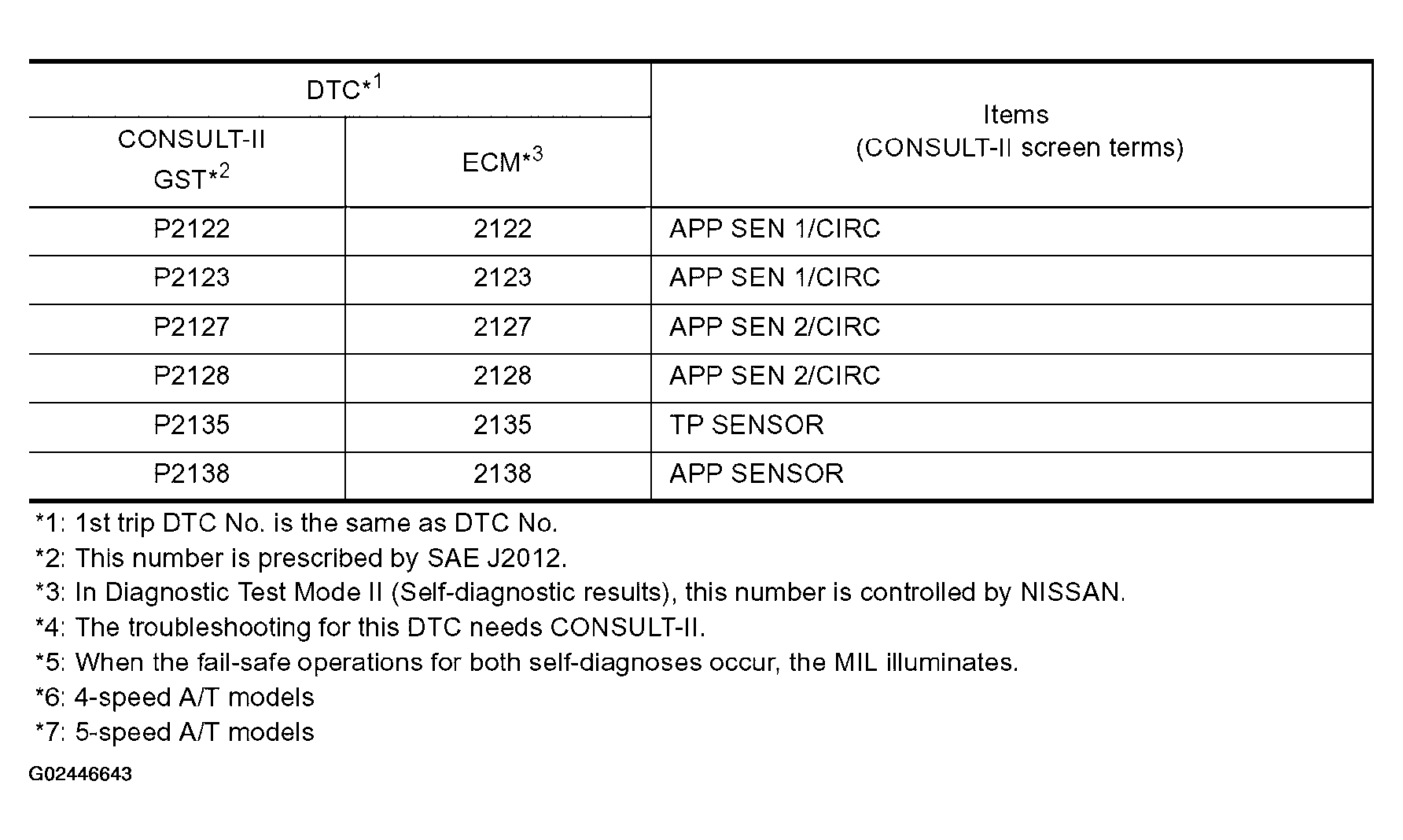

Fig 5: DTC Index (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
