EVAP Service Port

Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.

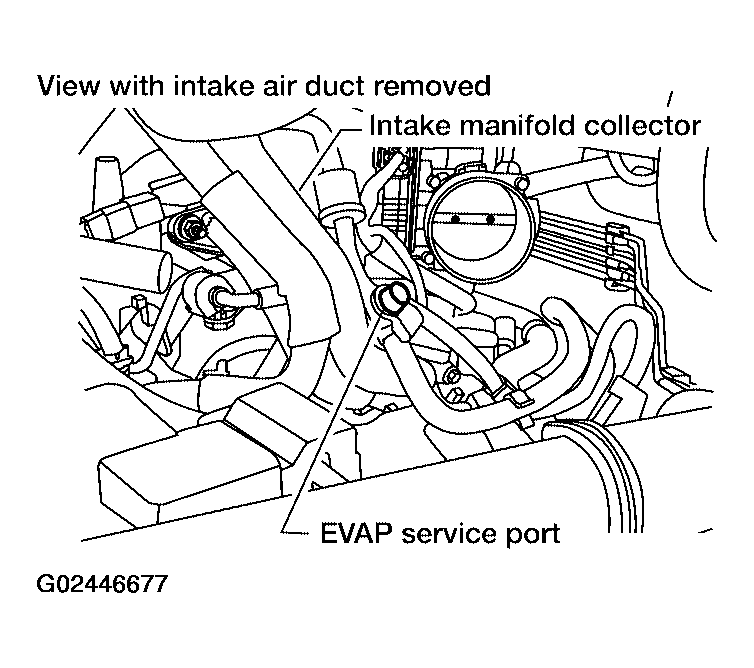

Fig 1: Inspecting EVAP Service Port For Leakage

Courtesy of NISSAN MOTOR CO., U.S.A.
