Trouble Diagnosis Introduction
›
Work Flow
›
Overall Sequence
Overall Sequence

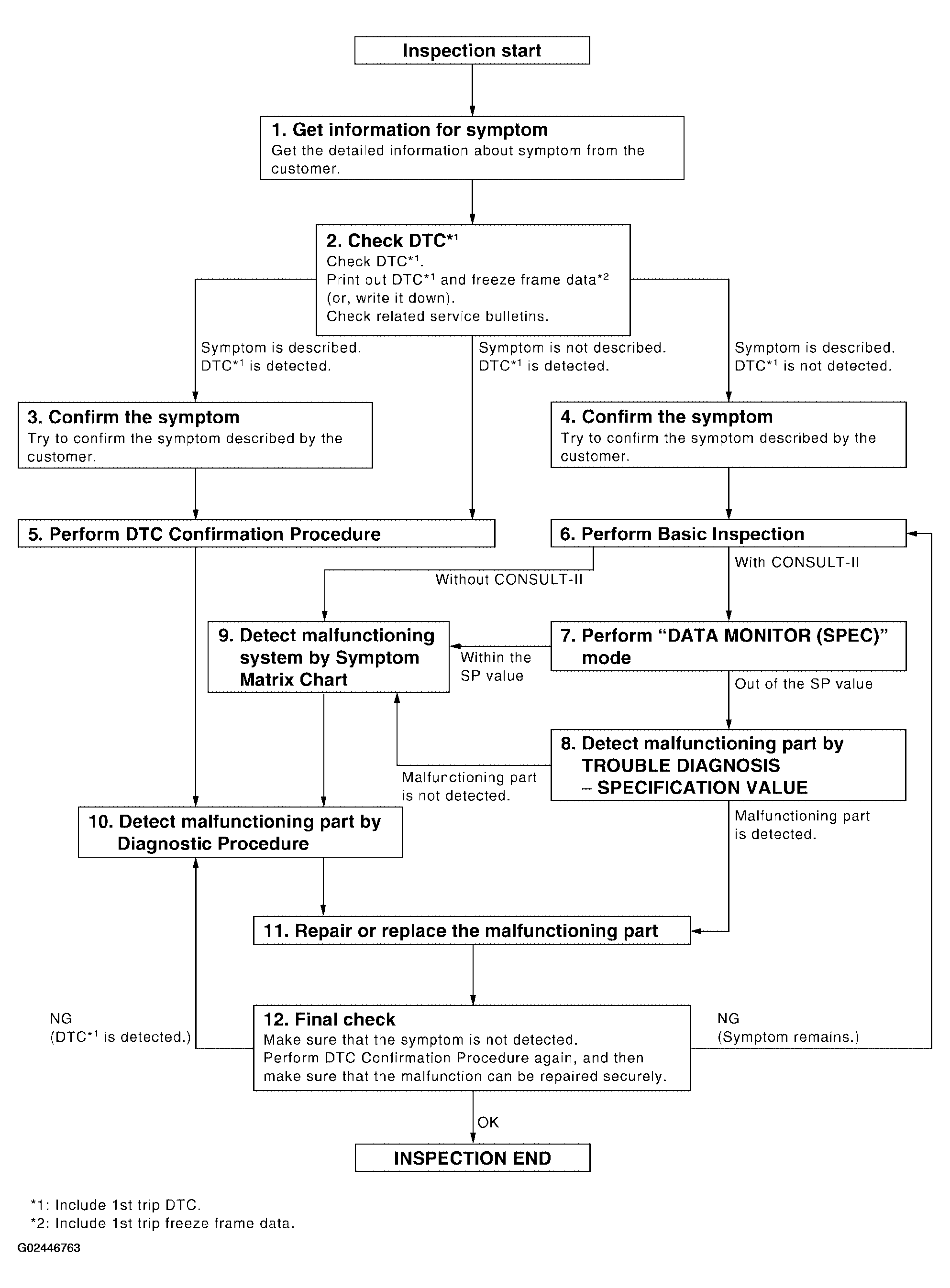

Fig 1: Trouble Diagnosis Work Flow Overall Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
