Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
Touch item to be tested, and check operation.
Touch "START".

Touch "STOP" while testing to stop the operation.

ACTIVE TEST - OPERATION PROCEDURE

Test item	CONSULT-II screen display	Description
Tail lamp relay output	TAIL LAMP	Allows tail lamp relay to operate by switching operation ON-OFF at your option.

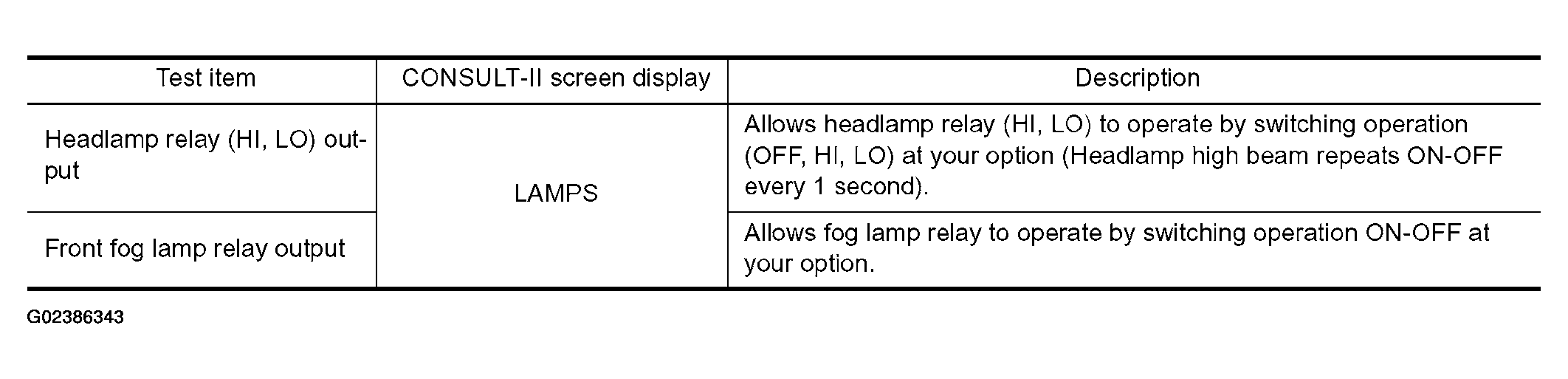

Fig 1: Active Test Operation Procedure - Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
