Removal and Installation
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

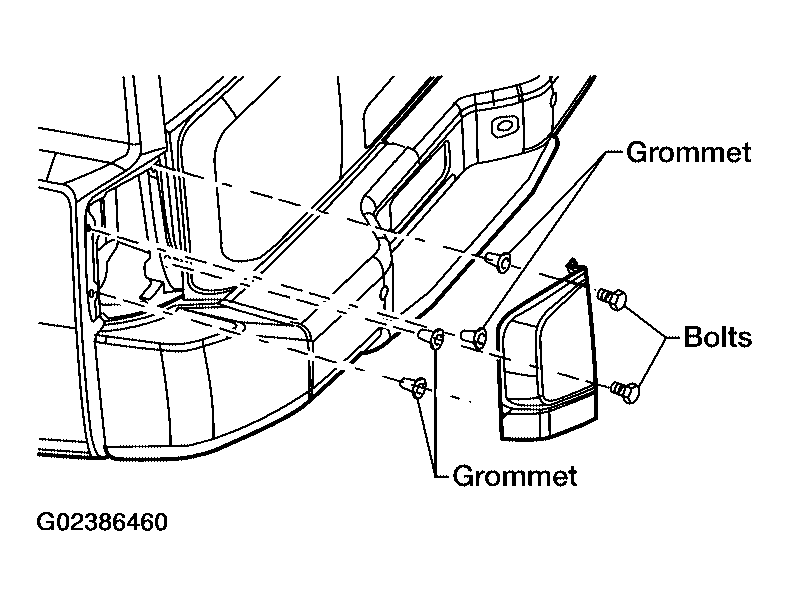

- Remove rear combination lamp mounting bolts.
- Pull rear combination lamp to remove from the vehicle.
- Disconnect rear combination lamp connectors.
- Rear combination lamp mounting bolts: 2.4 Nm (0.24 kg-m, 21 in-lb)
Installation is in the reverse order of removal.
