Method A

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach timing light to loop wire as shown.

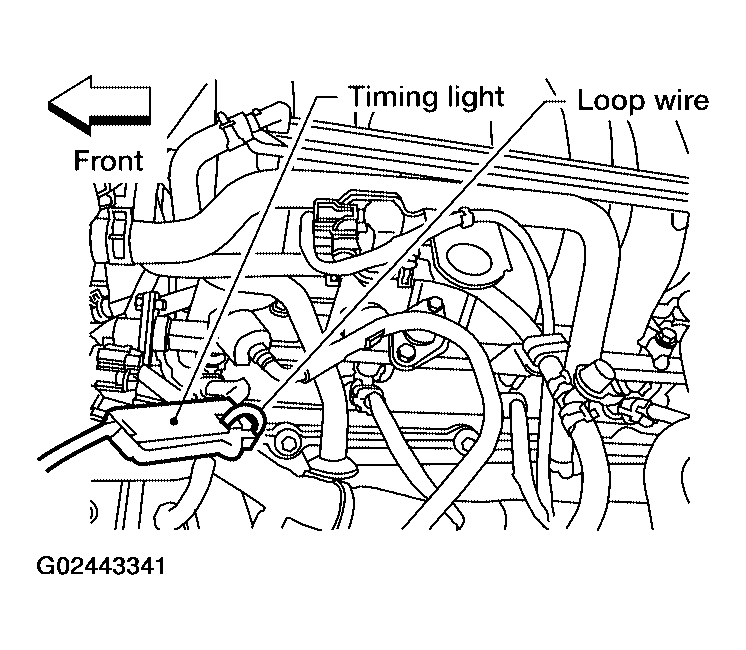

    Fig 1: Identifying Timing Light To Loop Wire
    G02443341Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

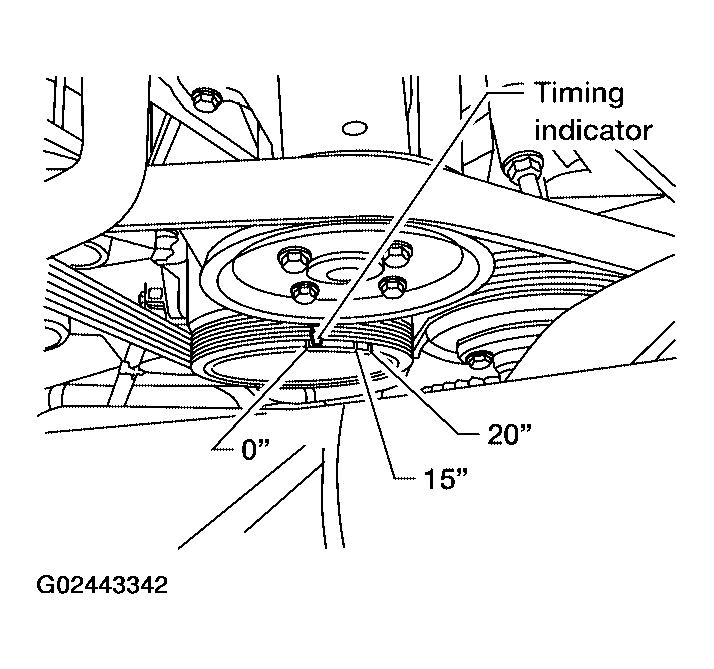

    Fig 2: Identifying Timing Indicator
    G02443342Courtesy of NISSAN MOTOR CO., U.S.A.
