Method B

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ignition coil No. 1.

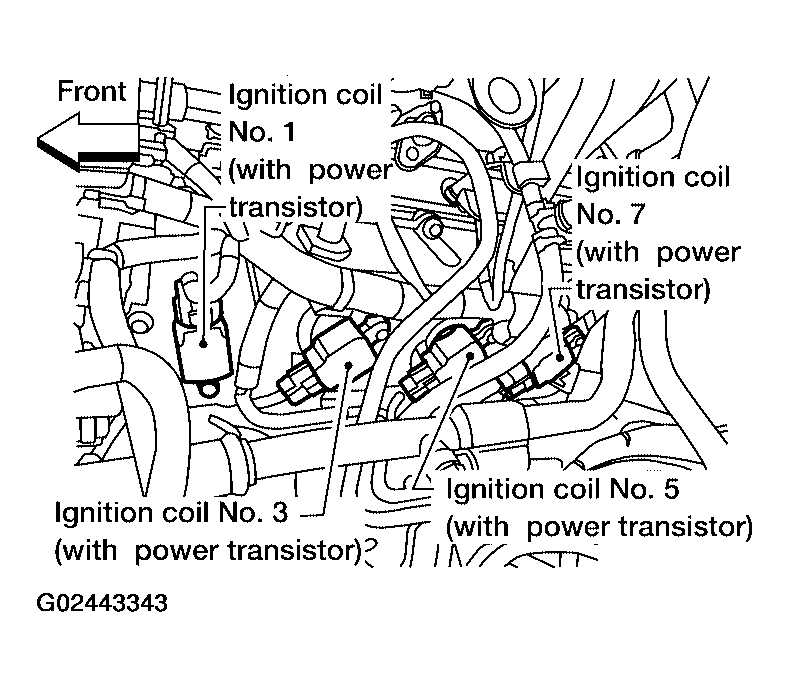

    Fig 1: Removing Ignition Coil No. 1
    G02443343Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect ignition coil No. 1 and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

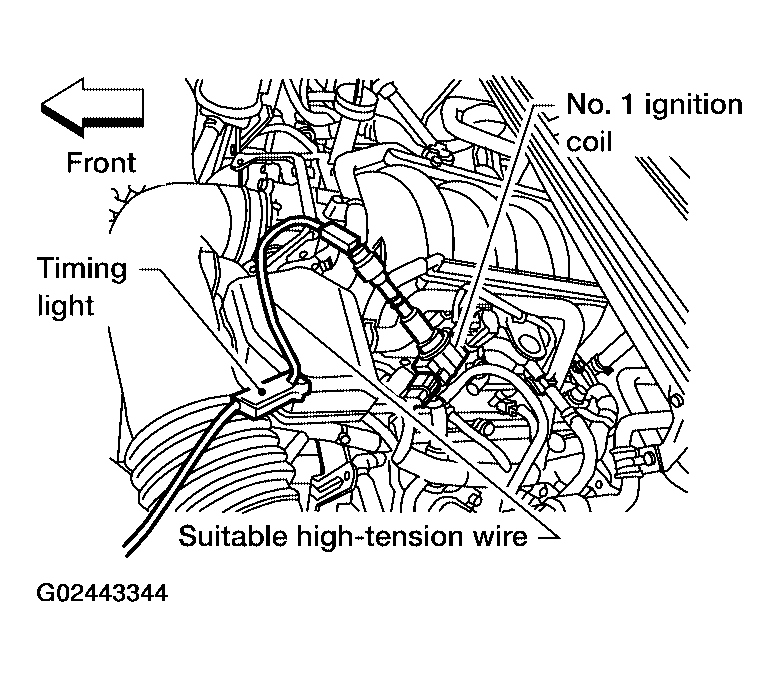

    Fig 2: Connecting Ignition Coil No. 1
    G02443344Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 3: Identifying Suitable High-Tension Wire
    G02443345Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

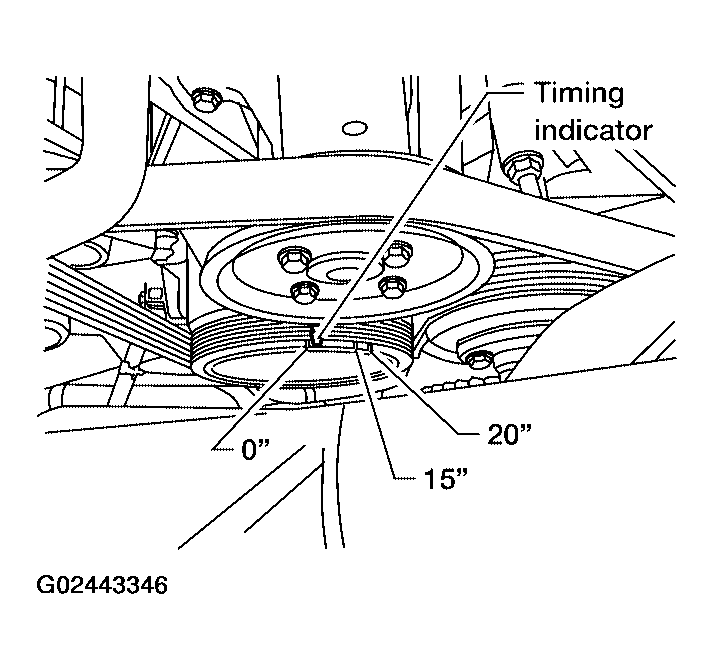

    Fig 4: Identifying Timing Indicator
    G02443346Courtesy of NISSAN MOTOR CO., U.S.A.
