Items Of Each Part

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: CONSULT-II will only display systems the vehicle possesses.

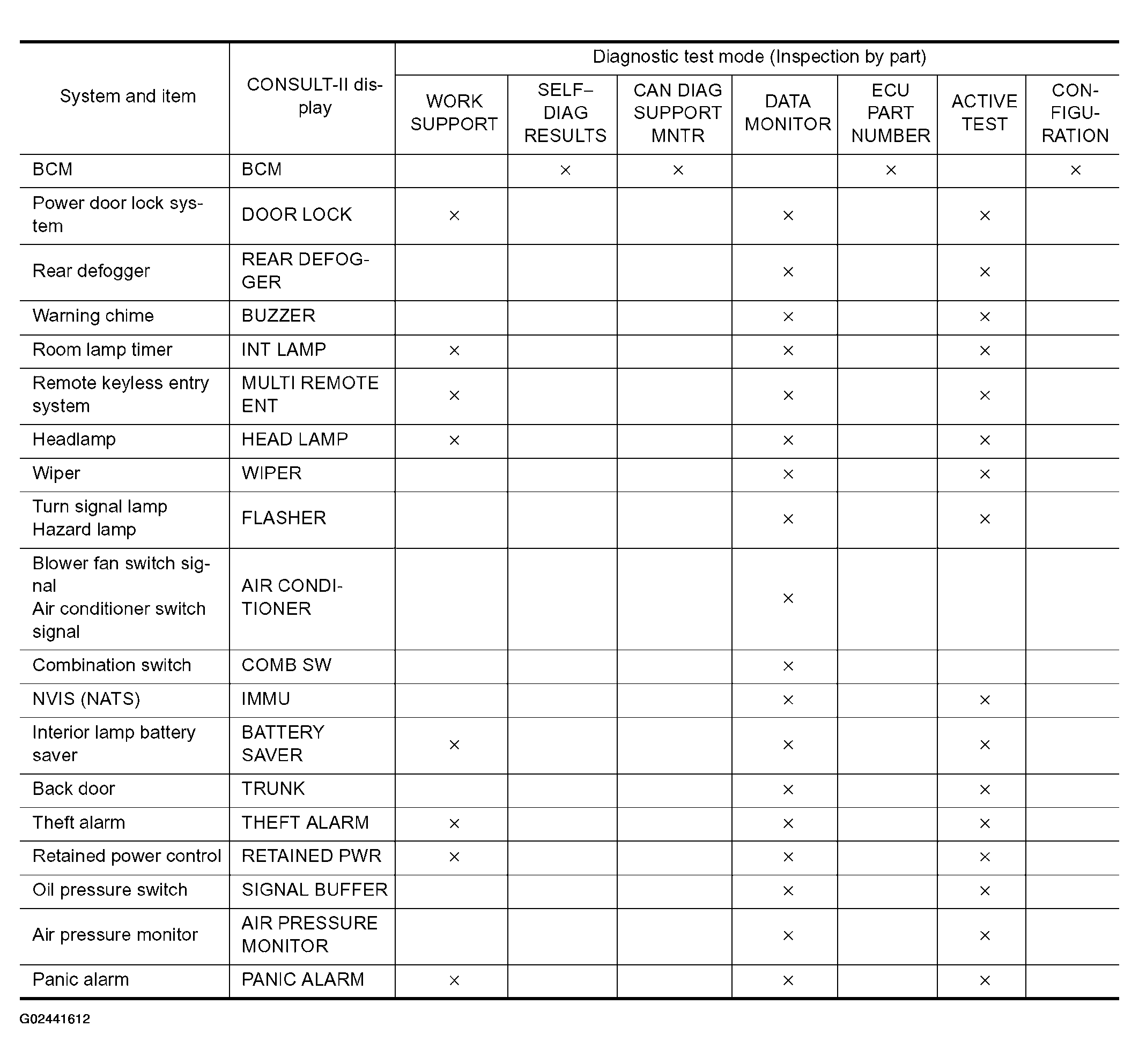

Fig 1: Item Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
