Can Communication Unit: Notes

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Go to CAN SYSTEM when selecting your CAN system type from the following table.

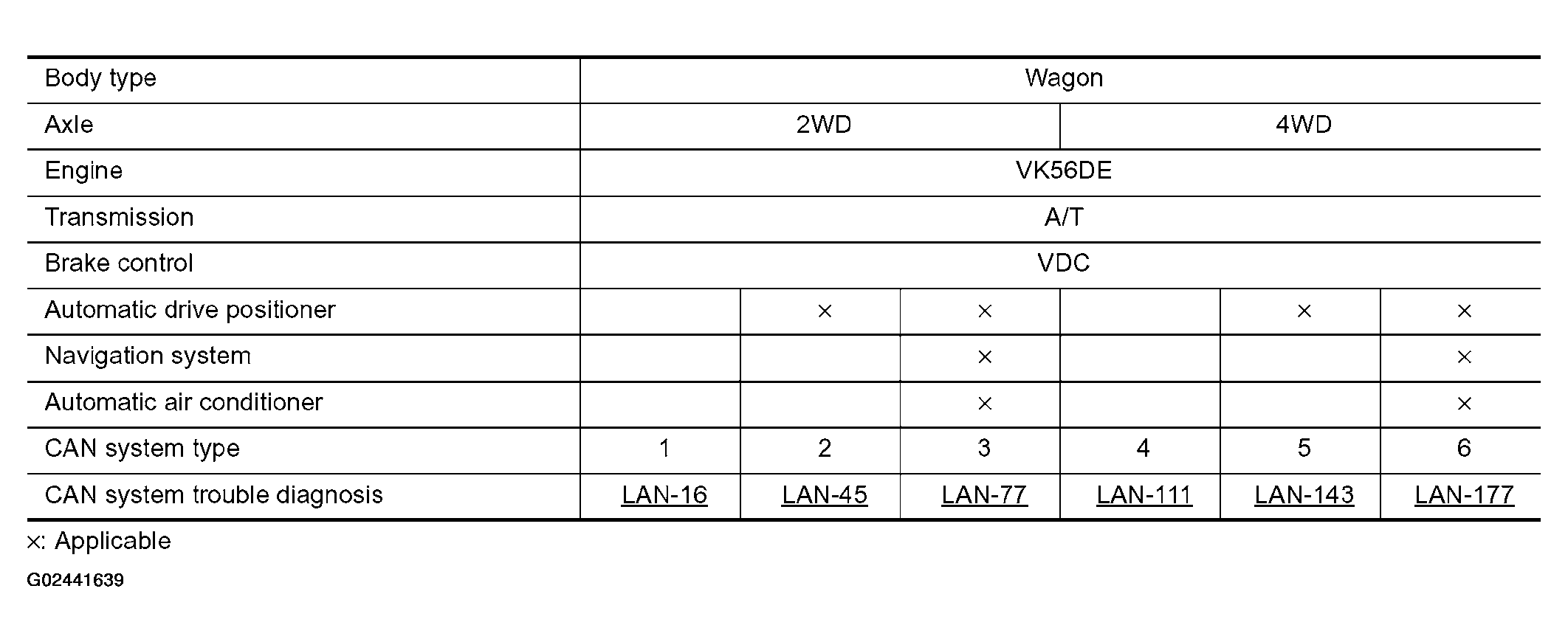

Fig 1: CAN System Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Confirming the presence of the following items helps to identify CAN system type.

Models with automatic drive positioner

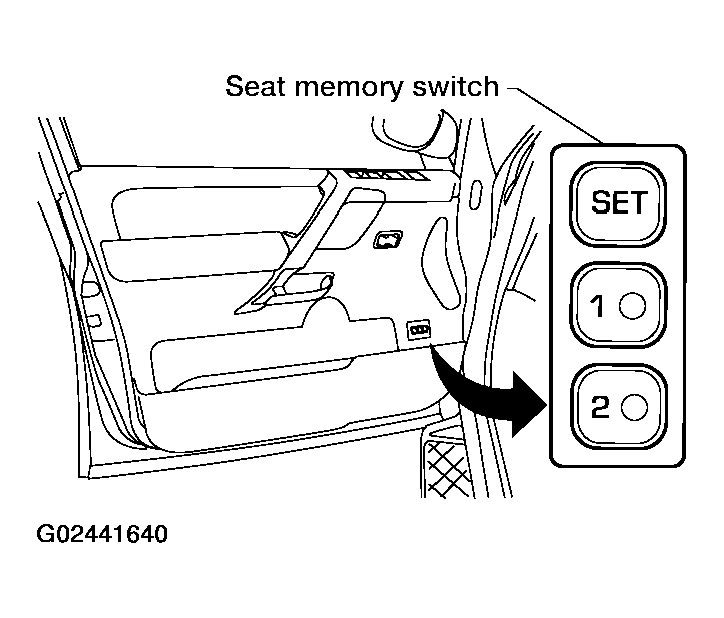

Fig 2: Identifying Set Memory Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with 4WD

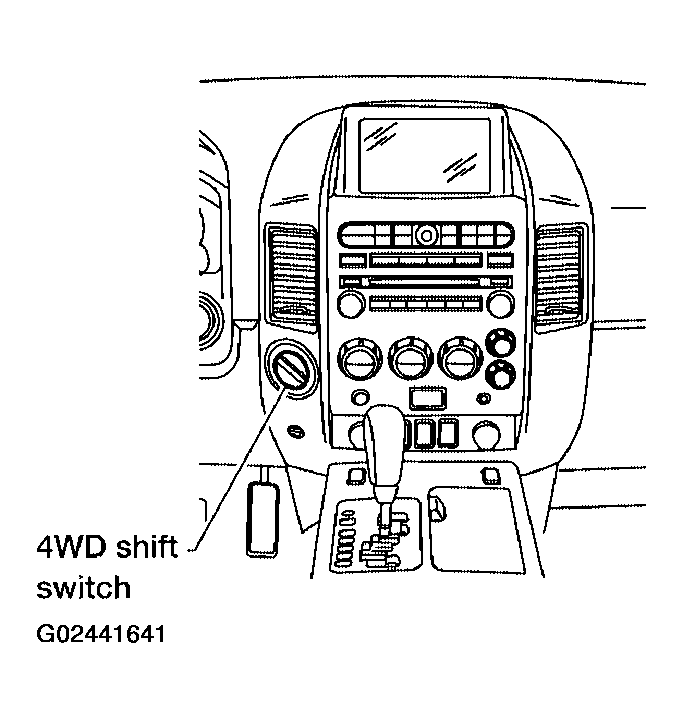

Fig 3: Identifying Set Memory Switch (Models With 4WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Models with navigation system

Fig 4: Identifying Set Memory Switch (Models With Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.
