DTC P0181: FTT Sensor: Wiring Diagram

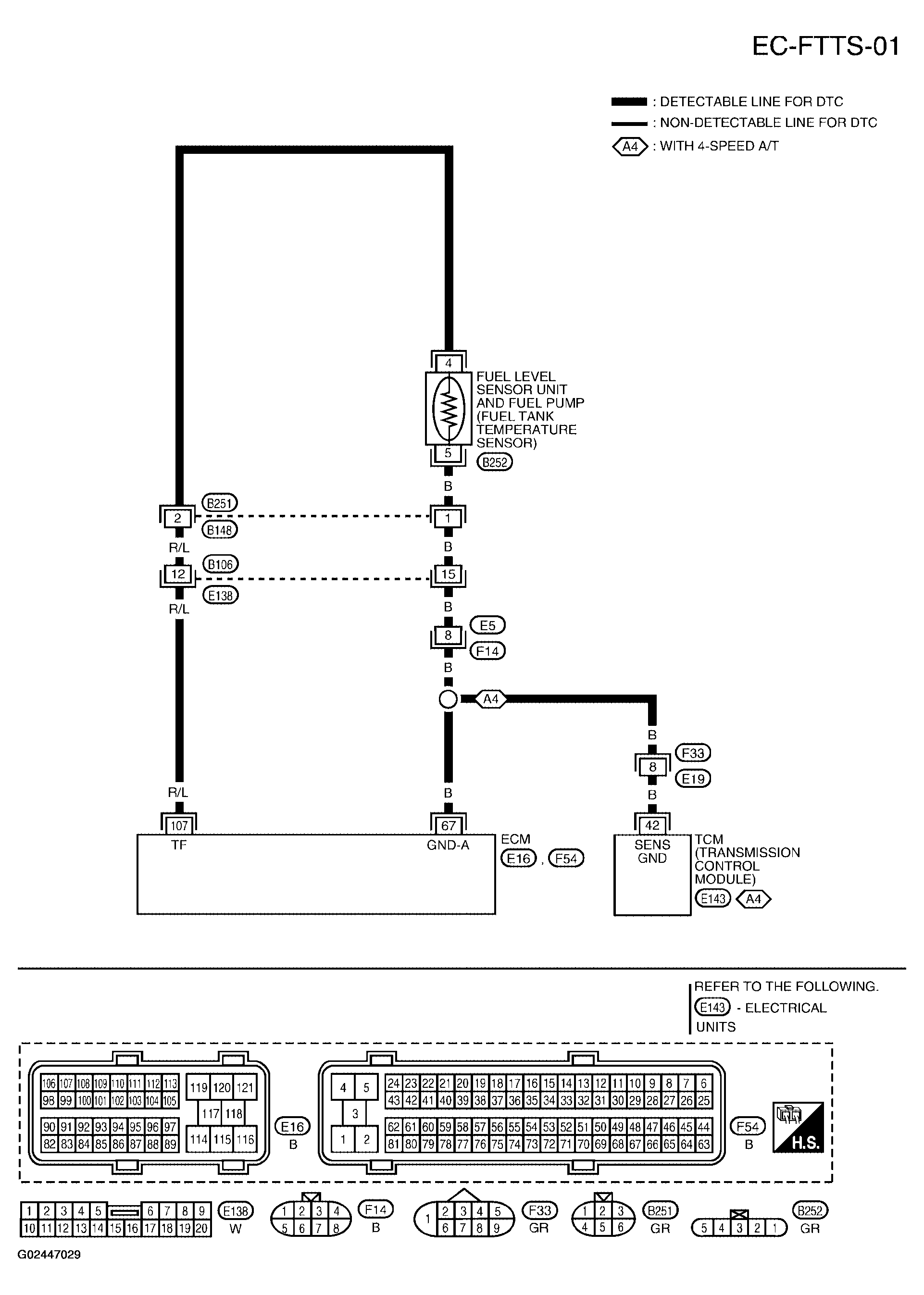

Fig 1: Wiring Diagram - FTT Sensor - EC-FTTS-01
G02447029Courtesy of NISSAN MOTOR CO., U.S.A.
