Engine Control System (QG18DE)
›
DTC P0101: MAF Sensor
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

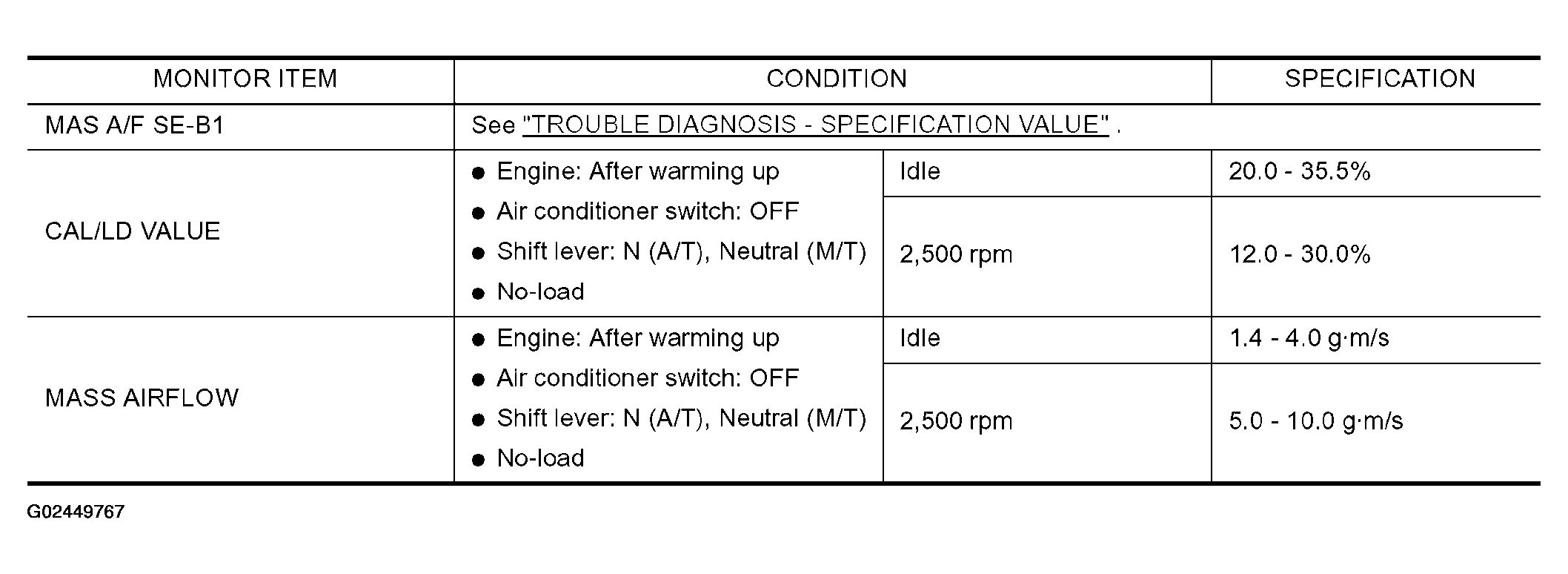

Fig 1: CONSULT-II Monitor Item/Condition - MAF Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
