Engine Control System (QG18DE)
›
DTC P1132: Swirl Control Valve
›
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

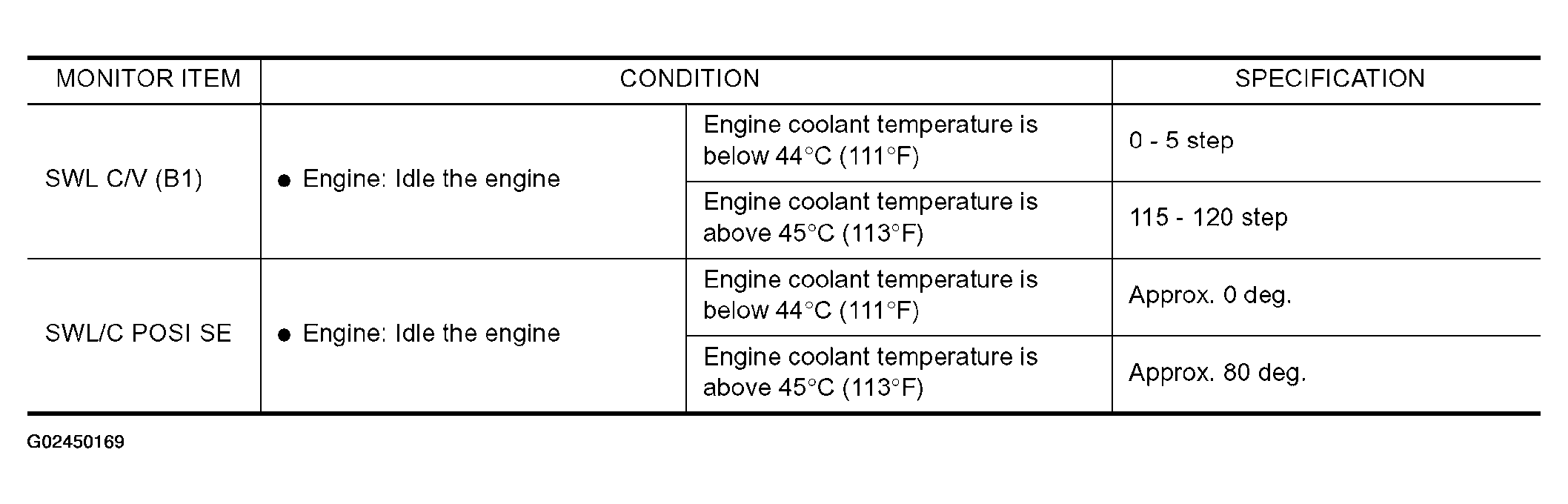

Fig 1: CONSULT-II Reference Value Chart - Swirl Control Valve Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
