CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

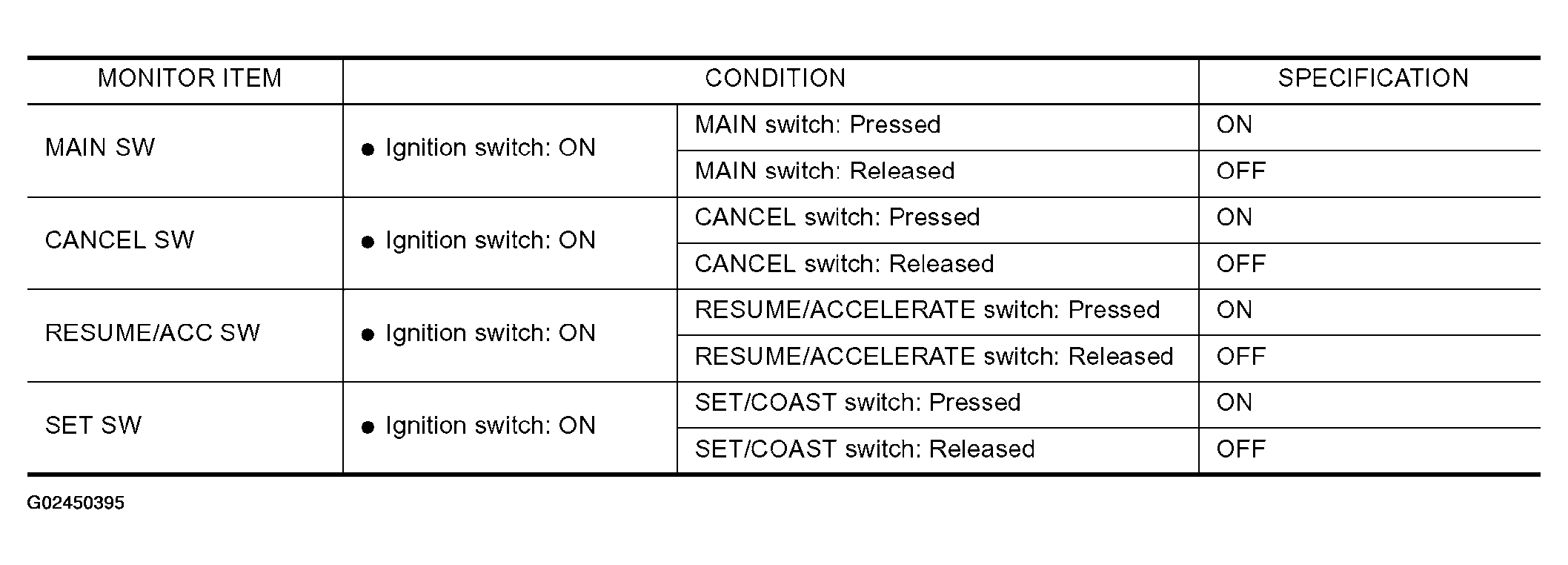

Fig 1: Data Monitor Mode/Condition Specification Chart - ASCD (Cruise Control) Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
