Idle Speed and Ignition Timing

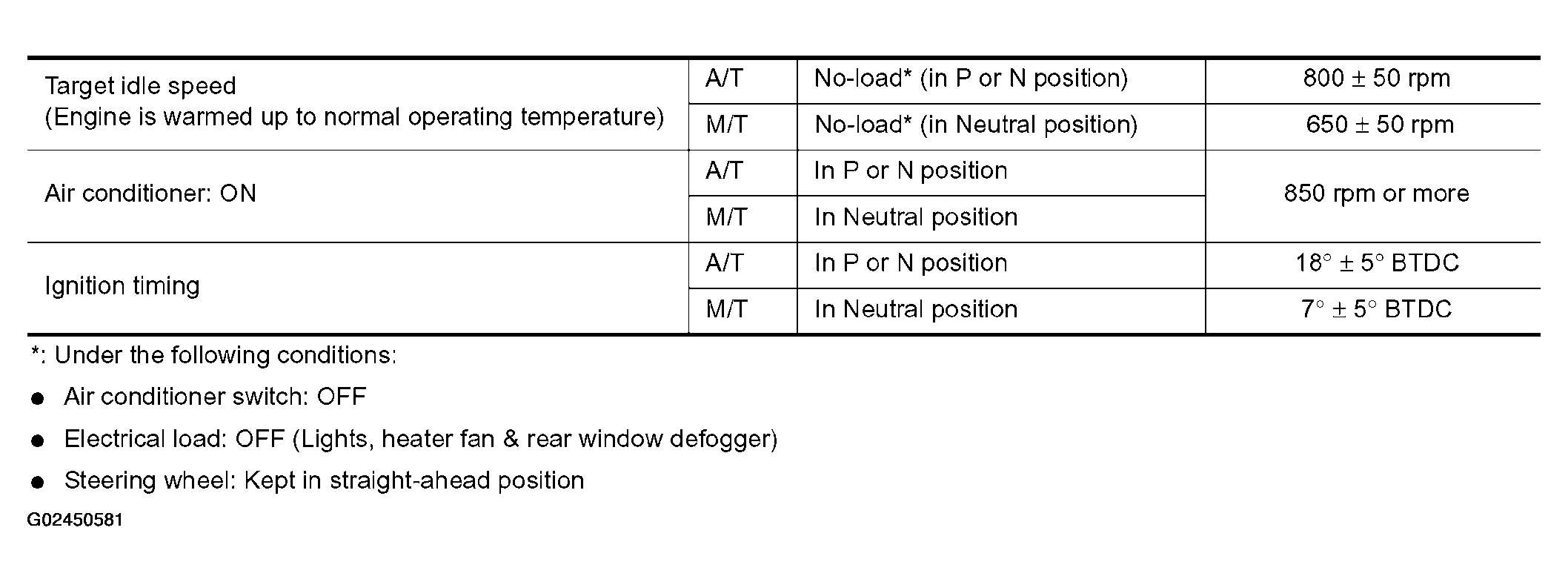

Fig 1: Idle Speed And Ignition Timing Specifications Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

• Air conditioner switch: OFF
• Electrical load: OFF (Lights, heater fan & rear window defogger)
• Steering wheel: Kept in straight-ahead position
