Engine Control System (QG18DE)
›
Trouble Diagnosis
›
Consult-II Function (Engine)
›
Data Monitor Mode
›
Monitored Item
Monitored Item

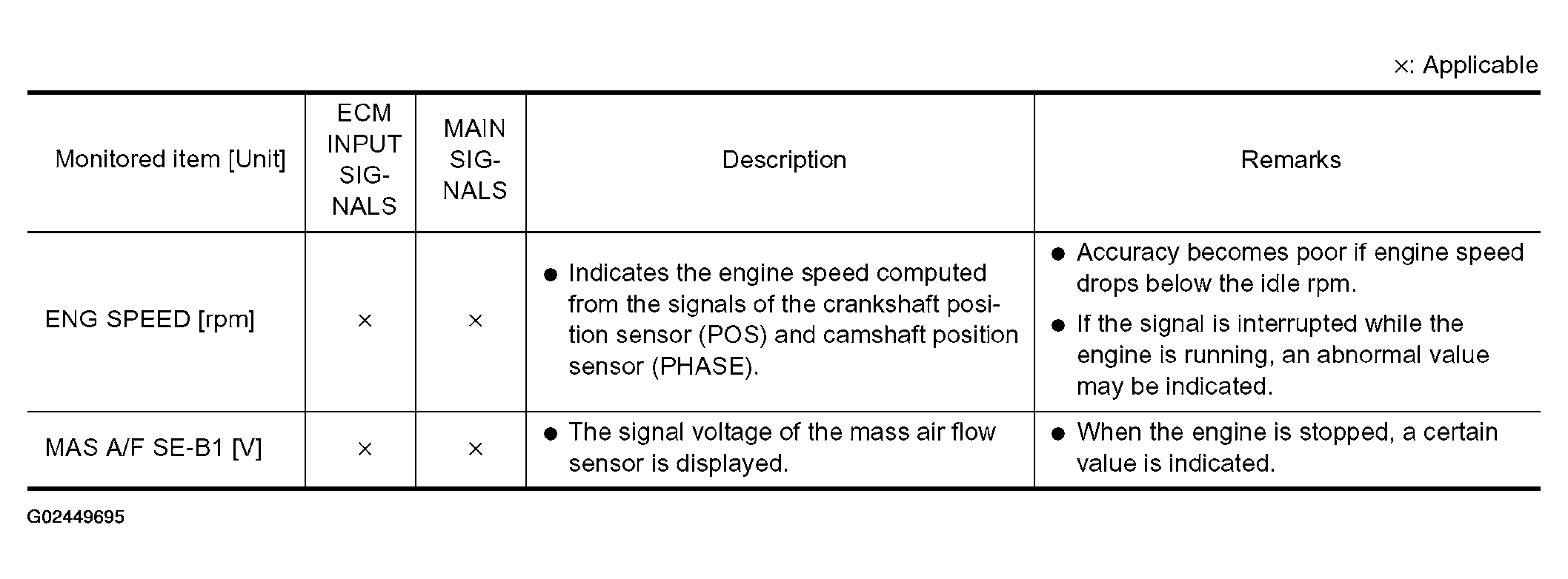

Fig 1: Data Monitor Mode Description Chart (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

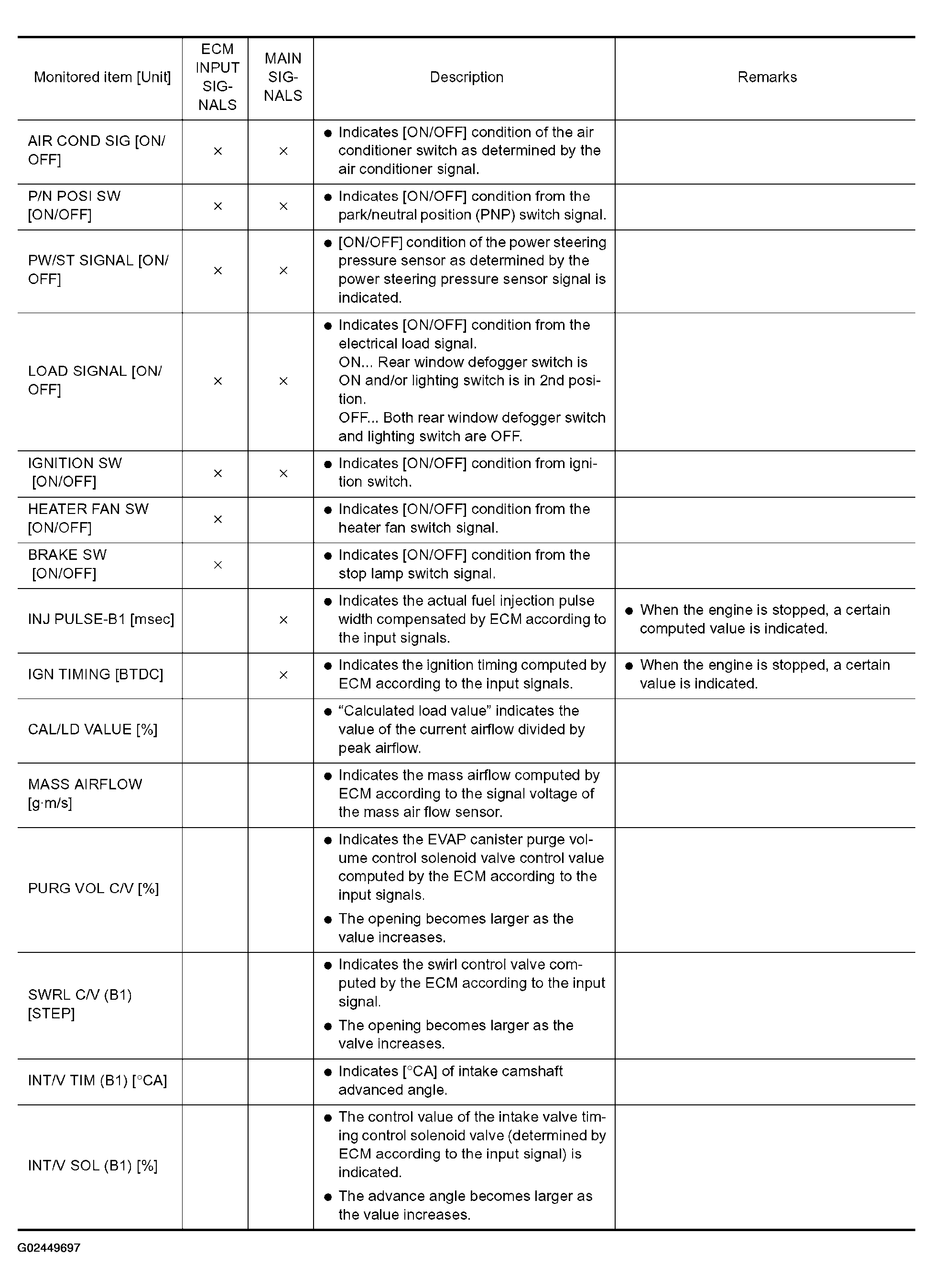

Fig 2: Data Monitor Mode Description Chart (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

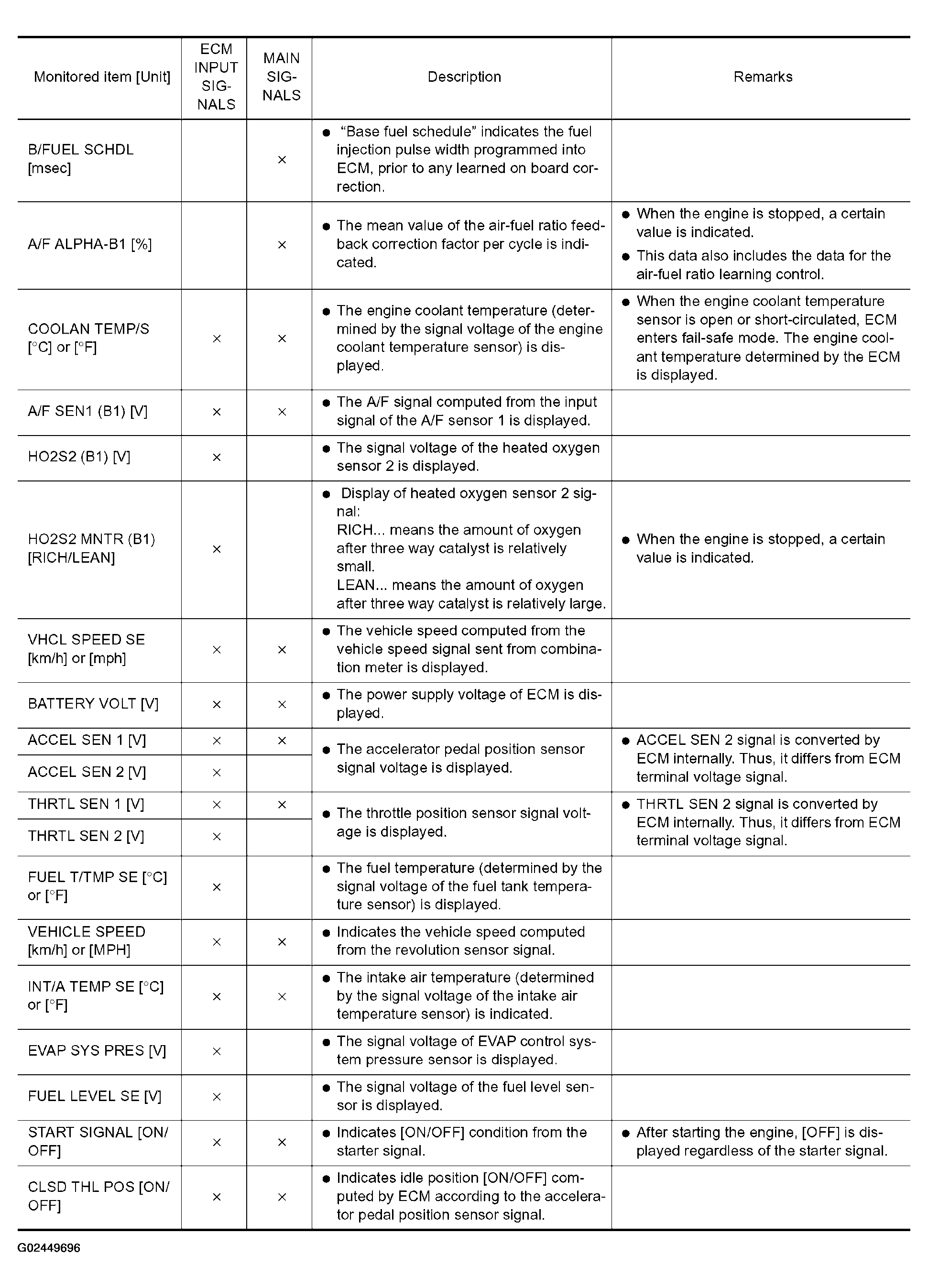

Fig 3: Data Monitor Mode Description Chart (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

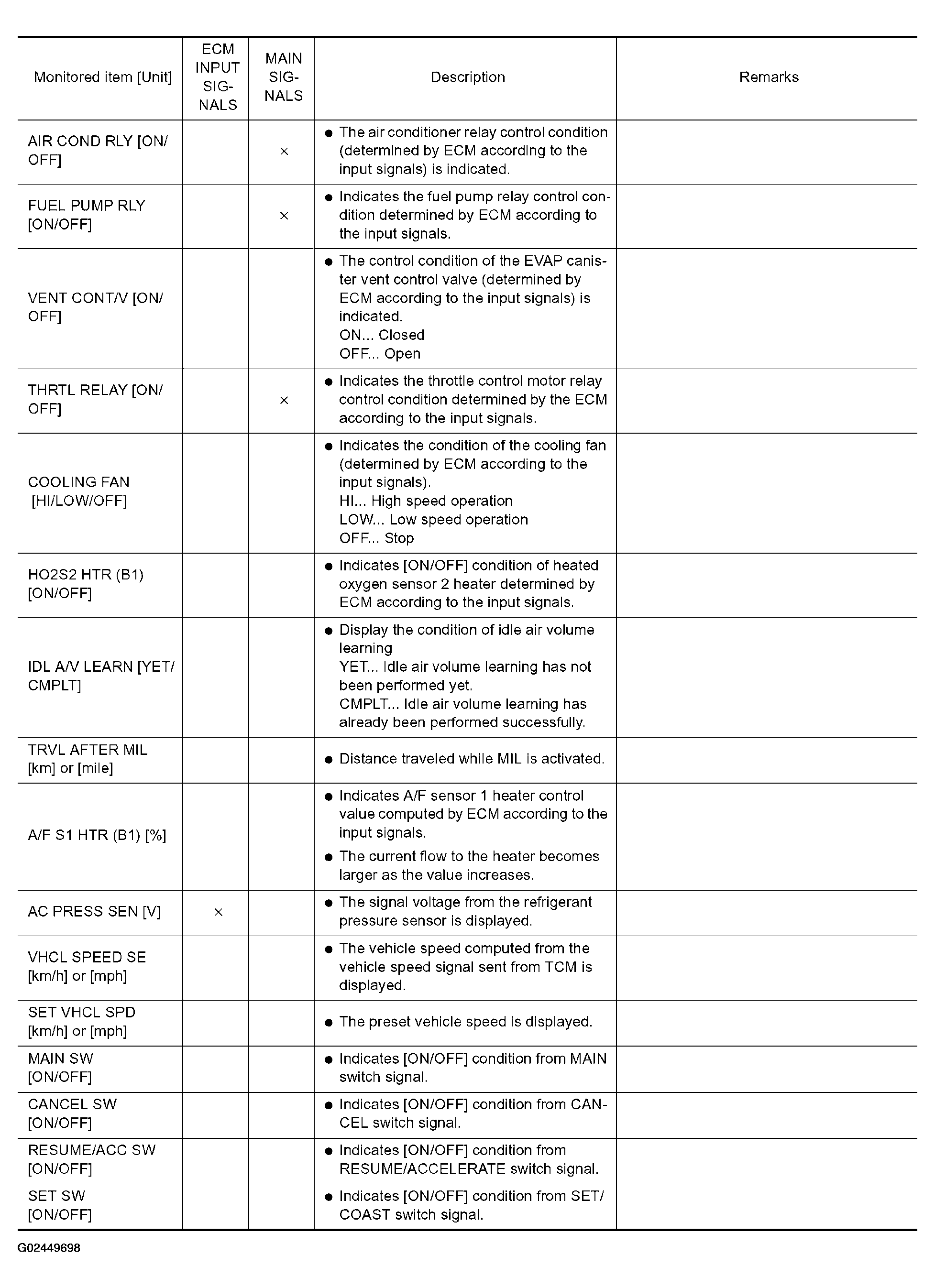

Fig 4: Data Monitor Mode Description Chart (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

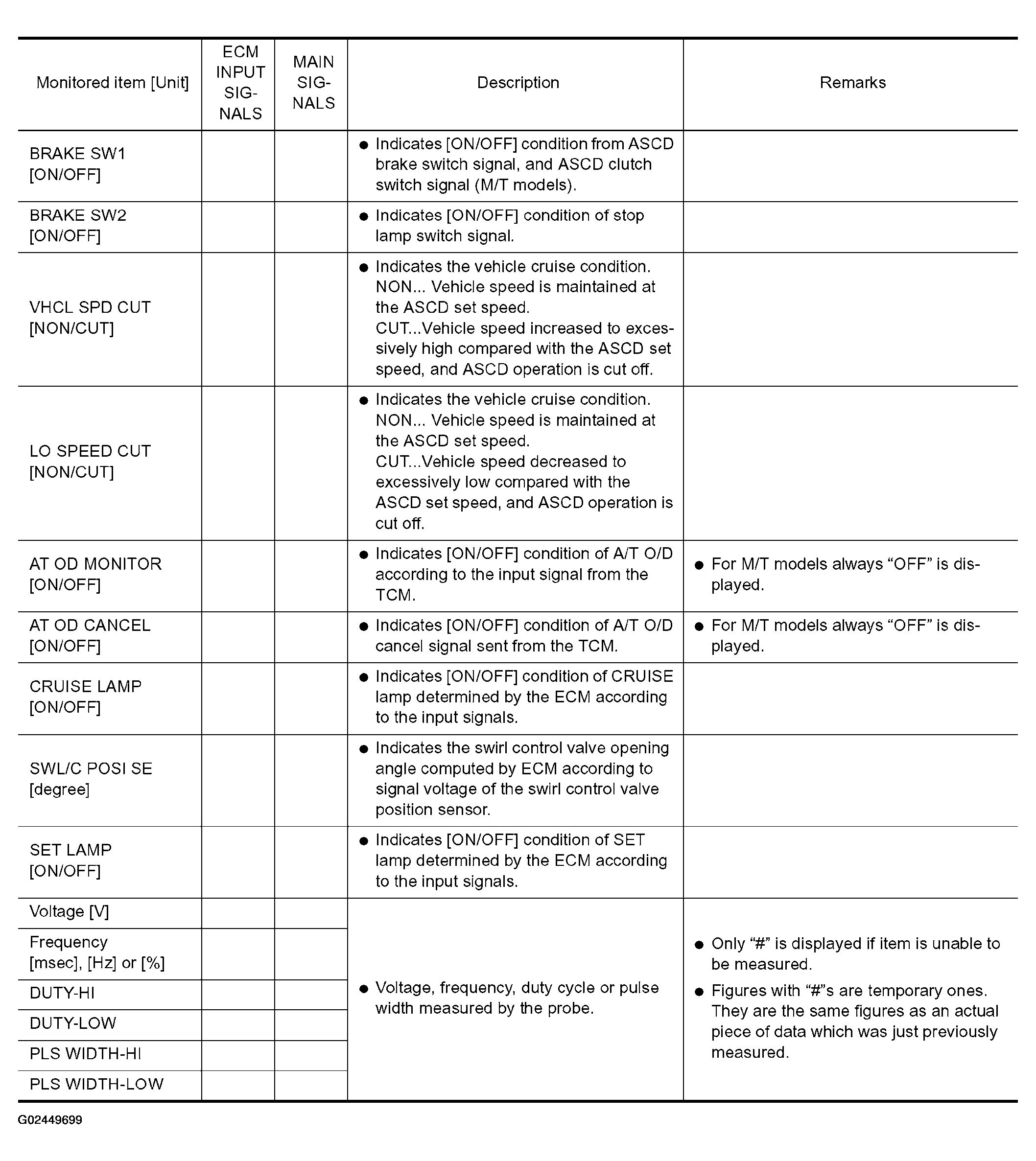

Fig 5: Data Monitor Mode Description Chart (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
