DTC P0172: Fuel Injection System Function
›
Wiring Diagram
DTC P0172: Fuel Injection System Function: Wiring Diagram

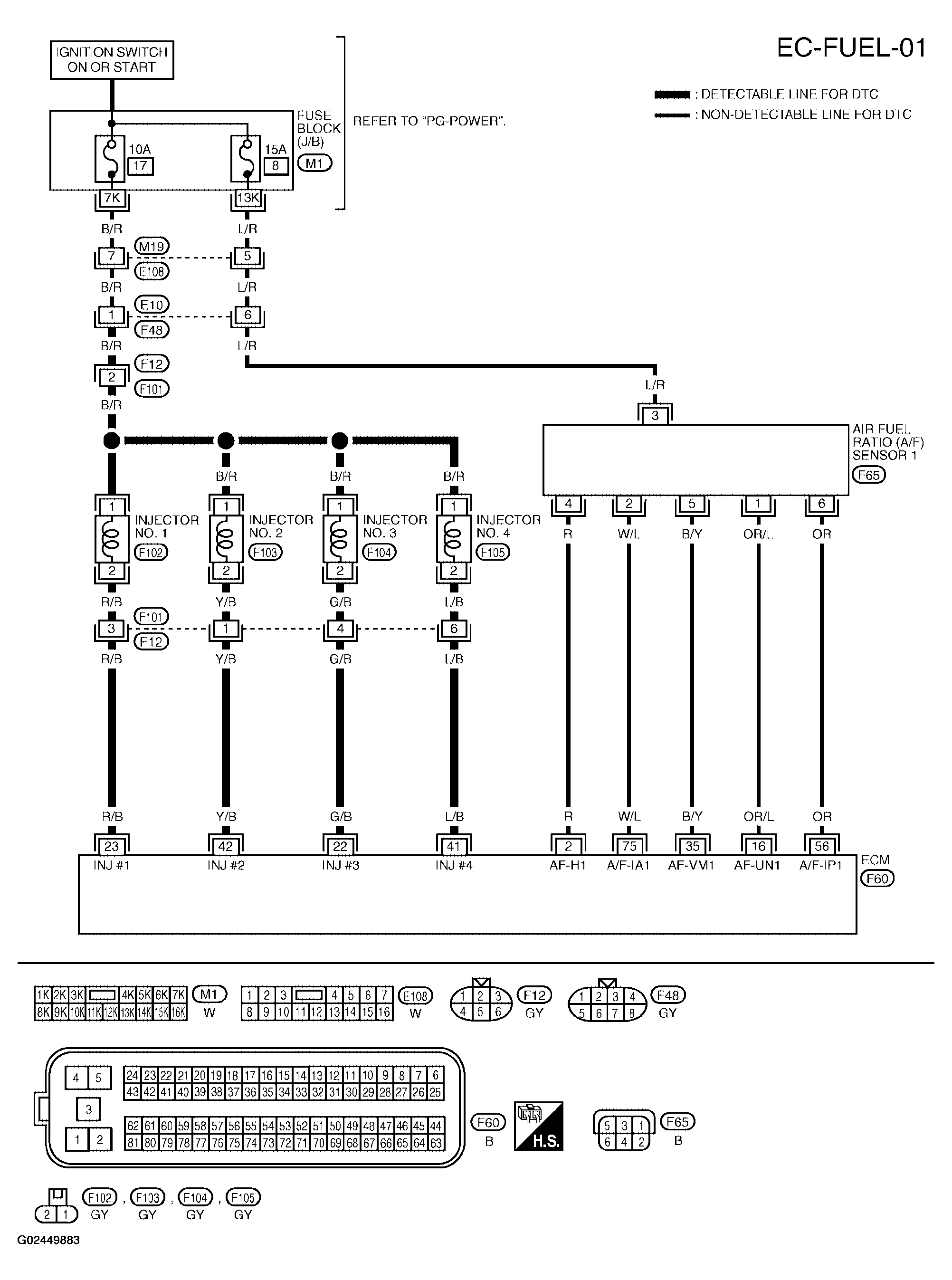

Fig 1: Wiring Diagram - Fuel Injection System Function (EC-FUEL-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
